New

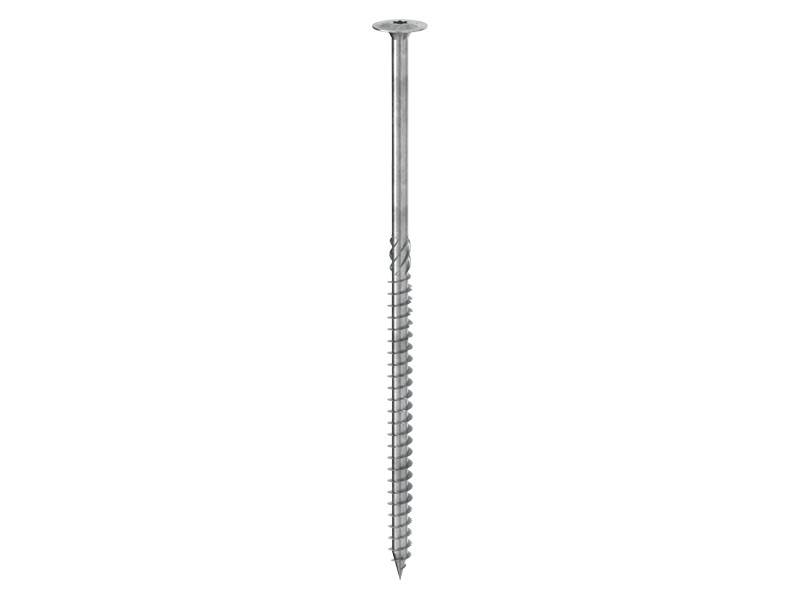

TBS SOFTWOOD
FLANGE HEAD SCREW
Special self-perforating tip with serrated thread (SAW tip) that cuts the timber grains, facilitating initial grip and subsequent pull-through.
The flange head serves as washer and ensures high head strength and pull-through. Ideal in the presence of wind or variations in timber dimensions.
Greater thread length (60%) to ensure superb joint closure and great versatility.
Optimised geometry for maximum performance on the most common construction timbers.
TBS SOFTWOOD
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| TBSS680 | 6 | 80 | TX30 | 100 |
| TBSS6100 | 6 | 100 | TX30 | 100 |
| TBSS6120 | 6 | 120 | TX30 | 100 |
| TBSS6140 | 6 | 140 | TX30 | 100 |
| TBSS6160 | 6 | 160 | TX30 | 100 |
| TBSS8180 | 8 | 180 | TX40 | 50 |
| TBSS8200 | 8 | 200 | TX40 | 50 |
| TBSS8220 | 8 | 220 | TX40 | 50 |
| TBSS8240 | 8 | 240 | TX40 | 50 |
| TBSS8260 | 8 | 260 | TX40 | 50 |
| TBSS8280 | 8 | 280 | TX40 | 50 |
| TBSS8300 | 8 | 300 | TX40 | 50 |
| TBSS8320 | 8 | 320 | TX40 | 50 |
| TBSS8340 | 8 | 340 | TX40 | 50 |
| TBSS8360 | 8 | 360 | TX40 | 50 |
| TBSS8380 | 8 | 380 | TX40 | 50 |
| TBSS8400 | 8 | 400 | TX40 | 50 |
