JIG VGU

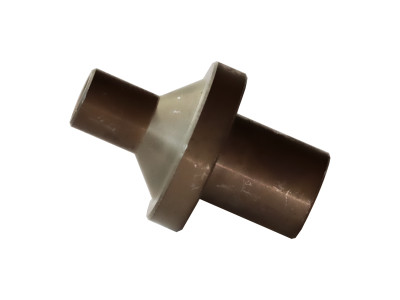

JIG VGU TEMPLATE

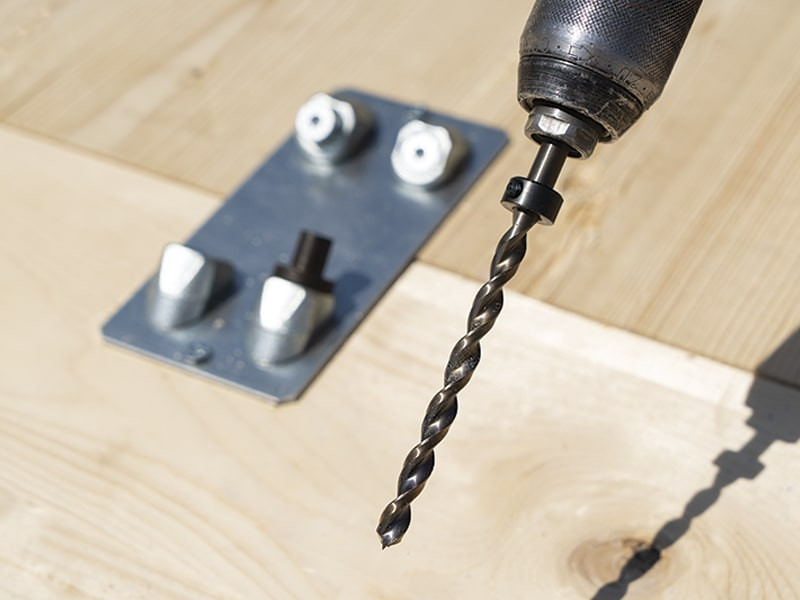

The JIG VGU template is the ideal support for making 45° guide pre-drills which facilitate the screwing process.
Available in different diameters, it is extremely easy to use.

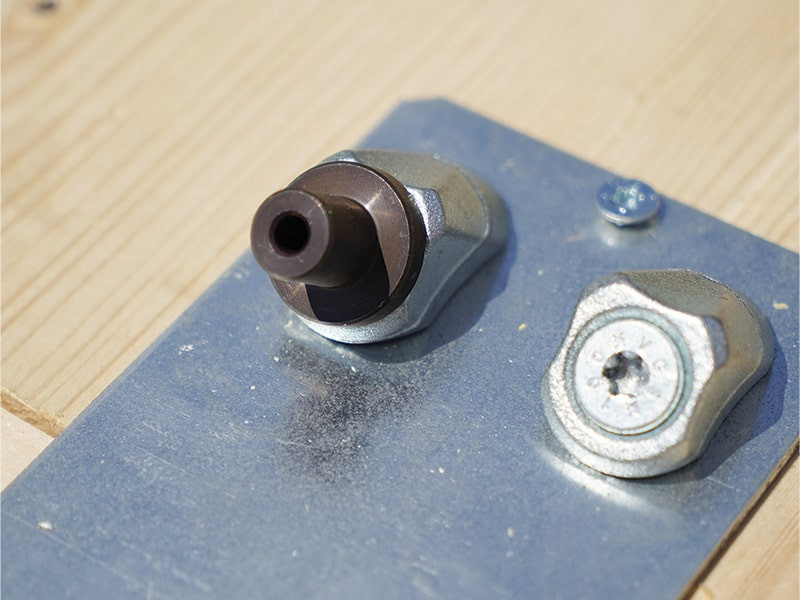

JIG VGU, the template for making precise pre-drills for the VGU washer.
Documents
-
Technical data sheets
JIG VGU
| CODE | version | d
[mm]
|
pcs. |
|---|---|---|---|
| JIGVGU945 | VGU945 | 5 | 1 |
| JIGVGU1145 | VGU1145 | 6 | 1 |
| JIGVGU1345 | VGU1345 | 8 | 1 |
VGU
| CODE | version | pcs. |
|---|---|---|
| VGU945 | for screw VGS Ø9 | 25 |
| VGU1145 | for screw VGS Ø11 | 25 |
| VGU1345 | for screw VGS Ø13 | 25 |
| CODE | d
[mm]
|
pcs. |
|---|---|---|
| F2108005 | 5 | 10 |
| F2108006 | 6 | 10 |
| F2108008 | 8 | 10 |
