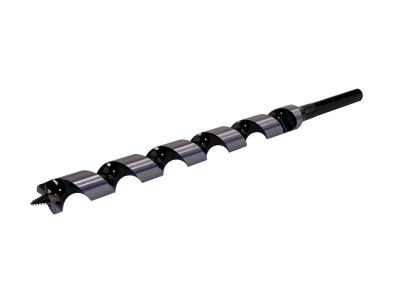

TWIST DRILL BITS FOR DEEP DRILLING IN SOFT AND EUROPEAN HARDWOODS
LEWIS

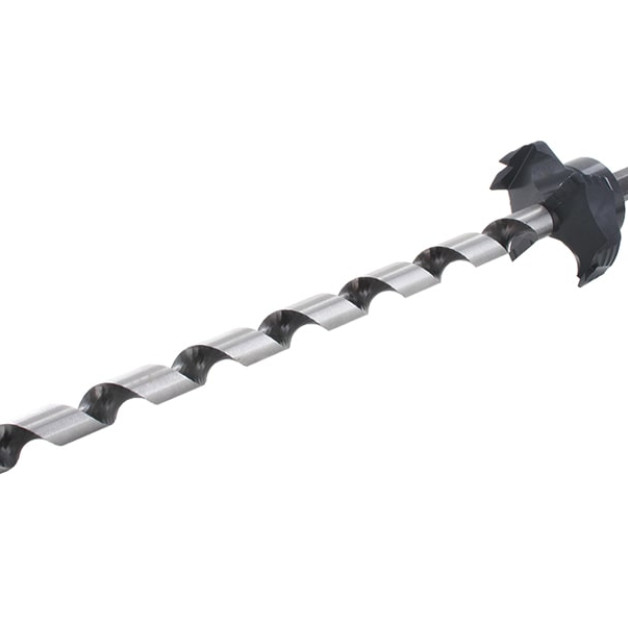

With round-section twist flute, threaded tip, very high quality main cutting edge and roughing tooth.
Version with independent head and hex shank (starting from Ø8 mm). Made of specific alloy steel for tools (WS).
Documents
Technical data sheets
|
|---|
LEWIS
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| F1410205 | 5 | 235 | 1 |
| F1410206 | 6 | 235 | 1 |
| F1410207 | 7 | 235 | 1 |
| F1410208 | 8 | 235 | 1 |
| F1410210 | 10 | 235 | 1 |
| F1410212 | 12 | 235 | 1 |
| F1410214 | 14 | 235 | 1 |
| F1410216 | 16 | 235 | 1 |
| F1410218 | 18 | 235 | 1 |
| F1410220 | 20 | 235 | 1 |
| F1410222 | 22 | 235 | 1 |
| F1410224 | 24 | 235 | 1 |
| F1410228 | 28 | 235 | 1 |
| F1410230 | 30 | 235 | 1 |
| F1410232 | 32 | 235 | 1 |
| F1410305 | 5 | 320 | 1 |
| F1410306 | 6 | 320 | 1 |
| F1410307 | 7 | 320 | 1 |
| F1410308 | 8 | 320 | 1 |
| F1410309 | 9 | 320 | 1 |
| F1410310 | 10 | 320 | 1 |
| F1410312 | 12 | 320 | 1 |
| F1410314 | 14 | 320 | 1 |
| F1410316 | 16 | 320 | 1 |
| F1410318 | 18 | 320 | 1 |
| F1410320 | 20 | 320 | 1 |
| F1410322 | 22 | 320 | 1 |
| F1410324 | 24 | 320 | 1 |
| F1410326 | 26 | 320 | 1 |
| F1410328 | 28 | 320 | 1 |
| F1410330 | 30 | 320 | 1 |
| F1410332 | 32 | 320 | 1 |
| F1410407 | 7 | 460 | 1 |
| F1410408 | 8 | 460 | 1 |
| F1410410 | 10 | 460 | 1 |
| F1410412 | 12 | 460 | 1 |
| F1410414 | 14 | 460 | 1 |
| F1410416 | 16 | 460 | 1 |
| F1410418 | 18 | 460 | 1 |
| F1410420 | 20 | 460 | 1 |
| F1410422 | 22 | 460 | 1 |
| F1410424 | 24 | 460 | 1 |
| F1410426 | 26 | 460 | 1 |
| F1410428 | 28 | 460 | 1 |
| F1410430 | 30 | 460 | 1 |
| F1410432 | 32 | 460 | 1 |
| F1410440 | 40 | 460 | 1 |
| F1410450 | 50 | 460 | 1 |
| F1410612 | 12 | 650 | 1 |
| F1410614 | 14 | 650 | 1 |
| F1410616 | 16 | 650 | 1 |
| F1410618 | 18 | 650 | 1 |
| F1410620 | 20 | 650 | 1 |
| F1410622 | 22 | 650 | 1 |
| F1410624 | 24 | 650 | 1 |
| F1410626 | 26 | 650 | 1 |
| F1410628 | 28 | 650 | 1 |
| F1410630 | 30 | 650 | 1 |
| F1410632 | 32 | 650 | 1 |
| F1410014 | 14 | 1080 | 1 |
| F1410016 | 16 | 1080 | 1 |
| F1410018 | 18 | 1080 | 1 |
| F1410020 | 20 | 1080 | 1 |
| F1410022 | 22 | 1080 | 1 |
| F1410024 | 24 | 1080 | 1 |
| F1410026 | 26 | 1080 | 1 |
| F1410028 | 28 | 1080 | 1 |
| F1410030 | 30 | 1080 | 1 |
| F1410032 | 32 | 1080 | 1 |
| F1410134 | 34 | 1000 | 1 |
| F1410136 | 36 | 1000 | 1 |
| F1410138 | 38 | 1000 | 1 |
| F1410140 | 40 | 1000 | 1 |
| F1410145 | 45 | 1000 | 1 |
| F1410150 | 50 | 1000 | 1 |

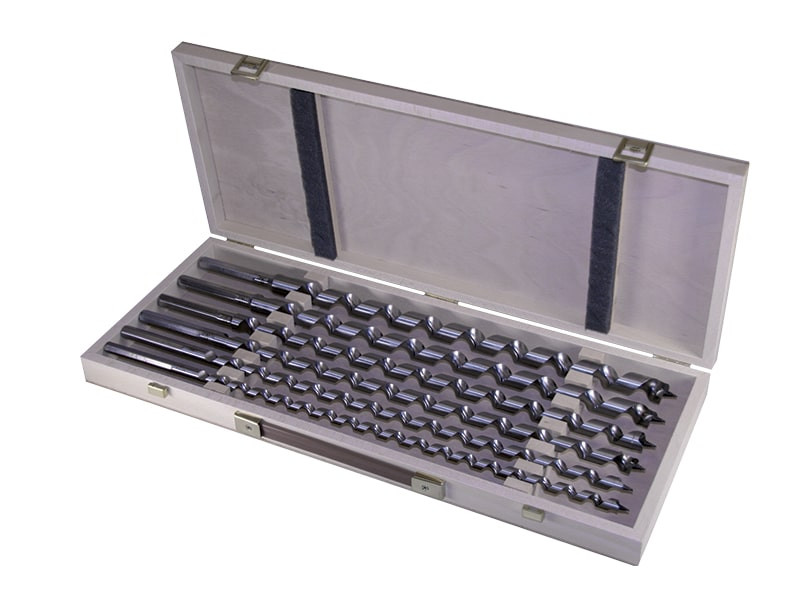

LEWIS-SET
| CODE | version | L
[mm]
|
pcs. |
|---|---|---|---|
| F1410200 | Ø6, 8, 10, 12, 14, 16, 18, 20 mm | 235 | 1 |
| F1410303 | Ø10, 12, 14, 16, 18, 20, 22, 24 mm | 320 | 1 |
| F1410403 | Ø10, 12, 14, 16, 18, 20, 22, 24 mm | 460 | 1 |
LEWIS-LONG
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| F14132200 | 13 | 2280 | 1 |
| F14162200 | 16 | 2280 | 1 |
