ASSEMBLY SUPPORT
GIRAFFE

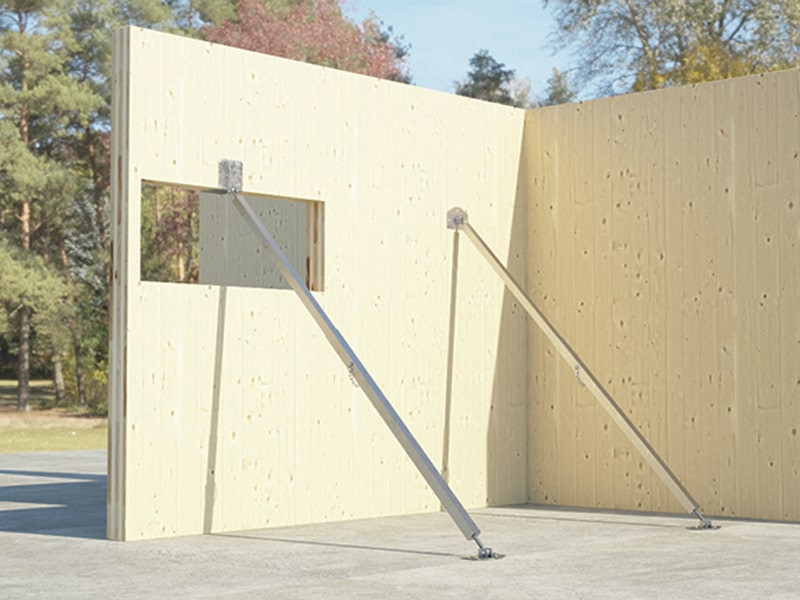

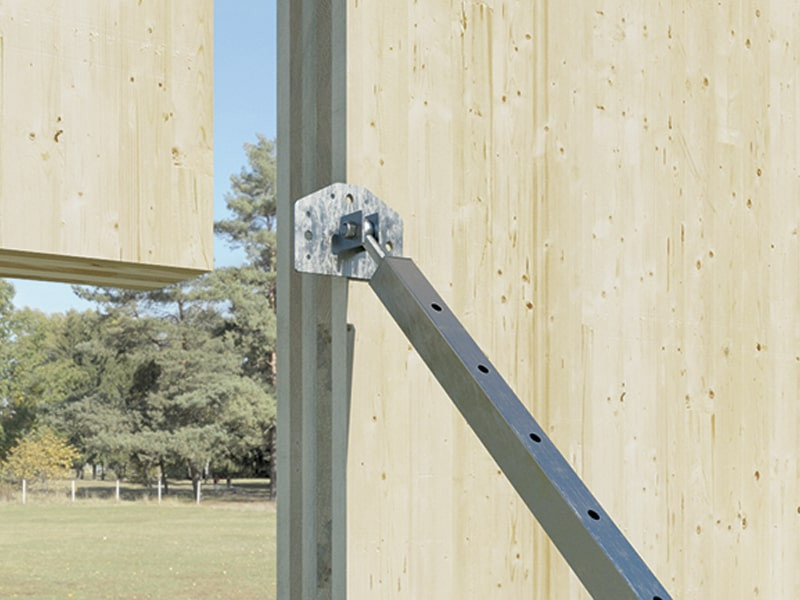

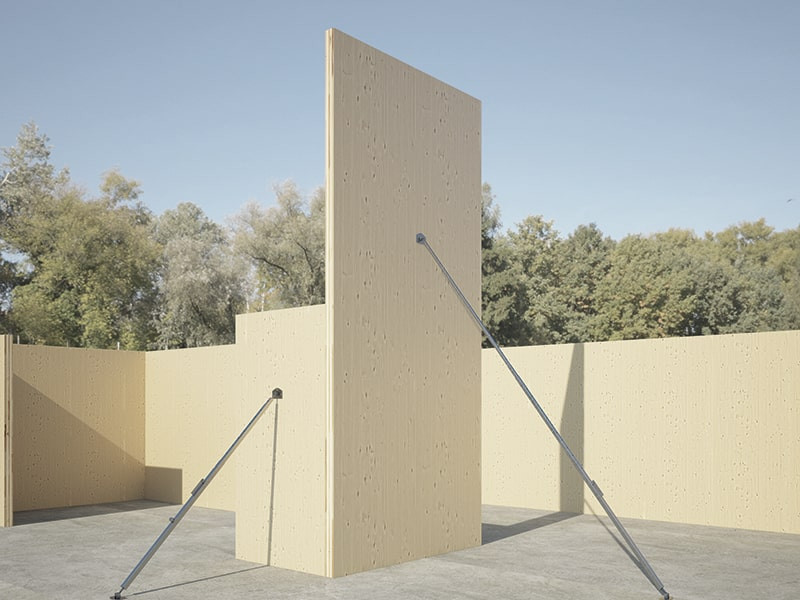

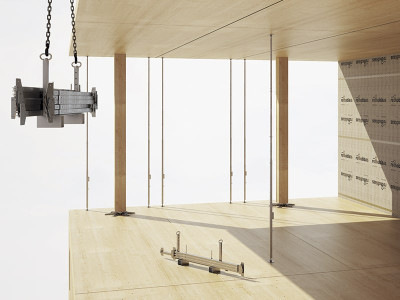

The GIRAFFE wall and ceiling assembly support offers practical temporary support when assembling timber elements.
Videos

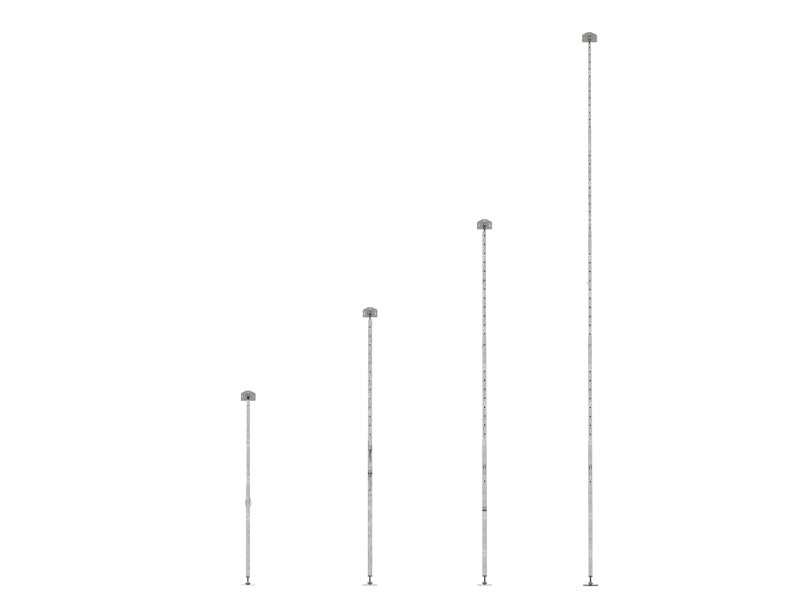

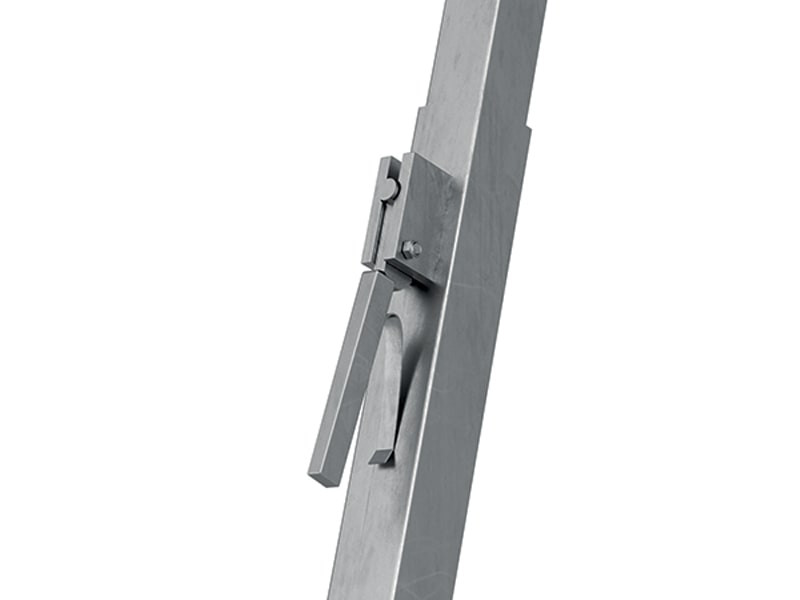

GIRAFFE is available in 4 versions with different lengths from 220 to 600 cm, to guarantee support even for elements that extend up to two storeys. GIR3000 (equipped with automatic stop, for even faster and more precise adjustment) and GIR4000 are made of zinc plated steel; GIR2200 and GIR6000 in extruded aluminium.
Thanks to the GIRHOLDER transport element, up to 10 assembly supports can be easily and neatly packed and transported. GIRAFFE , the assembly support for timber elements that extends from 2,20 to 6,0 metres.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
Certificates
|
|
File CAD
|
GIRAFFE
| CODE | description | L
[mm]
|
pcs. |
|---|---|---|---|
| GIR2200 | GIRAFFE ASSEMBLY SUPPORT 2,2m | 2200 | 1 |
| GIR3000 | GIRAFFE ASSEMBLY SUPPORT 3,0m | 3000 | 1 |
| GIR4000 | GIRAFFE ASSEMBLY SUPPORT 4,0m | 4000 | 1 |
| GIR6000 | GIRAFFE ASSEMBLY SUPPORT 6,0m | 6000 | 1 |
| RENTGIR3000 | RENTABLE VERSION | 3000 | 1 |
| RENTGIR6000 | RENTABLE VERSION | 6000 | 1 |
| CODE | description | pcs. |
|---|---|---|

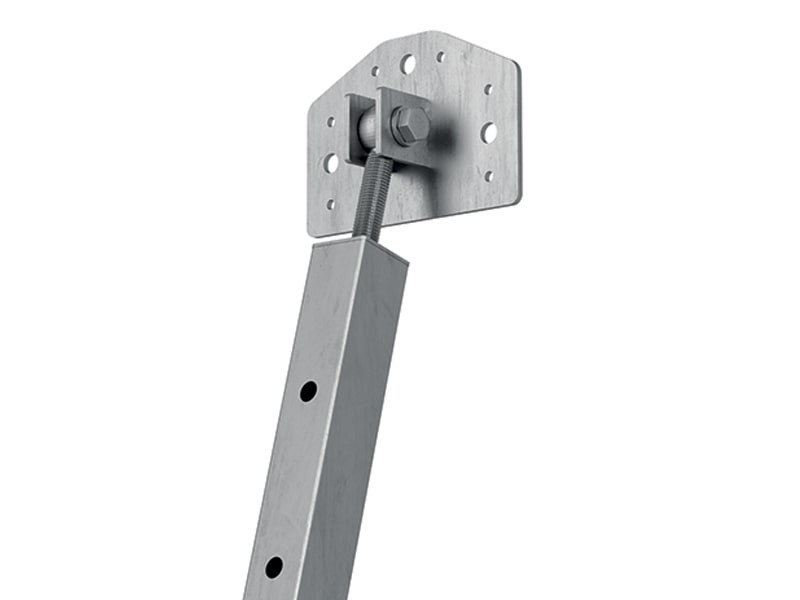

| GIRPLATE | SMALL SPARE PLATE | 1 |
| GIRPLATEL | LARGE SPARE PLATE | 1 |
| GIRHOLDER | TRANSPORT ELEMENT | 1 |
Related products
-
HBS PLATE
PAN HEAD SCREW FOR PLATES
-

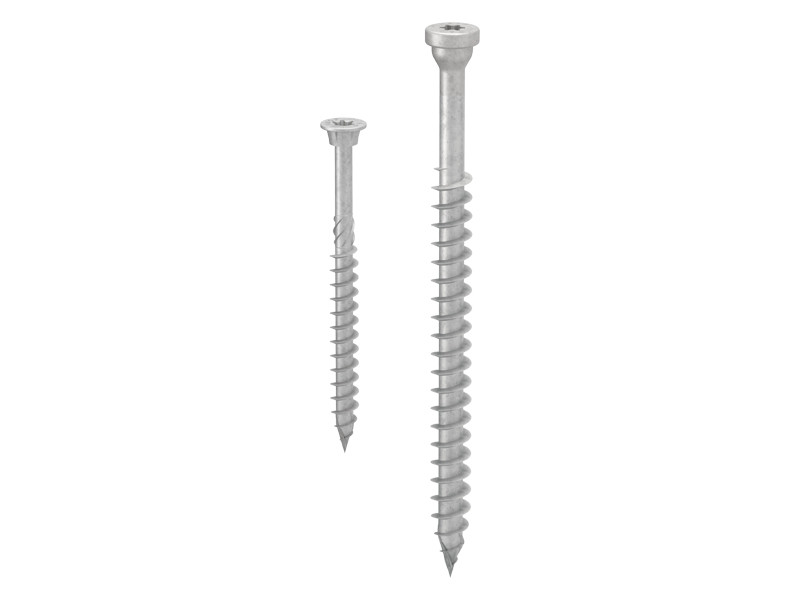

HBS PLATE EVO
PAN HEAD SCREW
-

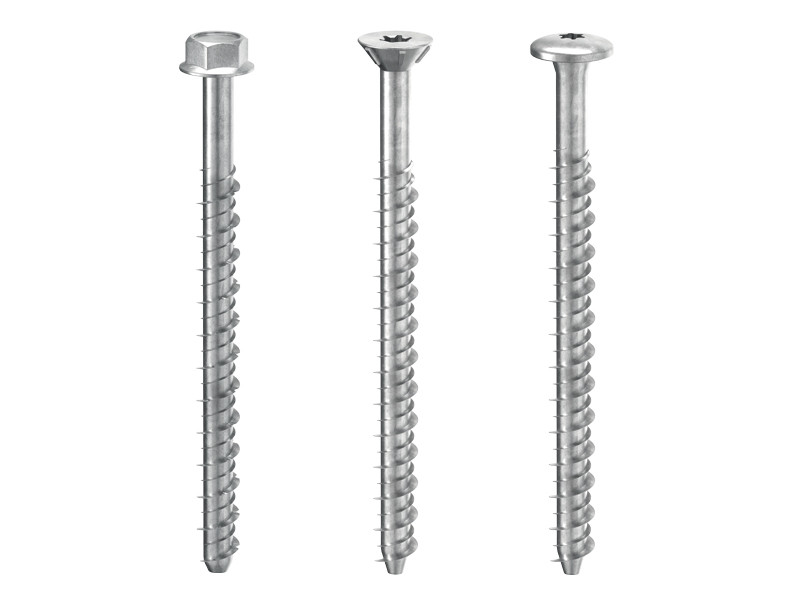

SKR | SKS | SKP
SCREW ANCHOR FOR CONCRETE
-

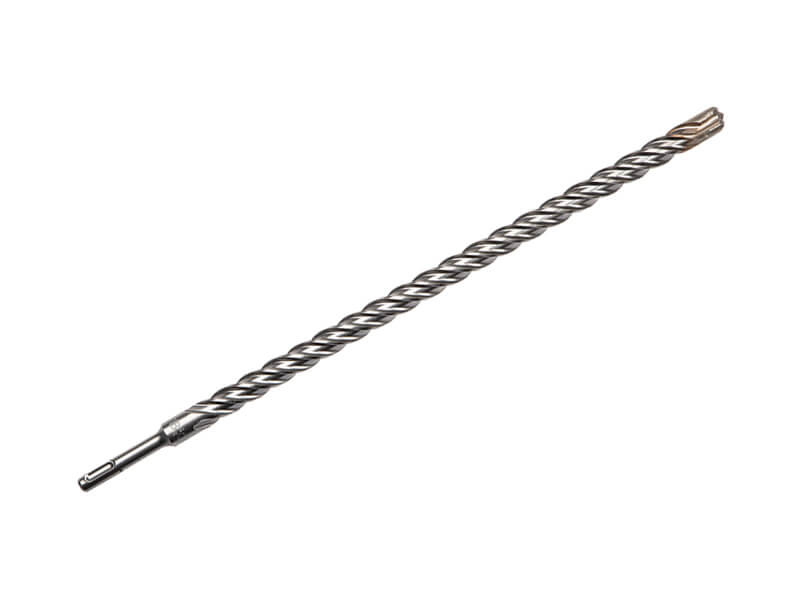

SNAIL PULSE
CARBIDE DRILL BIT IN HM WITH SDS DRILL CHUCK SHANK
-

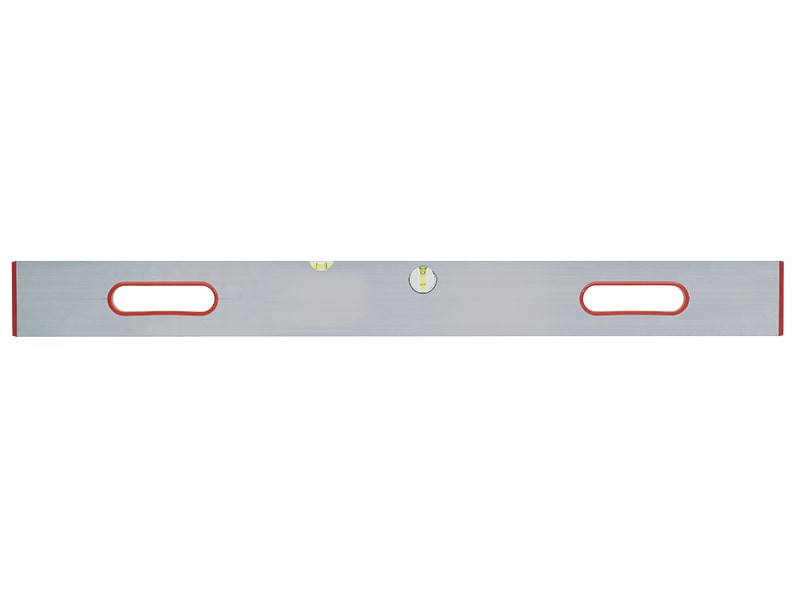

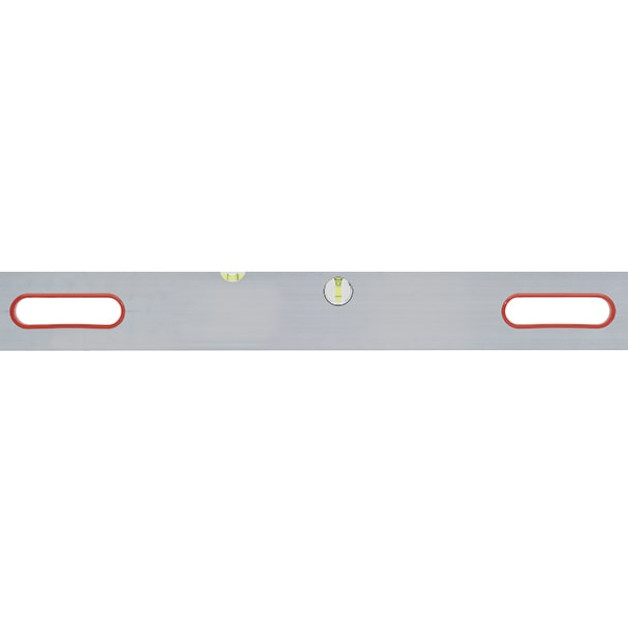

HERON XL
HORIZONTAL AND VERTICAL PRECISION SPIRIT LEVEL
-

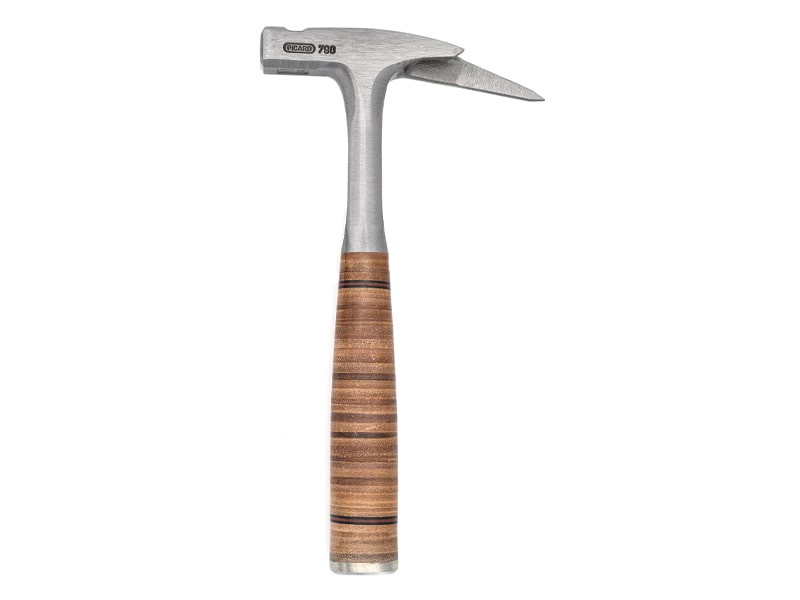

PICARD 790
PROFESSIONAL HAMMER
-

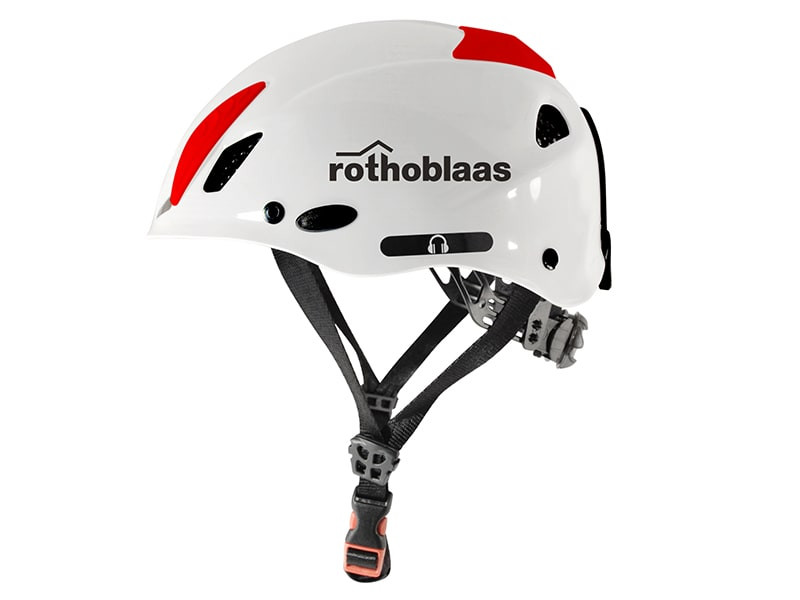

PROTECTOR
