SELF-DRILLING TIMBER-METAL SCREW
SBS A2 | AISI304

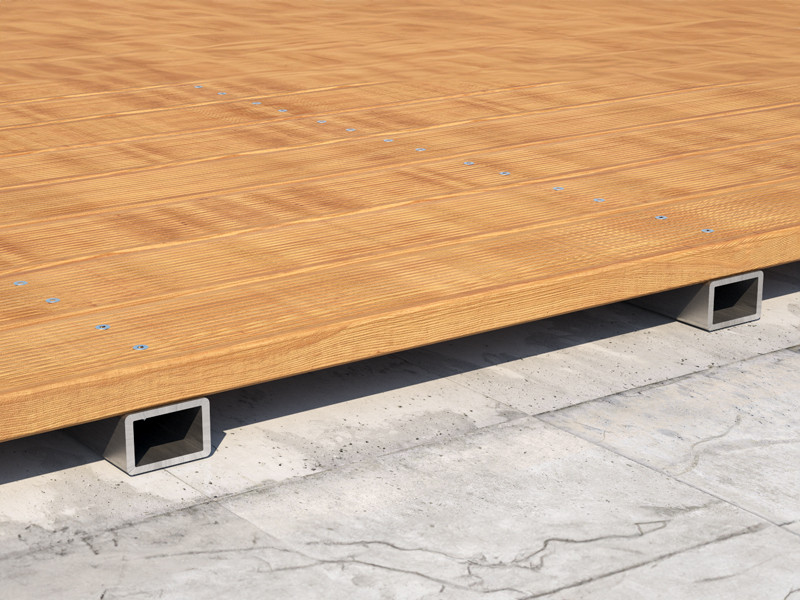

The SBS A2 | AISI304 wood screw is ideal for direct fastening, without pre-drilling, of wooden elements to steel (maximum thickness 6.0 mm) or aluminium (maximum thickness 8,0 mm) substructures in outdoor environments.
SBS A2 | AISI304 wood screws: great metal perforating capacity and excellent corrosion resistance.

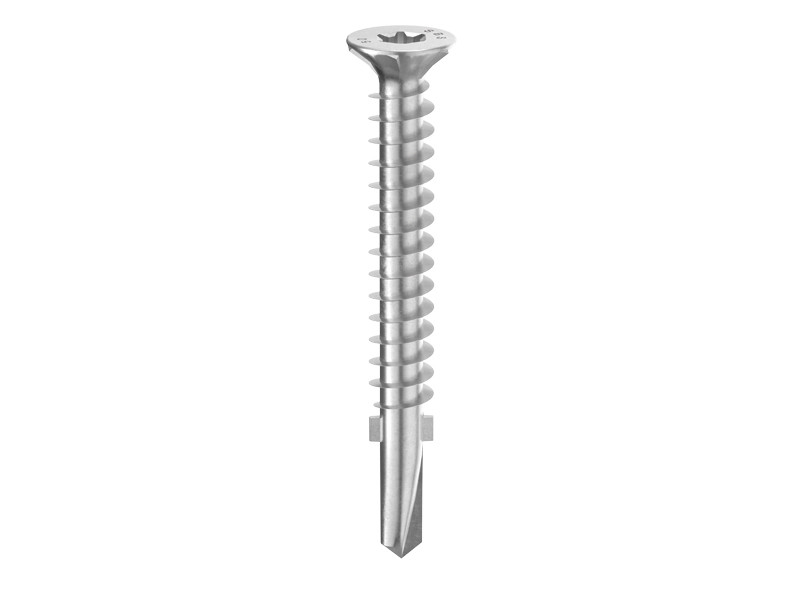

SBS A2 | AISI304 is a bimetal wood screw.
The head and body are made of A2 | AISI304 stainless steel, providing high corrosion resistance. The tip is made of carbon steel, for excellent drilling performance.
The special self-perforating tip with bleeder geometry ensures excellent drilling capacity both in aluminium and in steel, while the fins protect the screw thread during penetration into the wood.
The sharp under-head ribs guarantee a perfect surface finish on the wooden element.

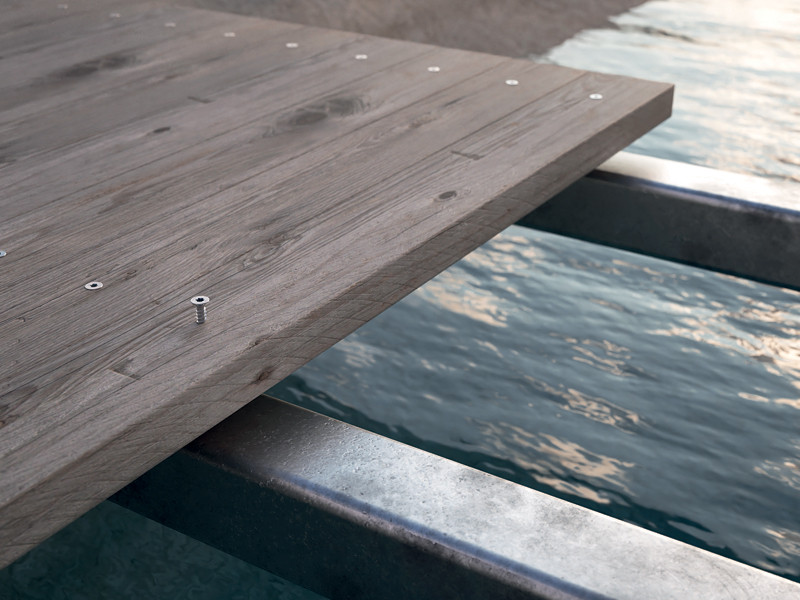

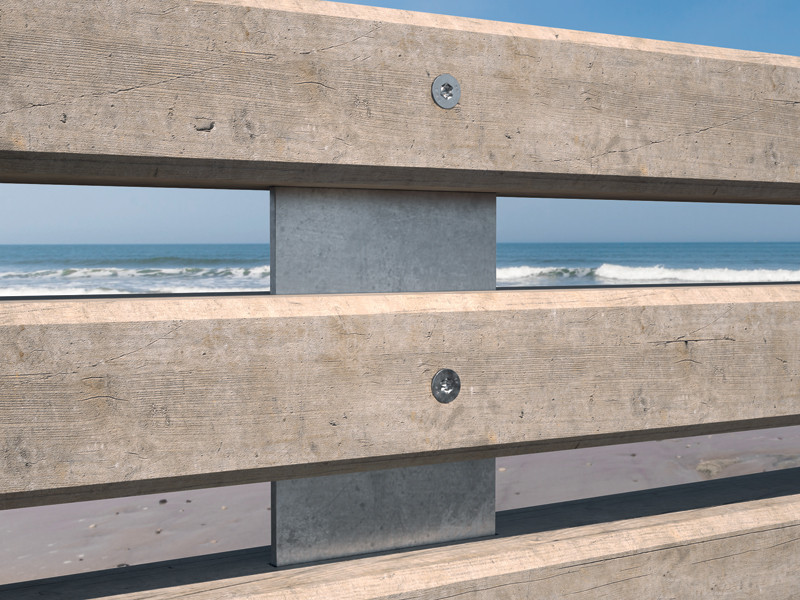

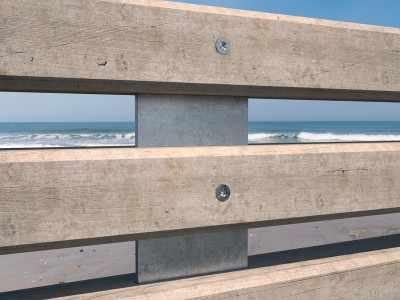

SBS A2 | AISI304 is ideal for outdoor applications, thanks to the A2 | AISI304 stainless steel head and body.
Suitable for service classes 1, 2 and 3.
Features
| FOCUS | self-perforating tip with protective fins |
|---|---|
| HEAD | countersunk with under-head ribs |
| DIAMETER | from 4,8 mm to 6,3 mm |
| LENGTH | from 45 mm to 120 mm |
Documents
Technical data sheets
|
|
|---|---|
File CAD
|
SBS A2 | AISI304
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| SBSA24845 | 4.8 | 45 | TX25 | 200 |
| SBSA25555 | 5.5 | 55 | TX25 | 200 |
| SBSA26370 | 6.3 | 70 | TX30 | 100 |
| SBSA263120 | 6.3 | 120 | TX30 | 100 |
