FULLY THREADED SCREW FOR HARDWOODS
VGZ HARDWOOD
VGZ HARDWOOD is the hardwood screw featuring a special tip with diamond geometry and notched, serrated thread.

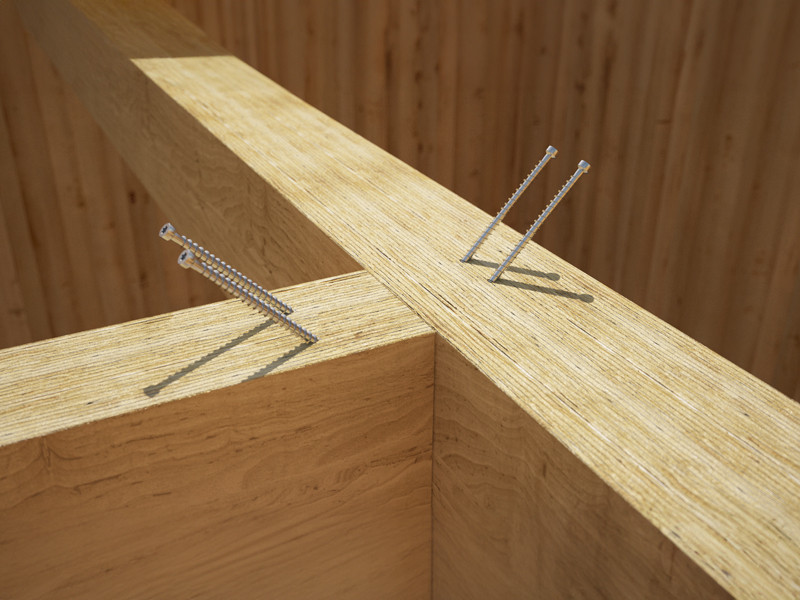

It is certified for use with high-density hard woods without pre-drilling, and it is ideal for concealed joints, timber couplings and structural reinforcements.
VGZ HARDWOOD wood screws: even if the going gets tough, proceed without pre-drilling.
The VGZ HARDWOOD wood screw is ETA 11/0030 certified for use with high-density woods without pre-drilling.
Approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°), it features excellent tensile performance, thanks to a deep thread and a high-strength steel (fy,k = 1000 N/mm2).
VGZ HARDWOOD guarantees fire protection and earthquake suitability. Values are also tested, certified and calculated for high-density woods such as beechwood Microllam® LVL. Certified for use without pre-drilling, for densities of up to 780 kg/m3.

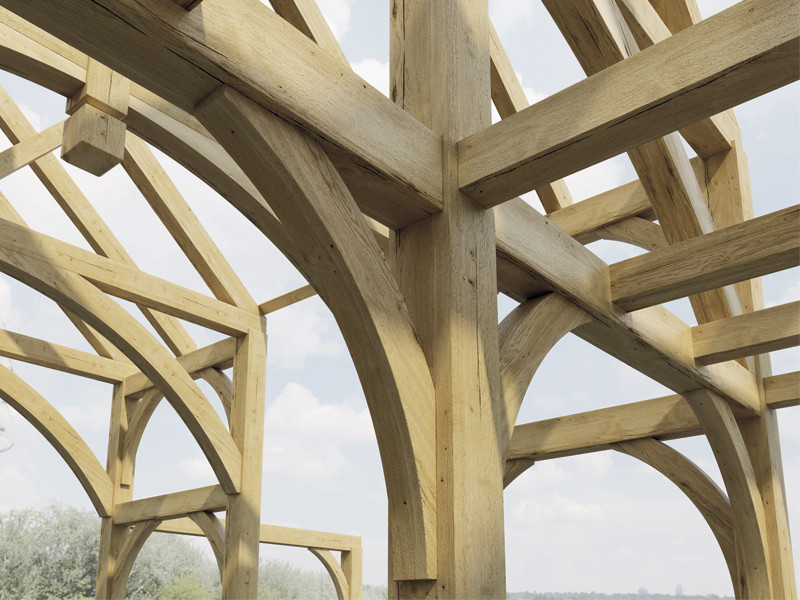

Also tested on structural woods such as beech, cypress, eucalyptus, bamboo.
Made of carbon steel with bright zinc plated, it is excellent for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods, beechwood, cypress, eucalyptus and bamboo. Service classes 1 and 2.
Features
FOCUS | fastener for hardwood |
---|---|
HEAD | cylindrical, countersunk |
DIAMETER | 6,0 | 8,0 mm |
LENGTH | from 140 mm to 320 mm |
Documents
Technical data sheets
|
|
---|---|
ETA Certificate
|
|
Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
VGZ HARDWOOD
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
VGZH6140 | 6 | 140 | TX30 | 25 |
VGZH6180 | 6 | 180 | TX30 | 25 |
VGZH6220 | 6 | 220 | TX30 | 25 |
VGZH6260 | 6 | 260 | TX30 | 25 |
VGZH6280 | 6 | 280 | TX30 | 25 |
VGZH8200 | 8 | 200 | TX40 | 25 |
VGZH8240 | 8 | 240 | TX40 | 25 |
VGZH8280 | 8 | 280 | TX40 | 25 |
VGZH8320 | 8 | 320 | TX40 | 25 |
VGZH8360 | 8 | 360 | TX40 | 25 |
VGZH8400 | 8 | 400 | TX40 | 25 |
