VGU

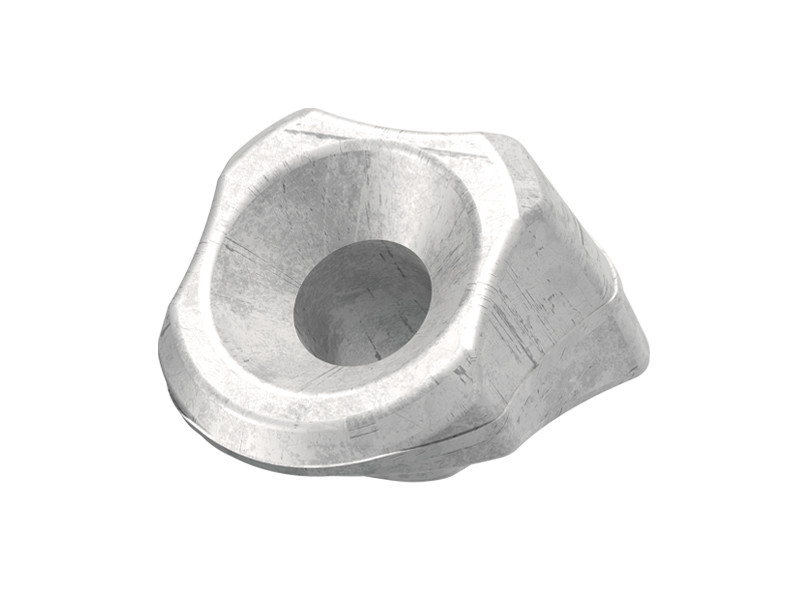

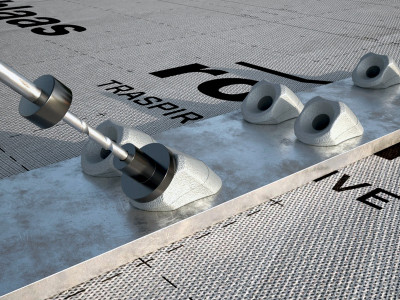

VGU is the washer that makes it possible to install VGS wood screws at a 45° angle on steel plates.
The ergonomic shape ensures a firm, precise grip during installation.
Available in 3 versions compatible with VGS Ø9, Ø11 and Ø13 mm, for plates of variable thickness.
Description
VGU, the 45° washer for the correct installation of VGS wood screws.
The VGU washer is CE marked according to ETA 11/0030.

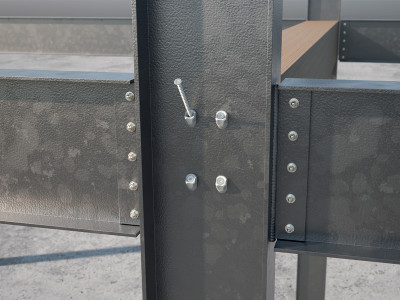

Using VGU washers with VGS wood screws at a 45° angle on steel plates restores resistance to sliding.

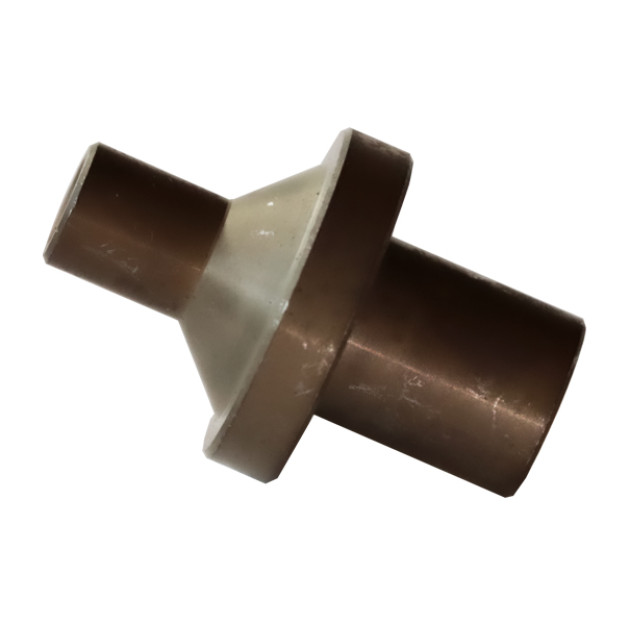

Also available is the JIG VGU template, which makes it easy to prepare a 45° angle pre-drill, facilitating subsequent tightening of the VGS wood screws inside the washer. The recommended pre-drill length is at least 20 mm.
The VGU washer is made of carbon steel with bright zinc plated, it is ideal for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.
VGU
| CODE | version | pcs. |
|---|---|---|
| VGU945 | for screw VGS Ø9 | 25 |
| VGU1145 | for screw VGS Ø11 | 25 |
| VGU1345 | for screw VGS Ø13 | 25 |
