SELF-DRILLING DOWEL
SBD
SBD is the self-drilling system for hidden timber-steel and timber-aluminium joints.

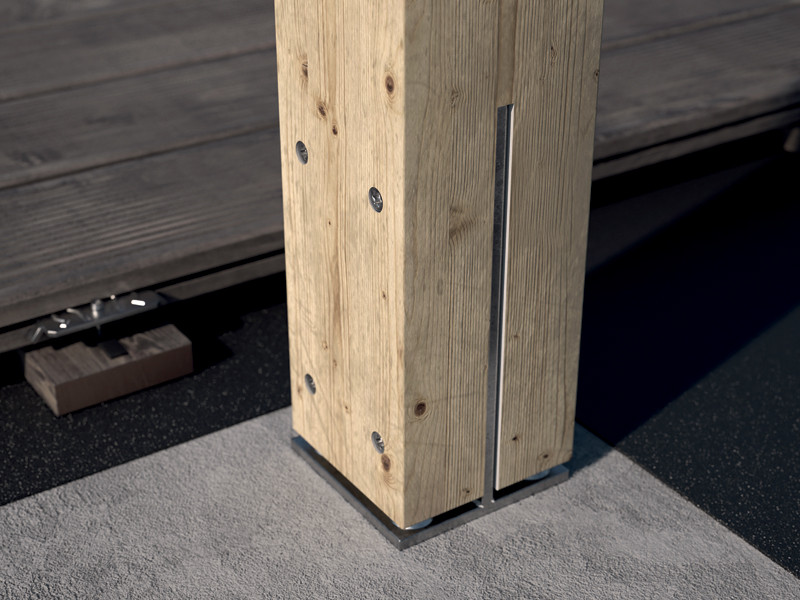

The concealed cylindrical head ensures optimal appearance and fire protection.

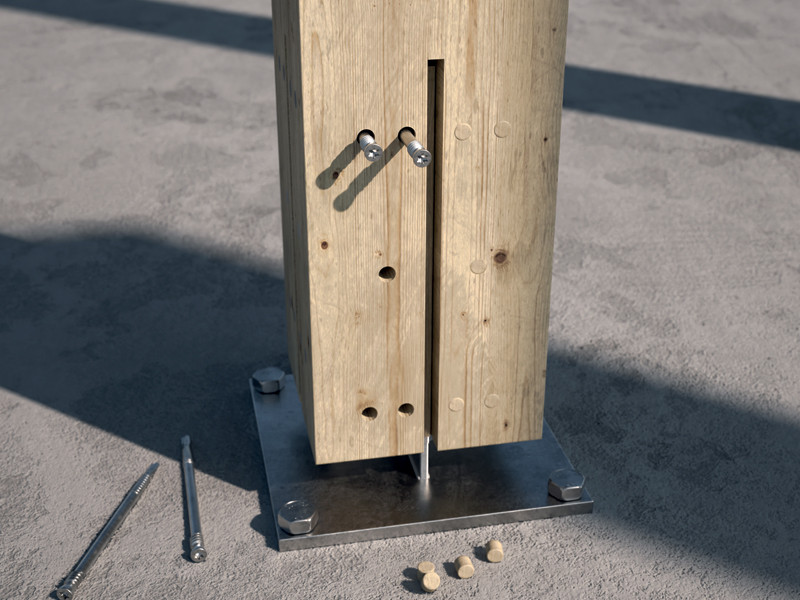

Certified, tested and calculated also for fastening standard Rothoblaas plates such as the TYP X or F70 pillar-holders.
Videos
Discover the effectiveness of SBD, the self-drilling dowel for concealed timber-metal joints.

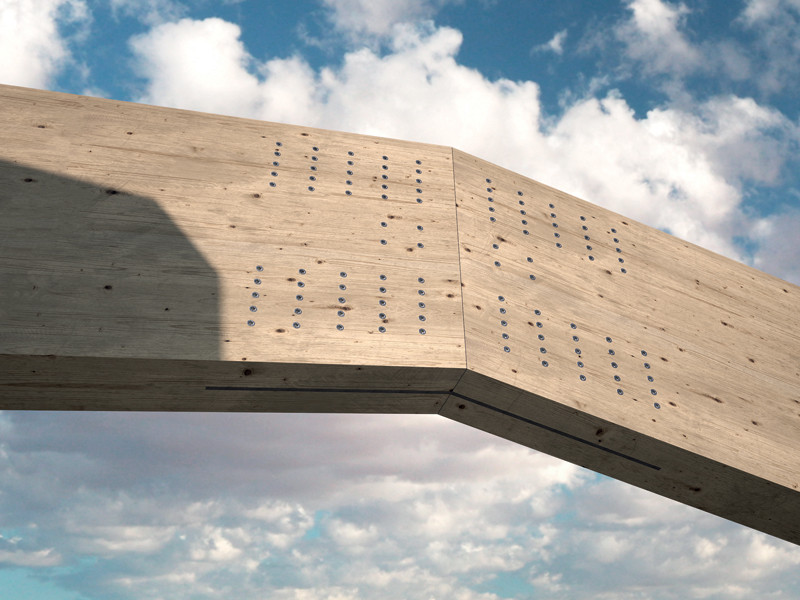

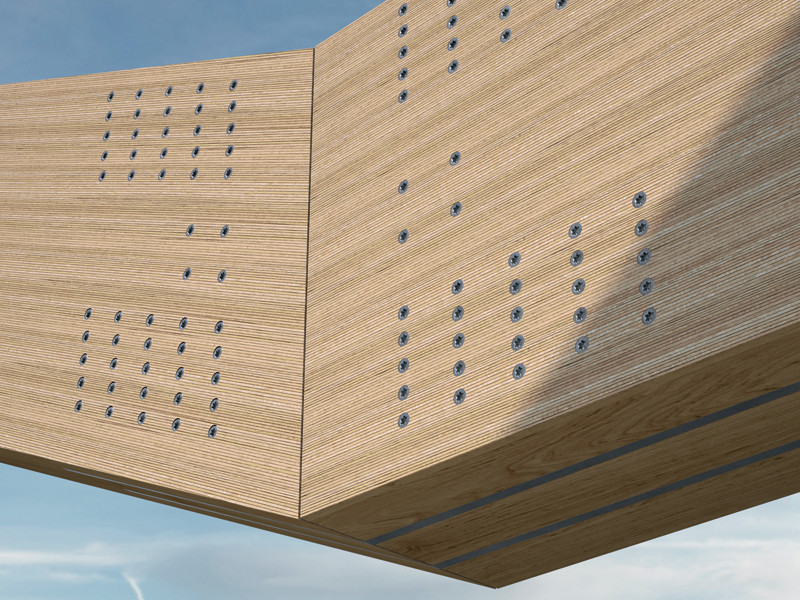

The SBD dowel is ideal for joining head beams and making continuous beams, restoring shear forces and momentum.

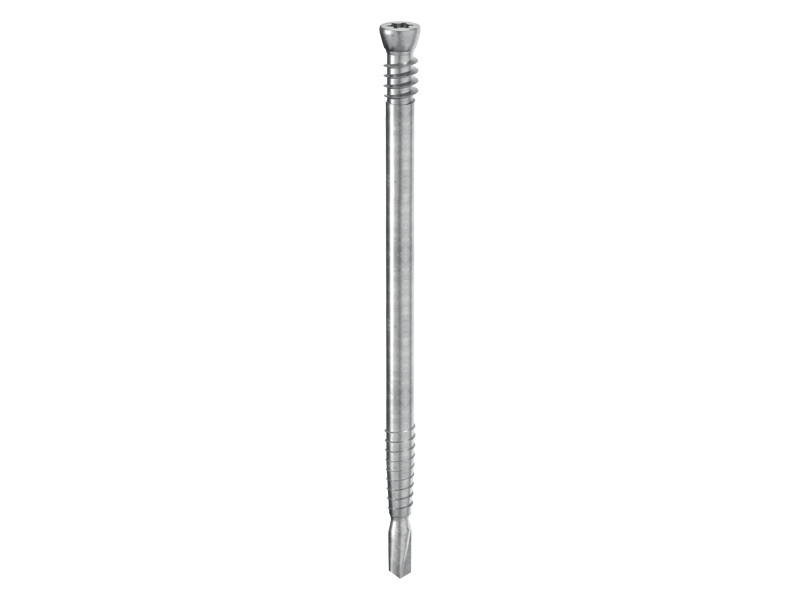

The special self-perforating timber-metal tip geometry reduces the possibility of breakage in the screwing stage.
The diameter of 7,5 mm ensures a shear resistance of over 15 % and enables optimisation of the number of fasteners.
The thread up against the tip facilitates screwing; the increased length of the under-head thread makes for fast, accurate joint closure.
The small dowel diameter guarantees joints that offer high stiffness. It can be used with screw guns running at 600-1500 rpm.
In carbon steel with bright zinc plated, it can be used on steel and aluminium. Service classes 1 and 2.
Documents
Technical data sheets
|
|
|---|---|
SBD Technical data sheets 2022
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
SBD
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| SBD7555 | 7.5 | 55 | TX40 | 50 |
| SBD7575 | 7.5 | 75 | TX40 | 50 |
| SBD7595 | 7.5 | 95 | TX40 | 50 |
| SBD75115 | 7.5 | 115 | TX40 | 50 |
| SBD75135 | 7.5 | 135 | TX40 | 50 |
| SBD75155 | 7.5 | 155 | TX40 | 50 |
| SBD75175 | 7.5 | 175 | TX40 | 50 |
| SBD75195 | 7.5 | 195 | TX40 | 50 |
| SBD75215 | 7.5 | 215 | TX40 | 50 |
| SBD75235 | 7.5 | 235 | TX40 | 50 |
