CONE-SHAPED CONCEALED HEAD SCREW
KKT A4 | AISI316
KKT A4 | AISI316 is the wood screwdesigned for outdoor use in very aggressive environments.

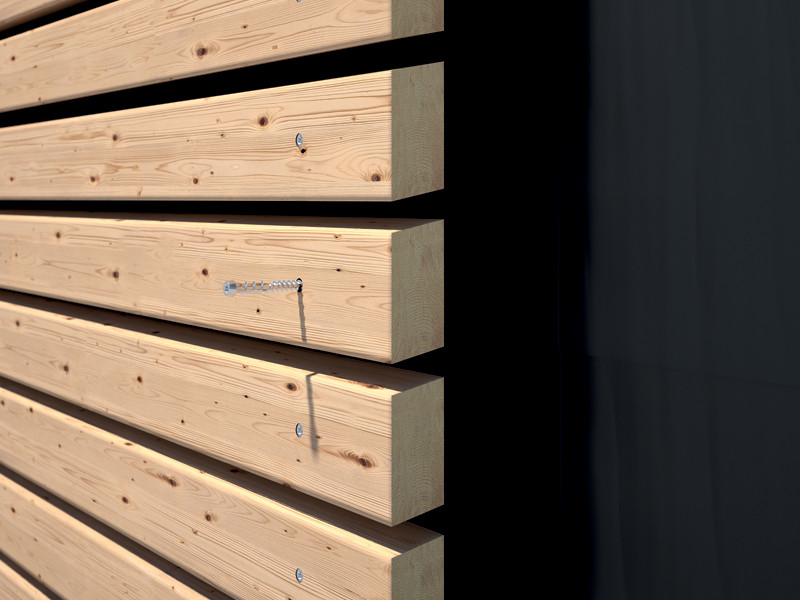

Ideal for fastening claddings for terraces and façades, it is also available in the KKT X version for fastening standard clips for wooden boards.

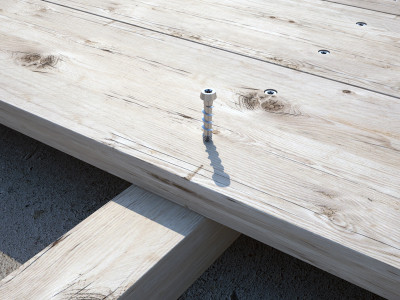

KKT A4 | AISI316 wood screws: the ideal fastening for terraces and façades.
The KKT A4 | AISI316 wood screw is ideal in very aggressive environments and for chemically treated woods.

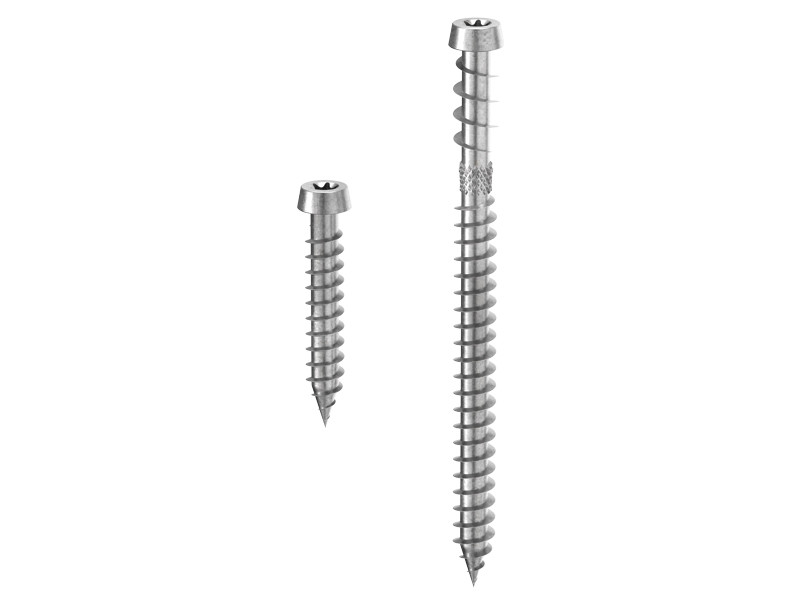

The inverse (left-hand) under-head thread guarantees excellent grip. The small conical head ensures that it is well concealed in the wood.
The three-lobed thread makes it possible to cut the wood grain during screwing, guaranteeing an exceptional wood penetration.

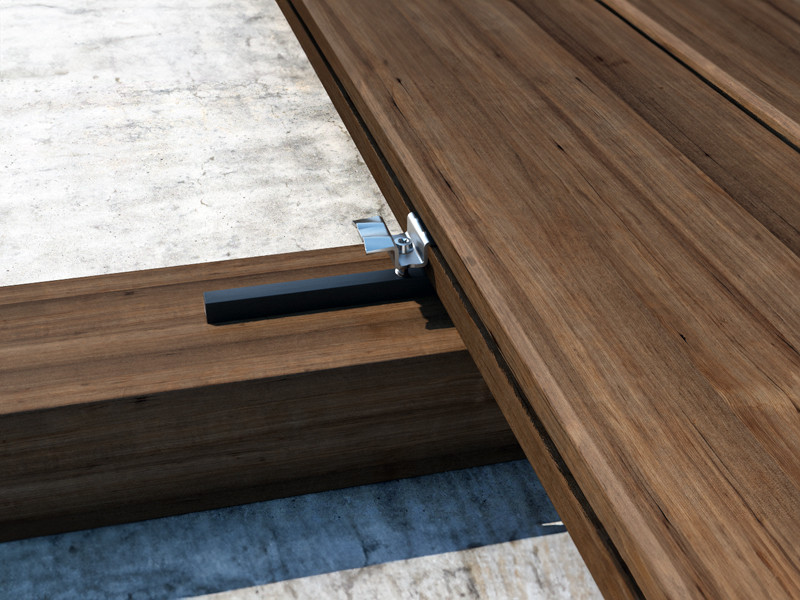

In A4 | AISI316 austenitic stainless steel, it is also available in the KKT X version with reduced length, for fastening Rothoblaas TVM and TERRALOCK standard clips in outdoor environments.
The KKT A4 and KKT X wood screws are suitable for use without pre-drilling on timber boards with a density of less than 550 kg/m3 and with pre-drilling on boards with a density of less than 880 kg/m3. Service classes 1, 2 and 3.
Features
FOCUS | excellent grip |
---|---|
HEAD | conical, countersunk |
DIAMETER | 5.0 mm |
LENGTH | from 20 mm to 80 mm |
Documents
Technical data sheets
|
|
---|---|
Declaration of performance (DOP) | Download |
File CAD
|
|
Calculator Spreadsheet_DeckDesigner
|
KKT A4 | AISI316
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKT540A4 | 5 | 43 | TX20 | 200 |
KKT550A4 | 5 | 53 | TX20 | 200 |
KKT560A4 | 5 | 60 | TX20 | 200 |
KKT570A4 | 5 | 70 | TX20 | 100 |
KKT580A4 | 5 | 80 | TX20 | 100 |
KKT X A4 | AISI316
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKTX520A4 | 5 | 20 | TX20 | 200 |
KKTX525A4 | 5 | 25 | TX20 | 200 |
KKTX530A4 | 5 | 30 | TX20 | 200 |
KKTX540A4 | 5 | 40 | TX20 | 200 |
