TURNED WASHER
HUS

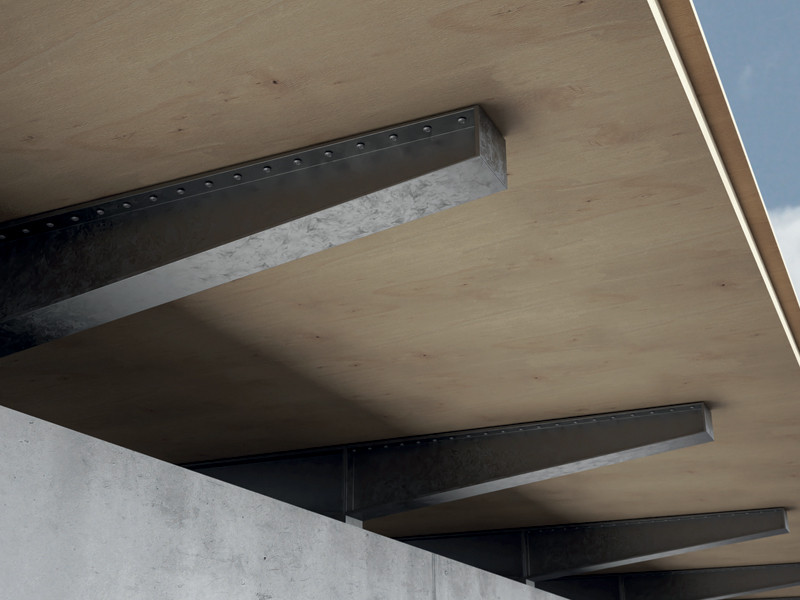

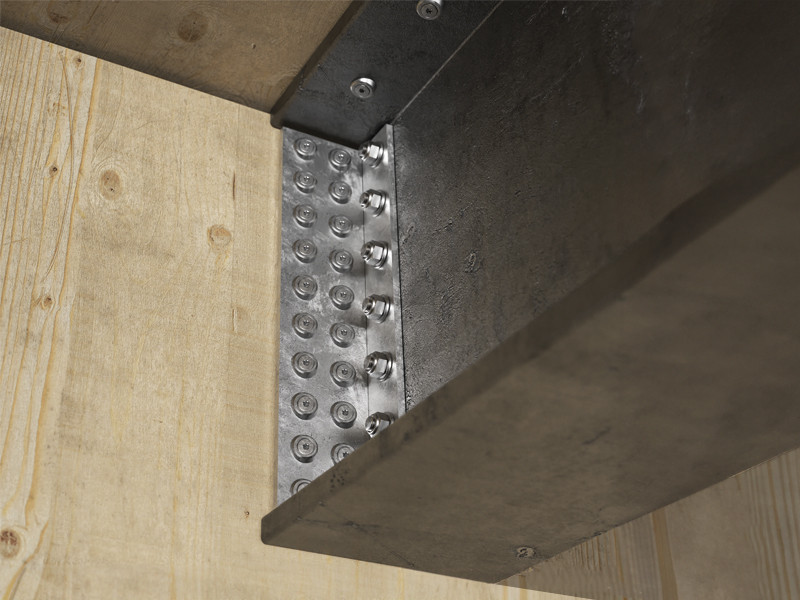

The HUS turned washer is the ideal coupling for countersunk head screws where increased axial strength of the connection is required. It is also excellent for connections on metal plates where holes are too wide.
The HUS EVO version combines the improved mechanical performance of the HUS with an upgrading of the washer's corrosion resistance, thanks to the special surface treatment. This allows it to be used in service class 3 and atmospheric corrosion class C4.
Documents
Technical data sheets
|
|
|---|---|
ICC-ES Evaluation report
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|

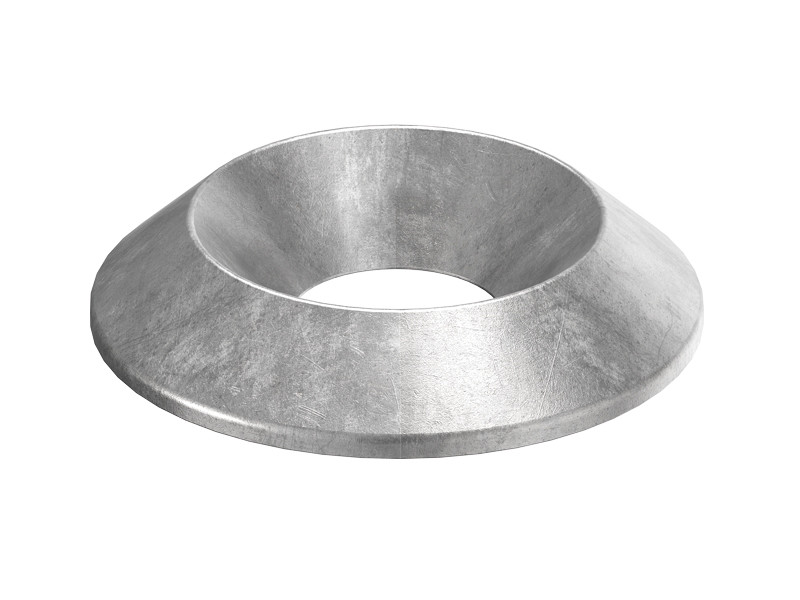

HUS
| CODE | version | pcs. |
|---|---|---|
| HUS6 | for screw HBS Ø6 | 100 |
| HUS8 | for screw HBS Ø8 and VGS Ø9 | 50 |
| HUS10 | for screw HBS Ø10 and VGS Ø11 | 50 |
| HUS12 | for screw HBS Ø12 and VGS Ø13 | 25 |

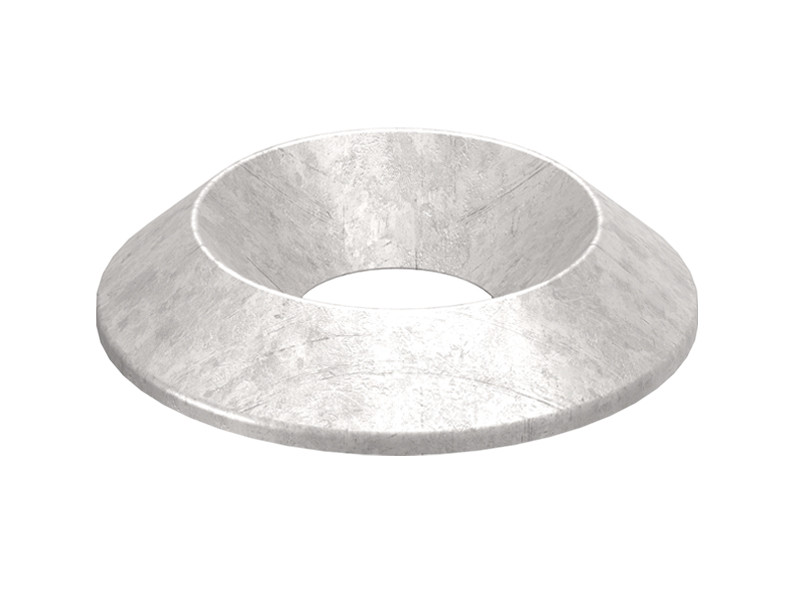

HUS EVO
| CODE | version | pcs. |
|---|---|---|
| HUSEVO6 | for screw HBS EVO Ø6 | 100 |
| HUSEVO8 | for screw HBS EVO Ø8 | 50 |

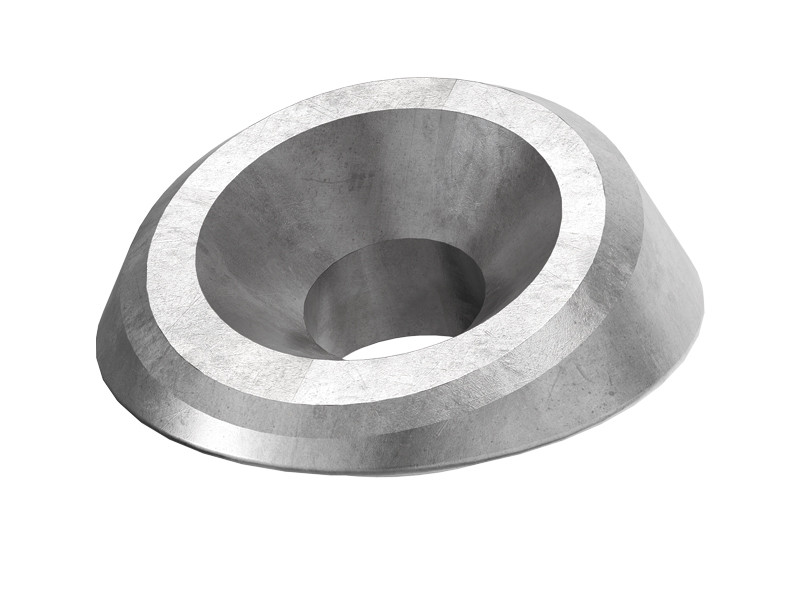

HUS 15°
| CODE | version | pcs. |
|---|---|---|
| HUS815 | for screw HBS Ø8 and VGS Ø9 | 50 |
