FULLY THREADED COUNTERSUNK SCREW
HTS

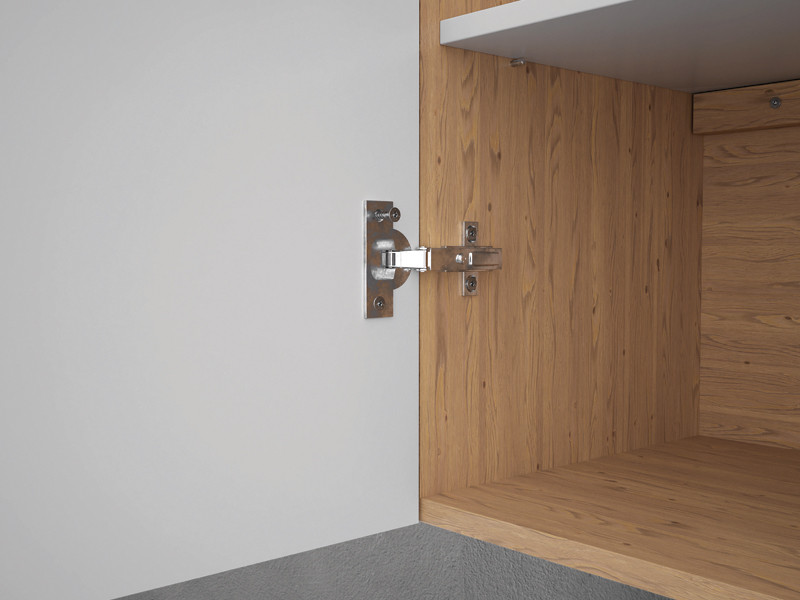

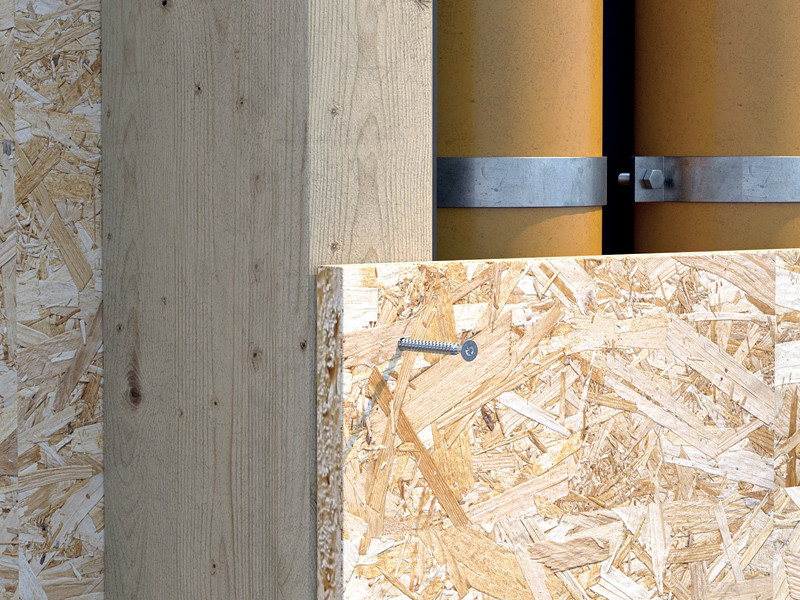

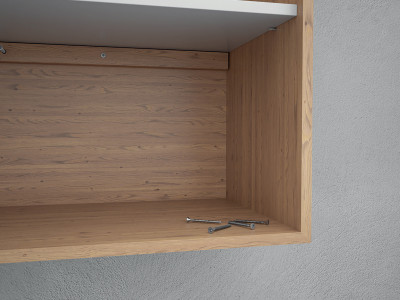

HTS is the wood screw made for fibre board and MDF panels. The smooth part under the head and the total thread equal to 80% of the length of the screw guarantees maximum coupling efficiency with wood-based panels.
HTS, the fibre board screw that ensures maximum stability for wood or MDF panel fastening HTS stands out among screws for glued laminated timber and wood based-panels.
A fine thread guarantees the utmost screwing precision, even on MDF panels. In carbon steel with bright zinc plated, it is ideal for applications in service classes 1 and 2.
It is hexavalent chromium free and complies with the strictest standards governing chemical substances (SVHC).
Features
| FOCUS | fibre board screw |
|---|---|
| HEAD | countersunk without under-head ribs |
| DIAMETER | from 3,0 mm to 5,0 mm |
| LENGTH | from 12 mm to 80 mm |
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
File CAD
|
HTS
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| HTS312 | 3 | 12 | TX10 | 1000 |
| HTS316 | 3 | 16 | TX10 | 1000 |
| HTS320 | 3 | 20 | TX10 | 1000 |
| HTS325 | 3 | 25 | TX10 | 1000 |
| HTS330 | 3 | 30 | TX10 | 1000 |
| HTS3516 | 3.5 | 16 | TX15 | 1000 |
| HTS3520 | 3.5 | 20 | TX15 | 1000 |
| HTS3525 | 3.5 | 25 | TX15 | 1000 |
| HTS3530 | 3.5 | 30 | TX15 | 500 |
| HTS3535 | 3.5 | 35 | TX15 | 500 |
| HTS3540 | 3.5 | 40 | TX15 | 500 |
| HTS3550 | 3.5 | 50 | TX15 | 400 |
| HTS420 | 4 | 20 | TX20 | 1000 |
| HTS425 | 4 | 25 | TX20 | 1000 |
| HTS430 | 4 | 30 | TX20 | 500 |
| HTS435 | 4 | 35 | TX20 | 500 |
| HTS440 | 4 | 40 | TX20 | 500 |
| HTS445 | 4 | 45 | TX20 | 400 |
| HTS450 | 4 | 50 | TX20 | 400 |
| HTS4530 | 4.5 | 30 | TX20 | 500 |
| HTS4535 | 4.5 | 35 | TX20 | 500 |
| HTS4540 | 4.5 | 40 | TX20 | 400 |
| HTS4545 | 4.5 | 45 | TX20 | 400 |
| HTS4550 | 4.5 | 50 | TX20 | 200 |
| HTS530 | 5 | 30 | TX25 | 500 |
| HTS535 | 5 | 35 | TX25 | 400 |
| HTS540 | 5 | 40 | TX25 | 200 |
| HTS545 | 5 | 45 | TX25 | 200 |
| HTS550 | 5 | 50 | TX25 | 200 |
| HTS560 | 5 | 60 | TX25 | 200 |
| HTS570 | 5 | 70 | TX25 | 100 |
| HTS580 | 5 | 80 | TX25 | 100 |
