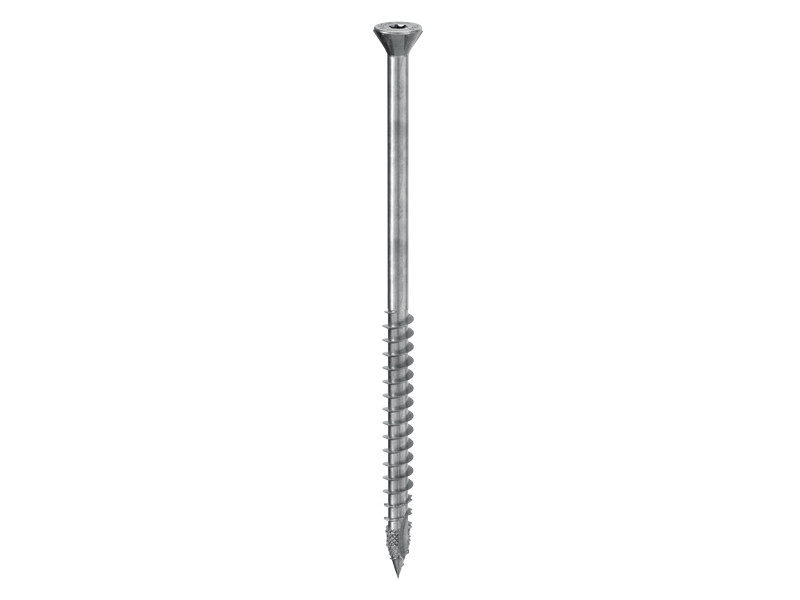

HBS HARDWOOD
Not all hardwood screws are the same.
The special tip with diamond geometry and notched, serrated thread, makes HBS HARDWOOD the screw certified for use with high-density woods with no need for pre-drilling.
Description
Choose your wood screws well: when the going gets tough, rely on HBS HARDWOOD.
HBS HARDWOOD features an in tip diameter increased to ensure tightening in the highest density woods.
The 60° concealed head enables an effective and minimally invasive insertion. Excellent torsional moment values. HBS H Ø6 mm is comparable to a diameter of 7 mm; HBS H Ø8 mm is comparable to a diameter of 9 mm.
Approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°). Values are also tested, certified and calculated for high-density woods such as beechwood Microllam® LVL.
Certified for use without pre-drilling, for densities of up to 780 kg/m3.
Also tested on structural woods such as beech, cypress, eucalyptus, bamboo.
In carbon steel with bright zinc plated, for use in service classes 1 and 2.
HBS HARDWOOD
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| HBSH680 | 6 | 80 | TX30 | 100 |
| HBSH6100 | 6 | 100 | TX30 | 100 |
| HBSH6120 | 6 | 120 | TX30 | 100 |
| HBSH6140 | 6 | 140 | TX30 | 100 |
| HBSH6160 | 6 | 160 | TX30 | 100 |
| HBSH8120 | 8 | 120 | TX40 | 100 |
| HBSH8140 | 8 | 140 | TX40 | 100 |
| HBSH8160 | 8 | 160 | TX40 | 100 |
| HBSH8180 | 8 | 180 | TX40 | 100 |
| HBSH8200 | 8 | 200 | TX40 | 100 |
| HBSH8220 | 8 | 220 | TX40 | 100 |
| HBSH8240 | 8 | 240 | TX40 | 100 |
| HBSH8280 | 8 | 280 | TX40 | 100 |
| HBSH8400 | 8 | 400 | TX40 | 100 |
