HOME FASTENING BRACKETS AND PLATES PINS - BOLTS - METRIC MET

threaded-rods-met

threaded-rods-nuts-and-washers-met

MET

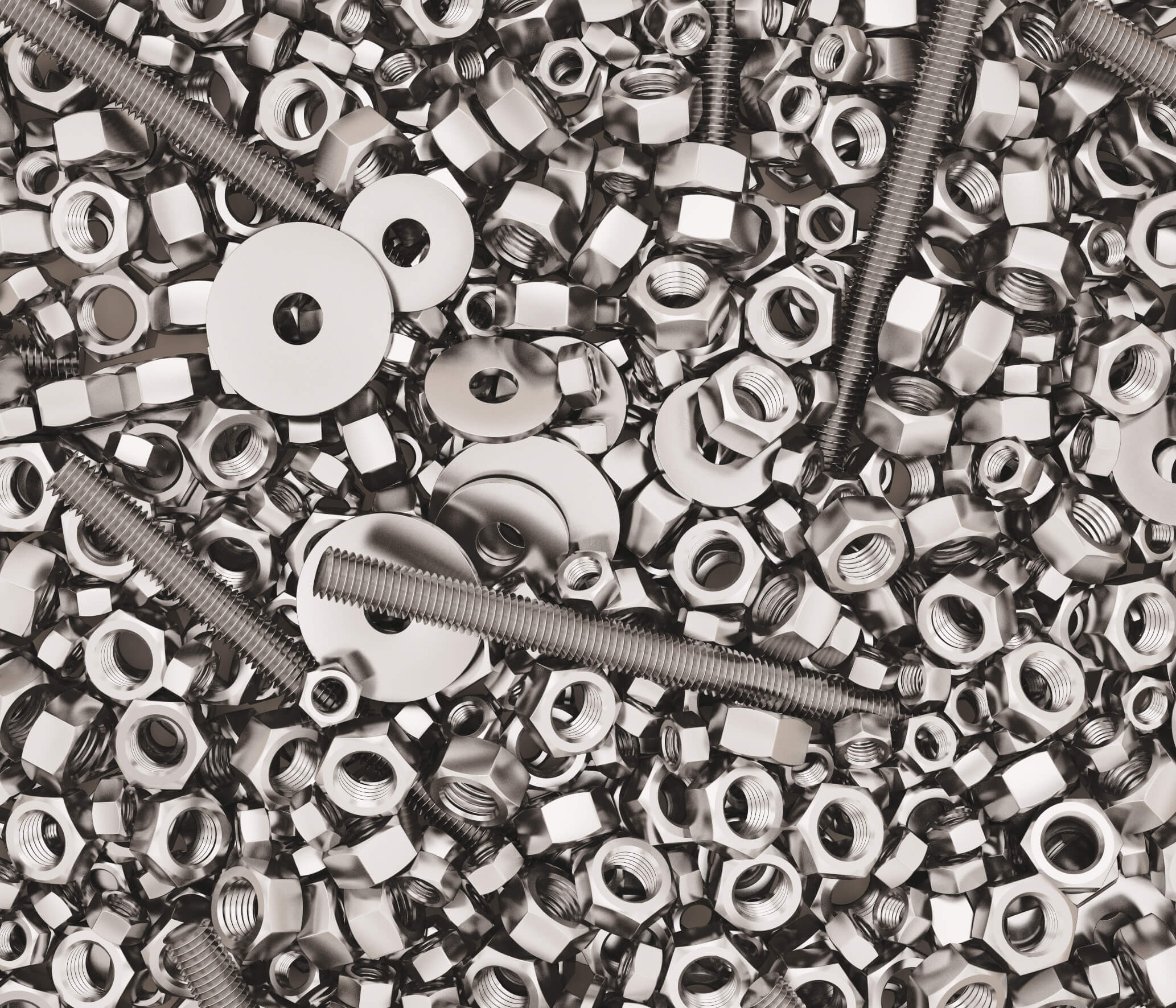

THREADED RODS, NUTS AND WASHERS

Metric threaded products for creating connections and joints.
Available in carbon steel and stainless steel for use in service classes 1, 2 and 3 (EN 1995-1-1).

Get in touch with sales

Documents
Codes and dimensions
Related products

Documents

Technical data sheets

Choose a Language
Technical data sheets USA

Choose a Language
Item specification

Choose a Language

MGS 1000 4.8

CODE	d [mm]	L [mm]	pcs.
MGS10008	M8	1000	10
MGS100010	M10	1000	10
MGS100012	M12	1000	10
MGS100014	M14	1000	10
MGS100016	M16	1000	10
MGS100018	M18	1000	10
MGS100020	M20	1000	10
MGS100022	M22	1000	10
MGS100024	M24	1000	10
MGS100027	M27	1000	10
MGS100030	M30	1000	10

MGS 1000 8.8

CODE	d [mm]	L [mm]	pcs.
MGS10888	M8	1000	50
MGS11088	M10	1000	50
MGS11288	M12	1000	25
MGS11488	M14	1000	1
MGS11688	M16	1000	20
MGS11888	M18	1000	10
MGS12088	M20	1000	10
MGS12488	M24	1000	5
MGS12788	M27	1000	1

MGS 2200 4.8

CODE	d [mm]	L [mm]	pcs.
MGS220012	M12	2200	10
MGS220016	M16	2200	1
MGS220020	M20	2200	10

MGS AI 975 | AISI304

CODE	d [mm]	L [mm]	pcs.
AI9758	M8	1000	1
AI97510	M10	1000	5
AI97512	M12	1000	20
AI97516	M16	1000	10
AI97520	M20	1000	5

ULS 9021

CODE	version	d [mm]	s [mm]	pcs.
ULS8242	0.32 in	24	2	200
ULS10302	0.40 in	30	2.5	200
ULS13373	0.48 in	37	3	100
ULS15443	0.56 in	44	3	100
ULS17503	0.63 in	50	3	100
ULS20564	0.71 in	56	4	50
ULS22604	0.79 in	60	4	50

ULS 440

CODE	version	d [mm]	s [mm]	pcs.
ULS11343	0.40 in	34	3	200
ULS13444	0.48 in	44	4	200
ULS17565	0.63 in	56	5	50
ULS22726	0.79 in	72	6	50
ULS24806	0.87 in	80	6	25

ULS 1052

CODE	version	d [mm]	s [mm]	pcs.
ULS14586	0.48 in	58	6	50
ULS18686	0.63 in	68	6	50
ULS22808	0.79 in	80	8	25
ULS25928	0.87 in	92	8	20
ULS271058	0.95 in	105	8	20

ULS 125

CODE	version	d [mm]	s [mm]	pcs.
ULS81616	0.32 in	16	1.6	1000
ULS10202	0.40 in	20	2	500
ULS13242	0.48 in	24	2.5	500
ULS17303	0.63 in	30	3	250
ULS21373	0.79 in	37	3	250
ULS25444	0.95 in	44	4	200
ULS28504	1.07 in	56	4	100
ULS31564	1.19 in	50	4	20

ULS AI 9021

CODE	version	d [mm]	s [mm]	pcs.
AI90218	0.32 in	24	2	500
AI902110	0.40 in	30	2.5	500
AI902112	0.48 in	37	3	200
AI902116	0.63 in	50	3	100
AI902120	0.79 in	60	4	50

MUT 934

CODE	d [mm]	H [mm]	SW	pcs.
MUT9348	M8	6.5	SW13	400
MUT93410	M10	8	SW17	500
MUT93412	M12	10	SW19	500
MUT93414	M14	11	SW22	200
MUT93416	M16	13	SW24	200
MUT93418	M18	15	SW27	100
MUT93420	M20	16	SW30	100
MUT93422	M22	18	SW32	50
MUT93424	M24	19	SW36	50
MUT93427	M27	22	SW41	25
MUT93430	M30	24	SW46	25

MUT 6334

CODE	d [mm]	H [mm]	SW	pcs.
MUT633410	M10	30	SW17	100
MUT633412	M12	36	SW19	10
MUT633416	M16	48	SW24	25
MUT633420	M20	60	SW30	10

MUT 1587

CODE	d [mm]	H [mm]	SW	pcs.
MUT15878S	M8	15	SW13	200
MUT158710S	M10	18	SW17	50
MUT158712S	M12	22	SW19	50
MUT158714S	M14	25	SW22	50
MUT158716S	M16	28	SW24	50
MUT158718S	M18	32	SW27	50
MUT158720S	M20	34	SW30	25
MUT158722S	M22	39	SW32	25
MUT158724S	M24	42	SW36	25

MUT AI 934

CODE	d [mm]	H [mm]	SW	pcs.
AI9348	M8	6.5	SW13	500
AI93410	M10	8	SW16	200
AI93412	M12	10	SW18	200
AI93416	M16	13	SW24	100
AI93420	M20	16	SW30	50

MUT AI 985

CODE	d [mm]	H [mm]	SW	pcs.
AI9858	M8	8	SW13	500
AI98510	M10	10	SW17	200
AI98512	M12	12	SW19	200
AI98516	M16	16	SW24	100

MUT AI 1587

CODE	d [mm]	H [mm]	SW	pcs.
AI158710	M10	18	SW17	100
AI158712	M12	22	SW19	100
AI158716	M16	28	SW24	50
AI158720	M20	34	SW30	25
