HOME FASTENING BRACKETS AND PLATES PINS - BOLTS - METRIC EKS

EKS

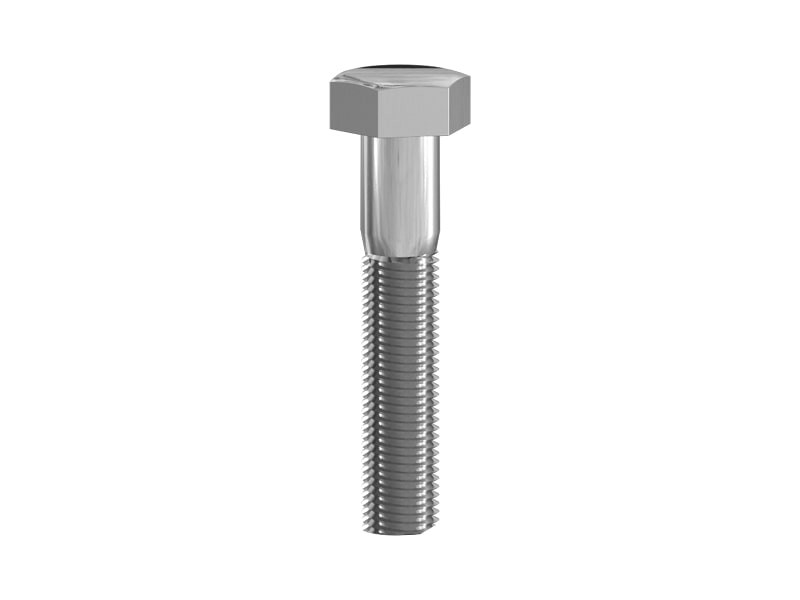

HEXAGONAL HEAD BOLT

Steel class 8.8 - zinc plated.

Get in touch with sales

Documents
Codes and dimensions
Related products

Documents

Technical data sheets

Choose a Language

EKS

CODE	d [mm]	L [mm]	pcs.
EKS2040	20	40	25
EKS2050	20	50	25
EKS2060	20	60	25
EKS2070	20	70	25
EKS2080	20	80	25
EKS20100	20	100	25
EKS2440	24	40	25
EKS2460	24	60	25
EKS2465	24	65	25
EKS2470	24	70	20
EKS2480	24	80	25
EKS2485	24	85	25
