TYP M

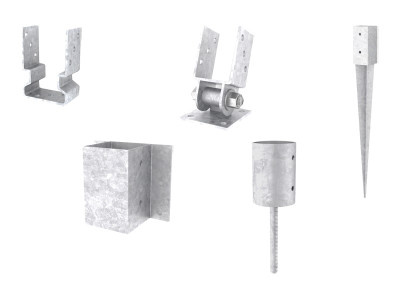

MIXED POST BASES
Hot dip galvanizing for use in service classes 1, 2 and 3.

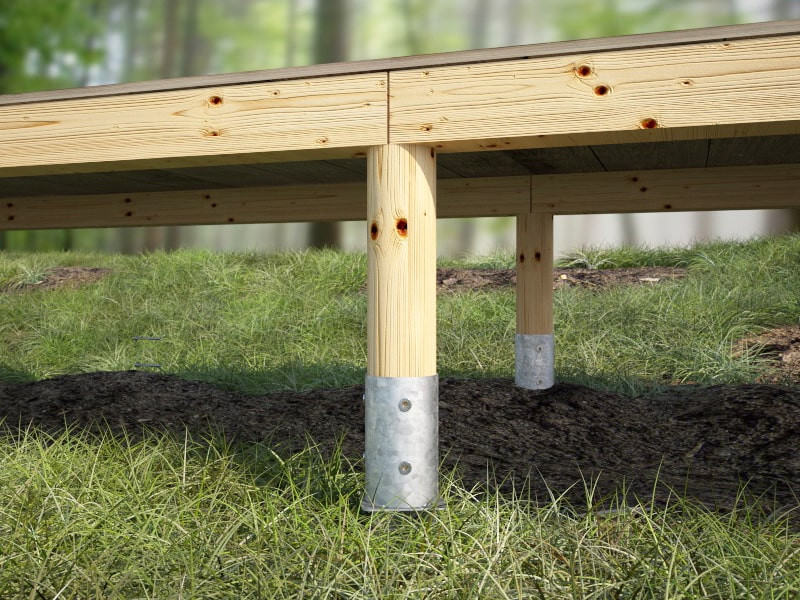

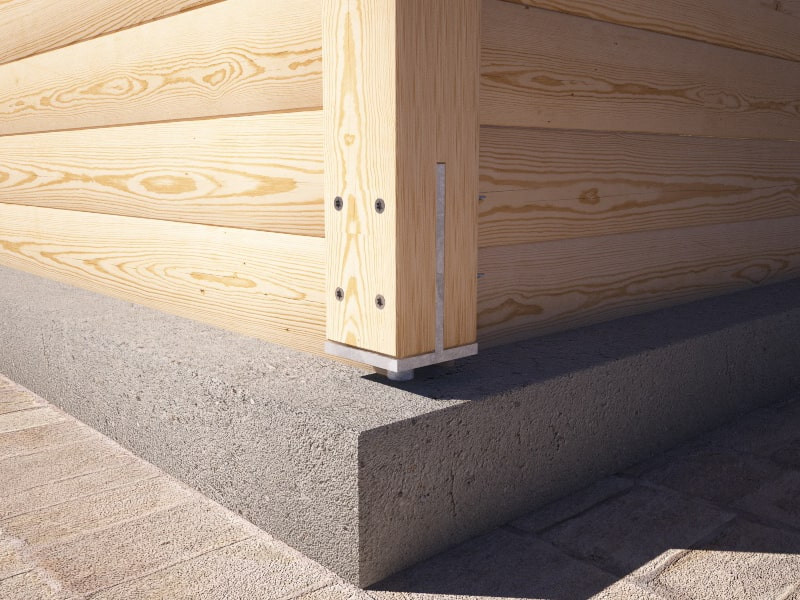

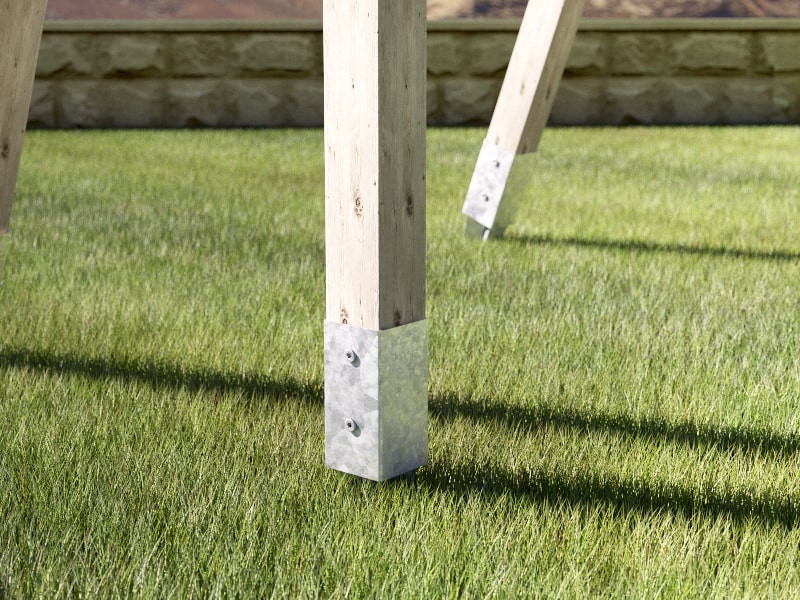

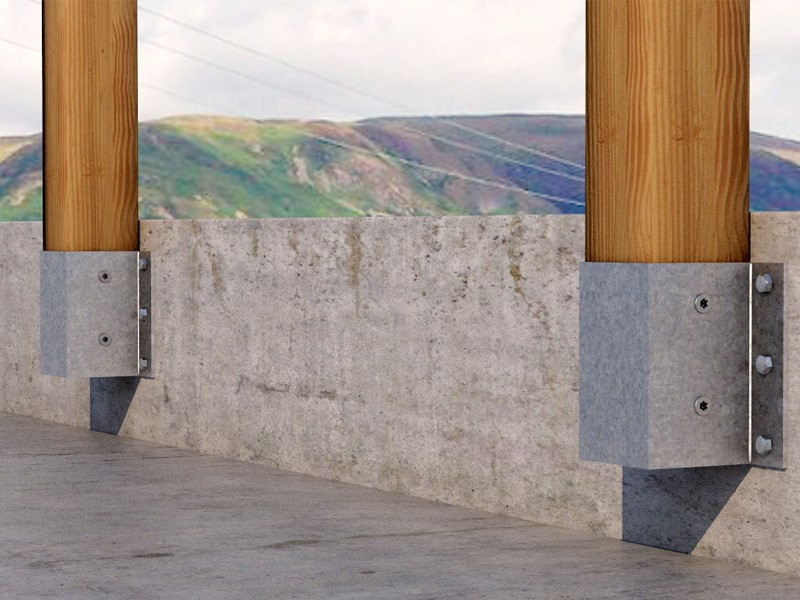

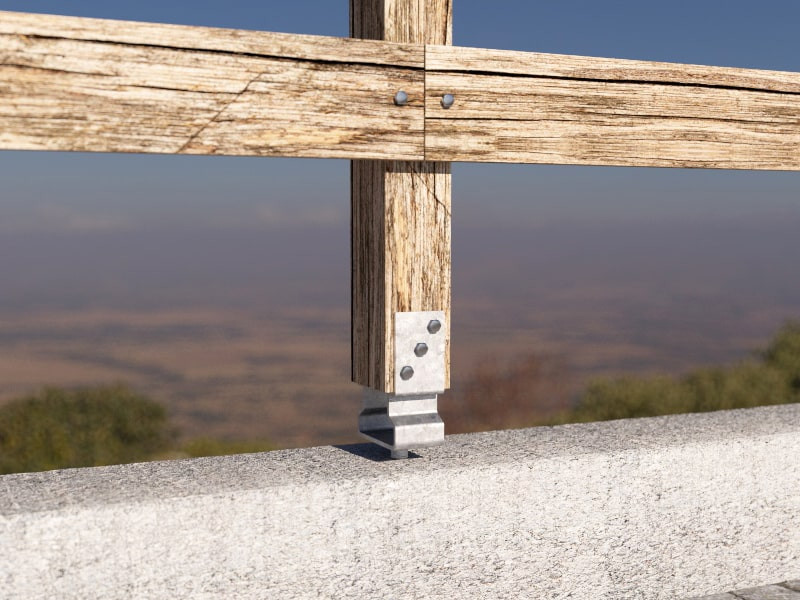

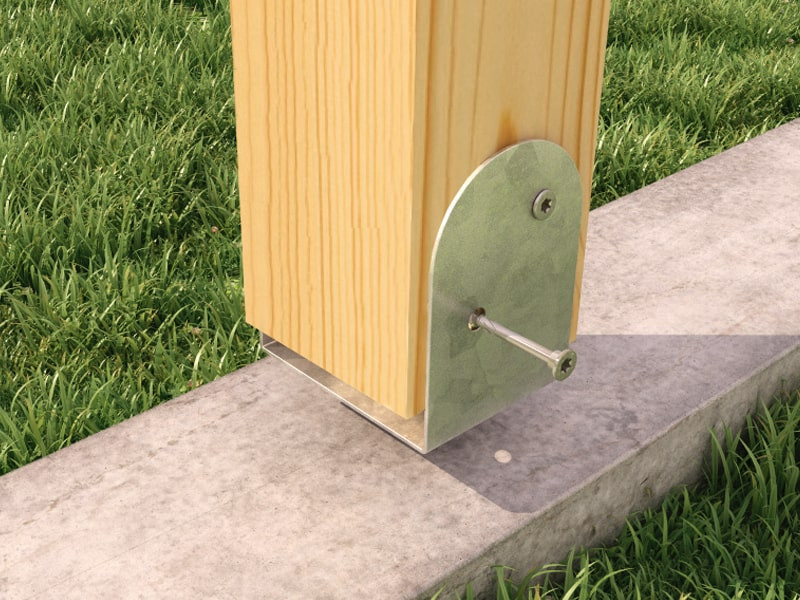

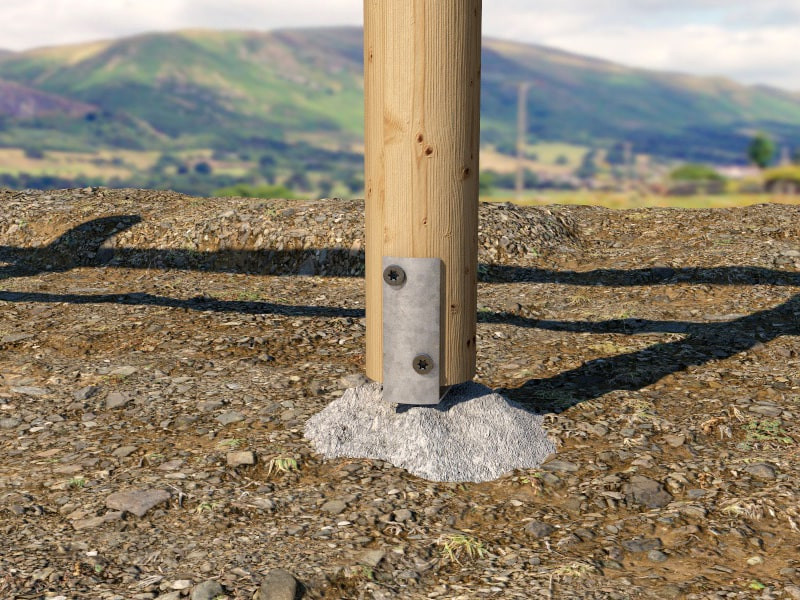

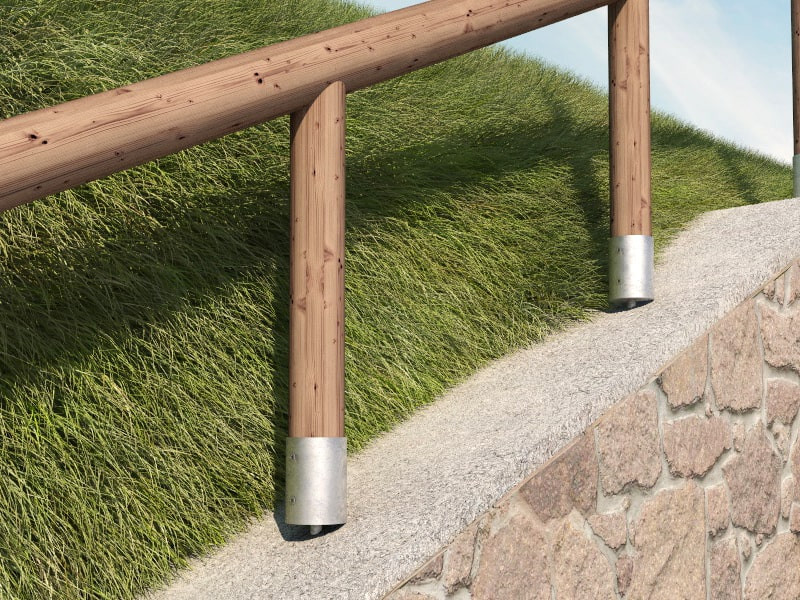

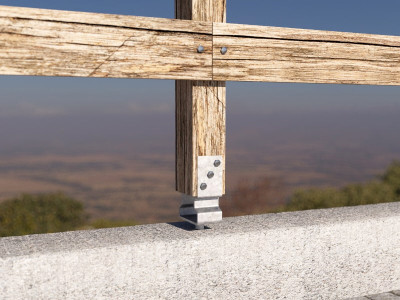

Specific solutions for fastening in the ground, on the wall or in concrete.

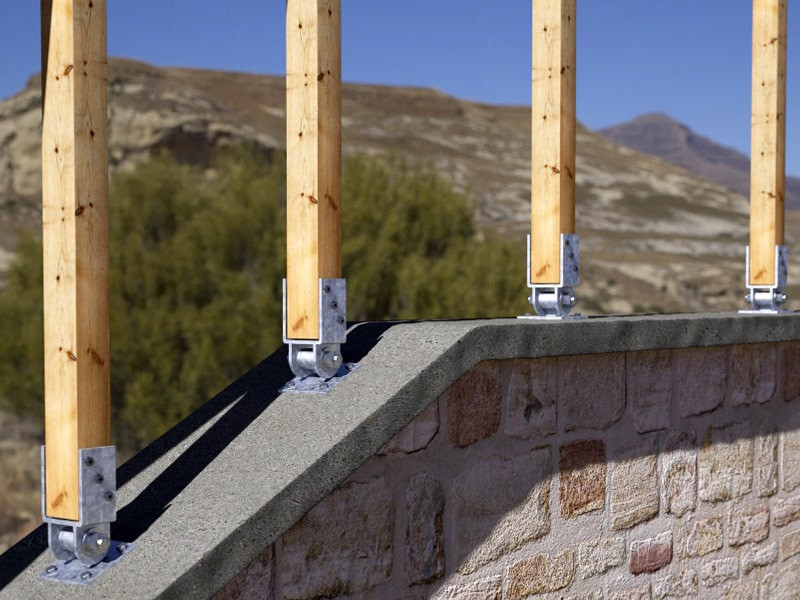

Inclinable versions.
M70 S
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M70S70 | 71 | 71 | 150 | 2 | 1 |
| M70S90 | 91 | 91 | 150 | 2 | 1 |
| M70S100 | 101 | 101 | 150 | 2 | 1 |
| M70S120 | 121 | 121 | 150 | 2 | 1 |
M70 R
| CODE | Ø
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| M70R80 | Ø81 | 150 | 2 | 1 |
| M70R100 | Ø101 | 150 | 2 | 1 |
| M70R120 | Ø121 | 150 | 2 | 1 |
M50
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M5070 | 71 | 60 | 150 | 5 | 1 |
| M5090 | 91 | 60 | 150 | 5 | 1 |
| M50100 | 101 | 60 | 150 | 5 | 1 |
| M50120 | 121 | 60 | 150 | 5 | 1 |
M53
| CODE | Ø
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| M5380 | Ø81 | 150 | 3 | 1 |
| M53100 | Ø101 | 150 | 3 | 1 |
| M53120 | Ø121 | 150 | 3 | 1 |
M52
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M5290 | 91 | 70 | 120 | 2.5 | 1 |
| M52100 | 101 | 80 | 120 | 2.5 | 1 |
| M52120 | 121 | 100 | 140 | 2.5 | 1 |
M51
| CODE | Ø
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| M51100 | Ø101 | 150 | 3 | 1 |
| M51120 | Ø121 | 150 | 3 | 1 |
M60
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M6080 | 80 | 80 | 130 | 8 | 1 |
S40
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| S4070 | 71 | 60 | 100 | 5 | 1 |
| S4090 | 91 | 60 | 100 | 5 | 1 |
M10
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M1070 | 71 | 71 | 150 | 2 | 1 |
| M1090 | 91 | 91 | 150 | 2 | 1 |
M20
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M2070 | 71 | 60 | 150 | 5 | 1 |
| M2090 | 91 | 60 | 150 | 5 | 1 |
| M20100 | 101 | 60 | 150 | 5 | 1 |
| M20120 | 121 | 60 | 150 | 5 | 1 |
M30
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| M3070 | 71 | 50 | 200 | 5 | 1 |
| M3080 | 81 | 50 | 200 | 5 | 1 |
| M3090 | 91 | 50 | 200 | 5 | 1 |
| M30100 | 101 | 50 | 200 | 5 | 1 |
| M30120 | 121 | 50 | 200 | 5 | 1 |
Specifications
Supply and installation of mixed post base for timber structures, Type TYP M.
Field of use:
- Joints for timber columns, classes 1, 2 and 3
Material:
- Carbon steel, three dimensional perforated plate
Geometry:
Angle bracket: :
-
H (mm) = :
-
Bottom plate (mm) = :
-
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
