TYP FD

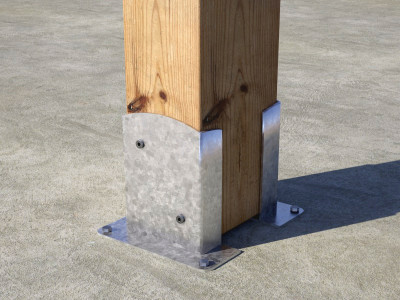

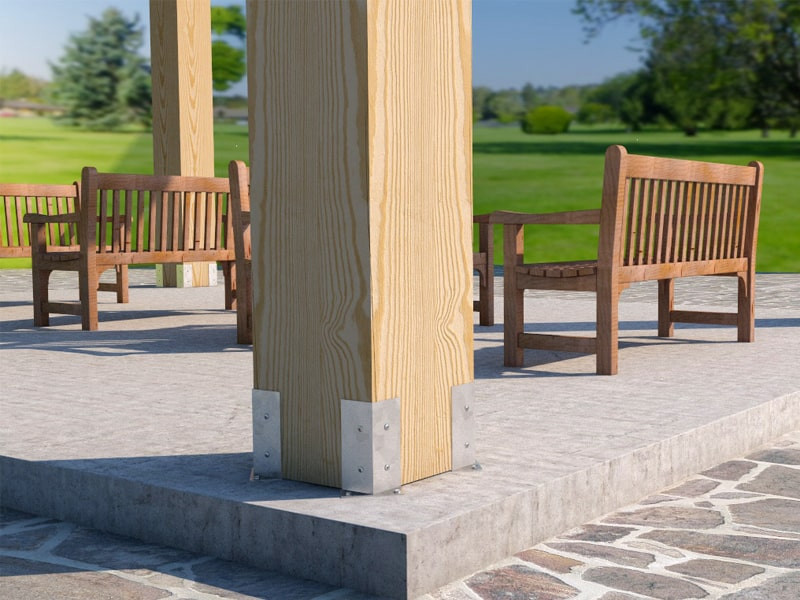

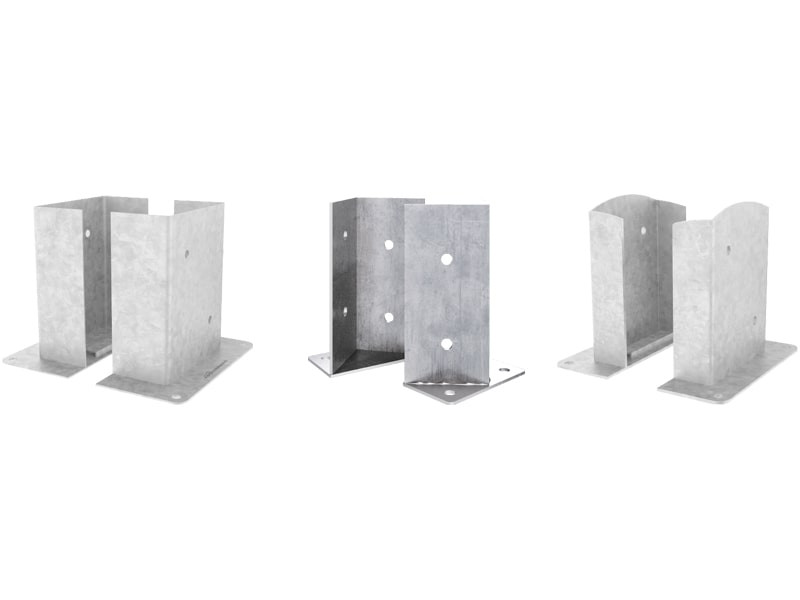

DOUBLE FIXED POST BASES
Hot dip galvanizing for use in service classes 1, 2 and 3.
Stainless steel A2 | AISI304 versions for excellent durability.
Ideal for use with rectangular columns or non-standard sizes.

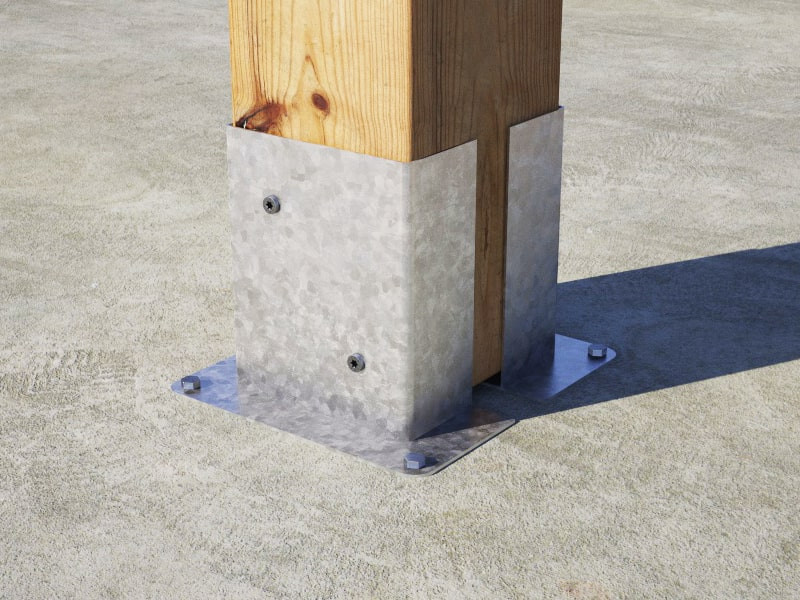

FD10
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FD10120 | 121 | 56 | 200 | 2.5 | 1 |
| FD10140 | 141 | 66 | 200 | 2.5 | 1 |
| FD10160 | 161 | 76 | 200 | 2.5 | 1 |
| FD10180 | 181 | 86 | 200 | 2.5 | 1 |
| FD10200 | 201 | 96 | 200 | 2.5 | 1 |

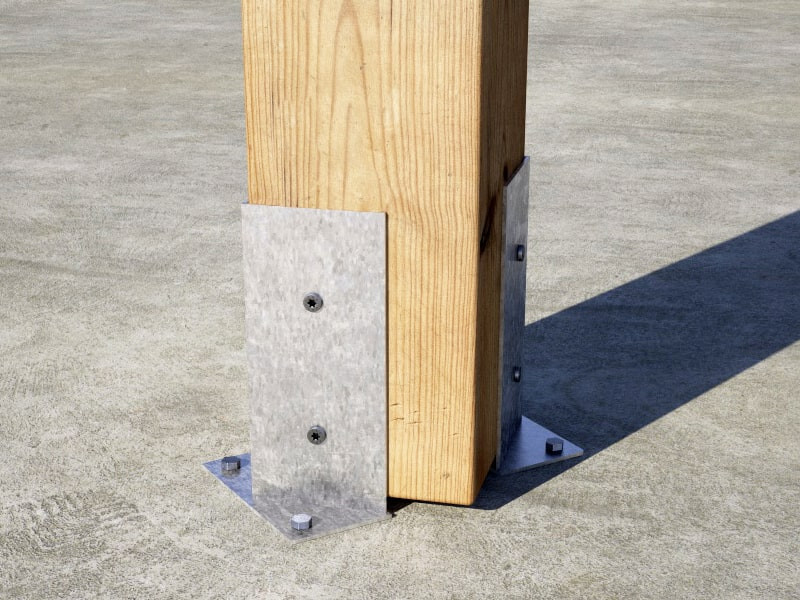

FD70
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FD7080 | 81 | 81 | 180 | 3 | 1 |
| FD70100 | 101 | 101 | 220 | 3 | 1 |

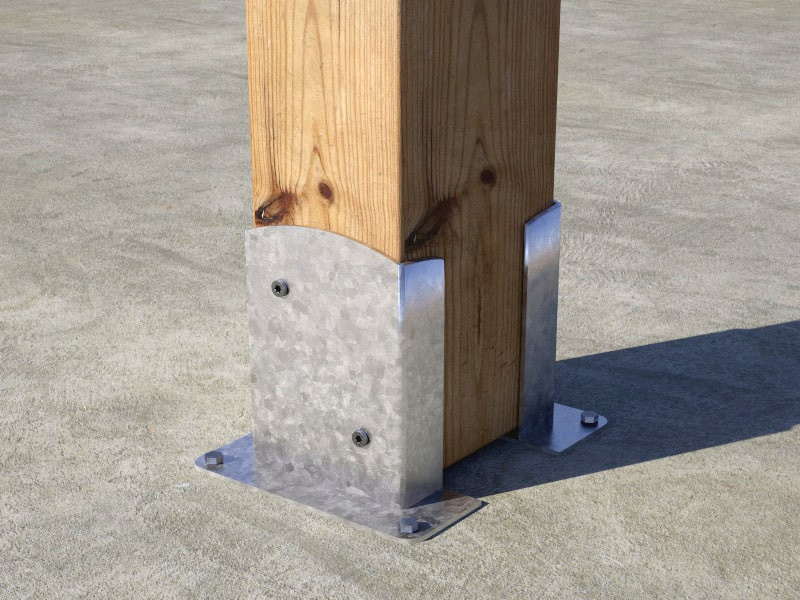

FD20
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FD20120 | 121 | 38 | 200 | 4 | 1 |
| FD20140 | 141 | 46 | 200 | 4 | 1 |
| FD20160 | 161 | 54 | 200 | 4 | 1 |
| FD20200 | 201 | 66 | 200 | 4 | 1 |
FD30
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| FD3060 | 60 | 180 | 4 | 1 |
| FD3080 | 80 | 240 | 4 | 1 |

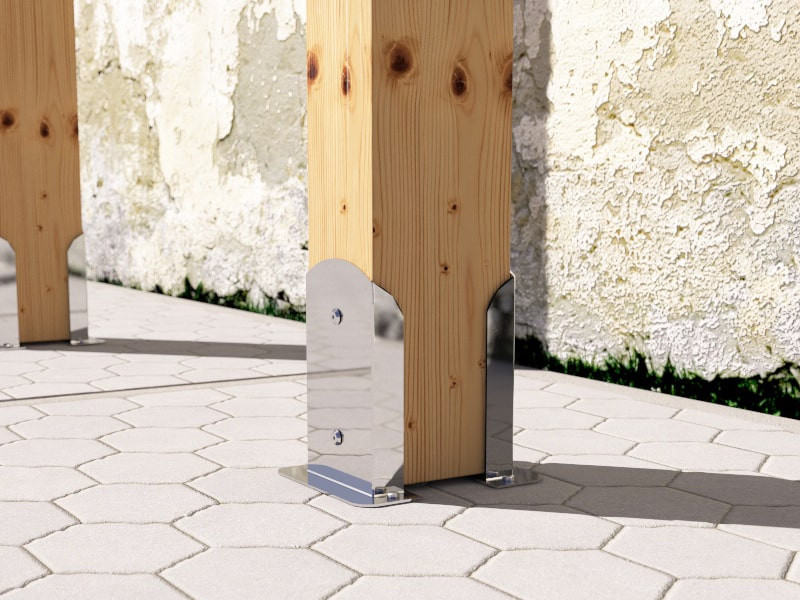

FD50
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| FD5050 | 46 | 185 | 4 | 1 |
| FD5080 | 76 | 220 | 4 | 1 |
FD60
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| FD6050 | 46 | 185 | 4 | 1 |
| FD6080 | 76 | 220 | 4 | 1 |
