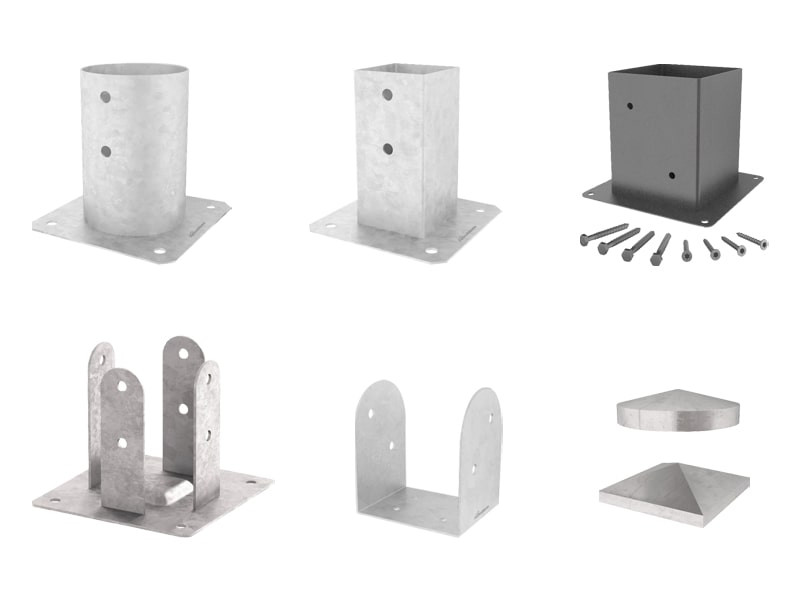

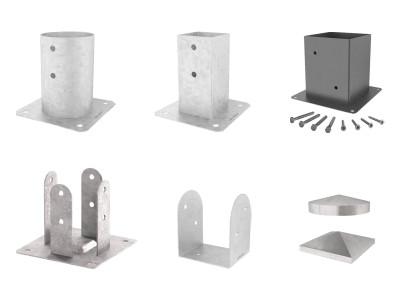

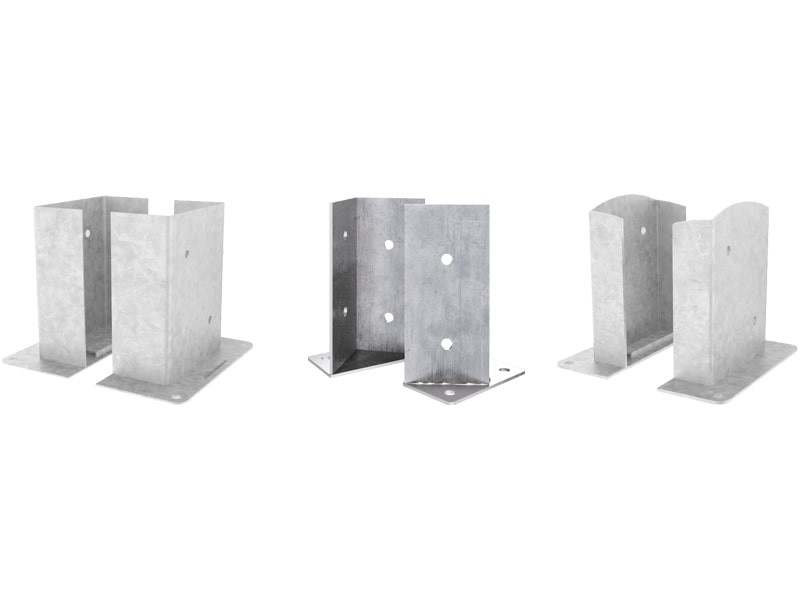

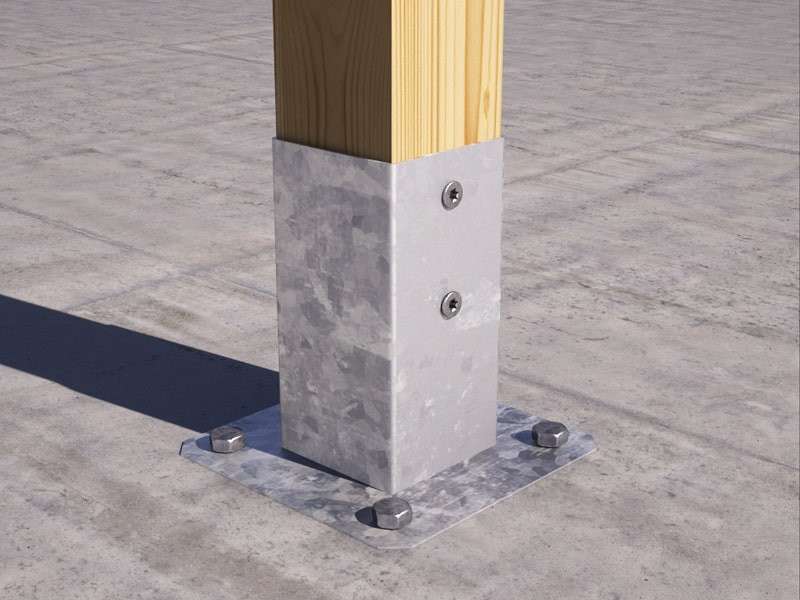

TYP F
FIXED POST BASES
Hot dip galvanizing for use in service classes 1, 2 and 3.
Stainless steel A2 | AISI304 versions for excellent durability .
Internal holes designed to allow the accumulated water to drain. Versions with integrated riser.

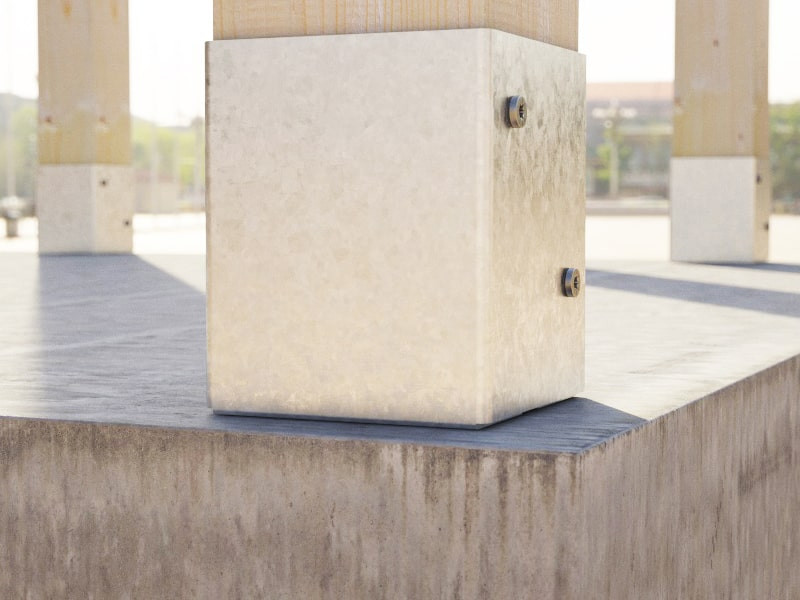

F10
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| F1070 | 71 | 71 | 150 | 2 | 1 |
| F1080 | 81 | 81 | 150 | 2 | 1 |
| F1090 | 91 | 91 | 150 | 2 | 1 |

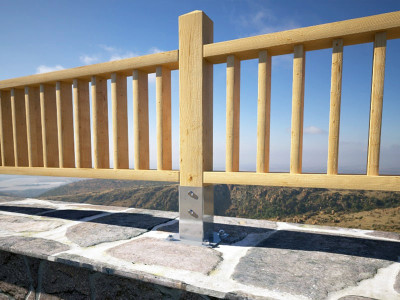

FI10 A2 | AISI304
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FI1070 | 71 | 71 | 150 | 2 | 1 |
| FI1090 | 91 | 91 | 150 | 2 | 1 |

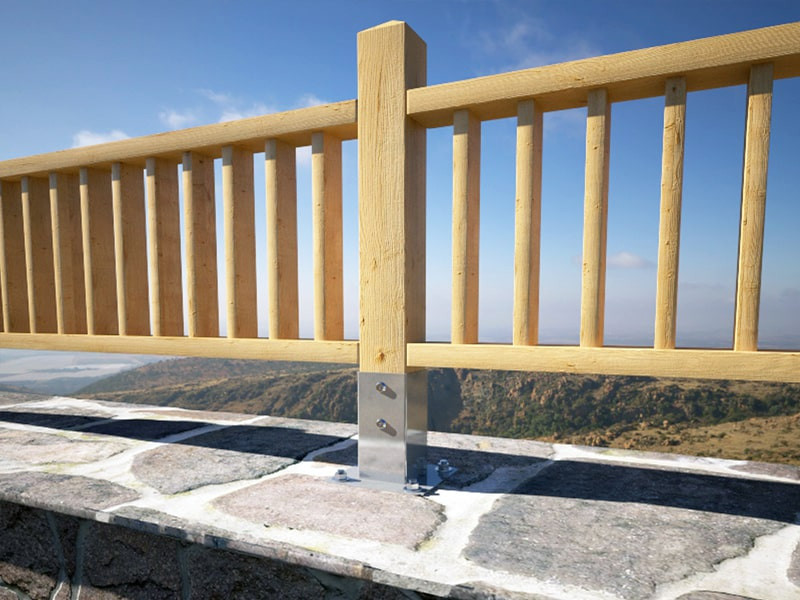

F50
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| F50100 | 101 | 101 | 150 | 2.5 | 1 |
| F50120 | 121 | 121 | 150 | 2.5 | 1 |
| F50140 | 141 | 141 | 150 | 2.5 | 1 |
| F50160 | 161 | 161 | 200 | 2.5 | 1 |
| F50180 | 181 | 181 | 200 | 2.5 | 1 |
| F50200 | 201 | 201 | 200 | 2.5 | 1 |
FI50 A2 | AISI304
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FI50100 | 101 | 101 | 150 | 2.5 | 1 |
| FI50120 | 121 | 121 | 150 | 2.5 | 1 |
| FI50140 | 141 | 141 | 150 | 2.5 | 1 |
| FI50160 | 161 | 161 | 200 | 2.5 | 1 |
| FI50200 | 201 | 201 | 200 | 2.5 | 1 |

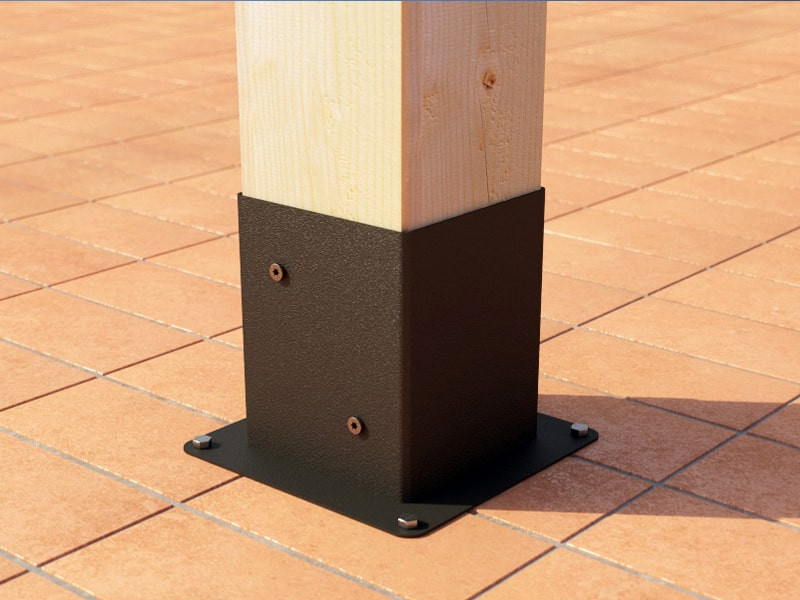

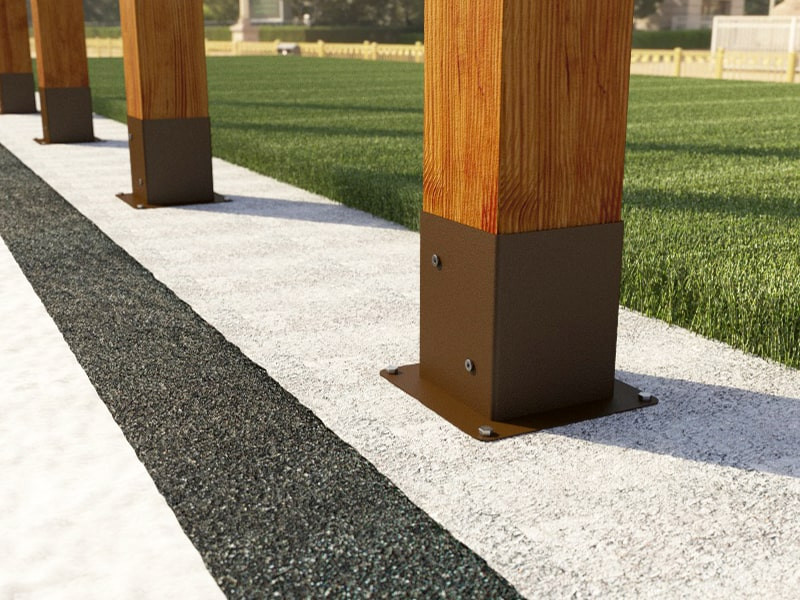

FM50 COLOR
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FM50100 | 101 | 101 | 150 | 2.5 | 1 |
| FM50120 | 121 | 121 | 150 | 2.5 | 1 |
| FM50160 | 161 | 161 | 200 | 2.5 | 1 |
| FM50200 | 201 | 201 | 200 | 2.5 | 1 |
FR50 COLOR
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| FR50100 | 101 | 101 | 150 | 2.5 | 1 |
| FR50120 | 121 | 121 | 150 | 2.5 | 1 |

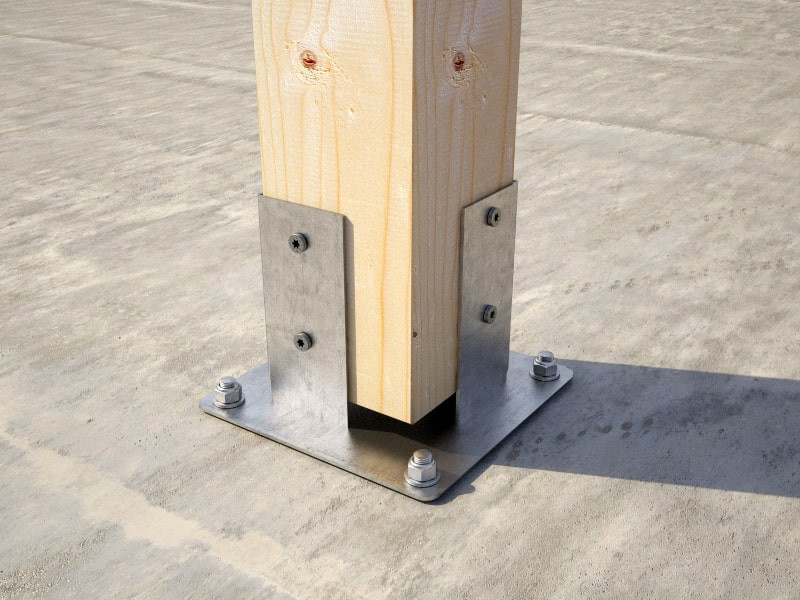

F12
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| F1270 | 72 | 60 | 100 | 2.5 | 1 |
| F1280 | 82 | 60 | 100 | 2.5 | 1 |
| F1290 | 92 | 70 | 120 | 2.5 | 1 |
| F12100 | 102 | 80 | 120 | 2.5 | 1 |
| F12120 | 122 | 100 | 140 | 2.5 | 1 |
| F12140 | 142 | 120 | 160 | 3 | 1 |
| F12160 | 162 | 140 | 180 | 3 | 1 |

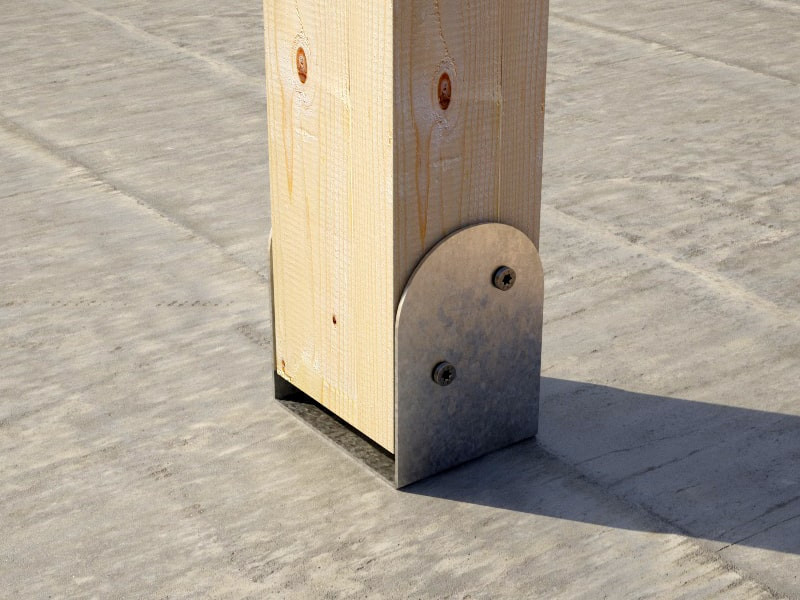

F11
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| F1190 | 91 | 91 | 150 | 2.5 | 1 |
| F11100 | 101 | 101 | 150 | 2.5 | 1 |
| F11120 | 121 | 121 | 150 | 2.5 | 1 |
| F11140 | 141 | 141 | 200 | 3 | 1 |
| F11160 | 161 | 161 | 200 | 3 | 1 |

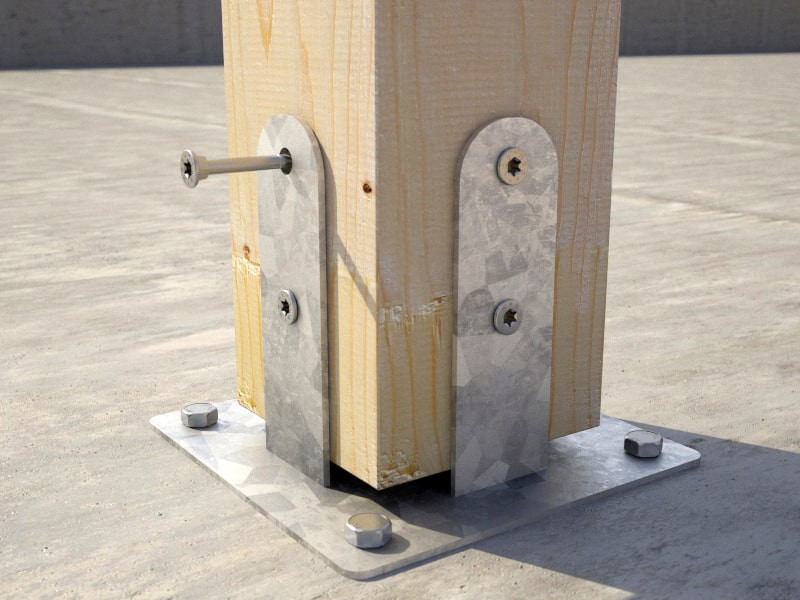

F51
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| F51120 | 121 | 121 | 150 | 3 | 1 |
| F51140 | 141 | 141 | 200 | 3 | 1 |
| F51160 | 161 | 161 | 200 | 4 | 1 |
| F51200 | 201 | 201 | 225 | 4 | 1 |
F69
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| F69100 | 101 | 101 | 150 | 2.5 | 1 |
| F69120 | 121 | 121 | 150 | 2.5 | 1 |
| F69160 | 161 | 161 | 200 | 3 | 1 |
| F69200 | 201 | 201 | 220 | 3 | 1 |

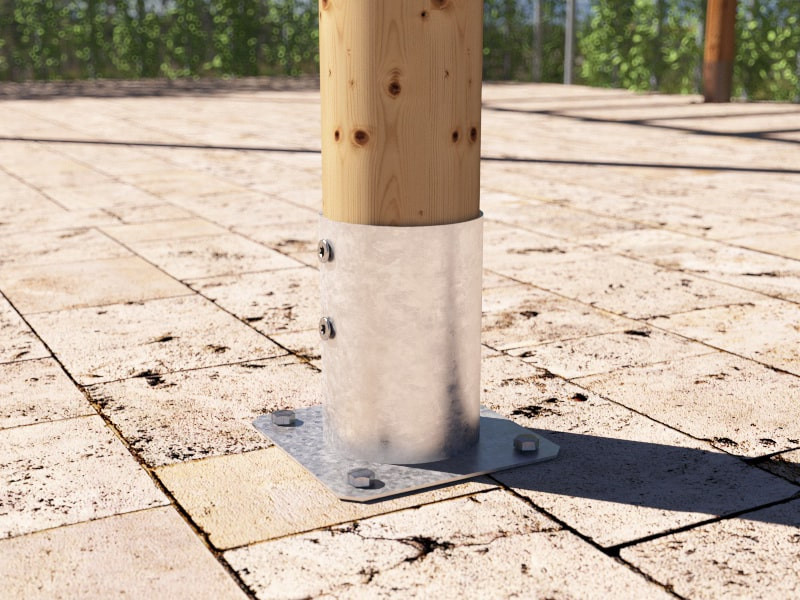

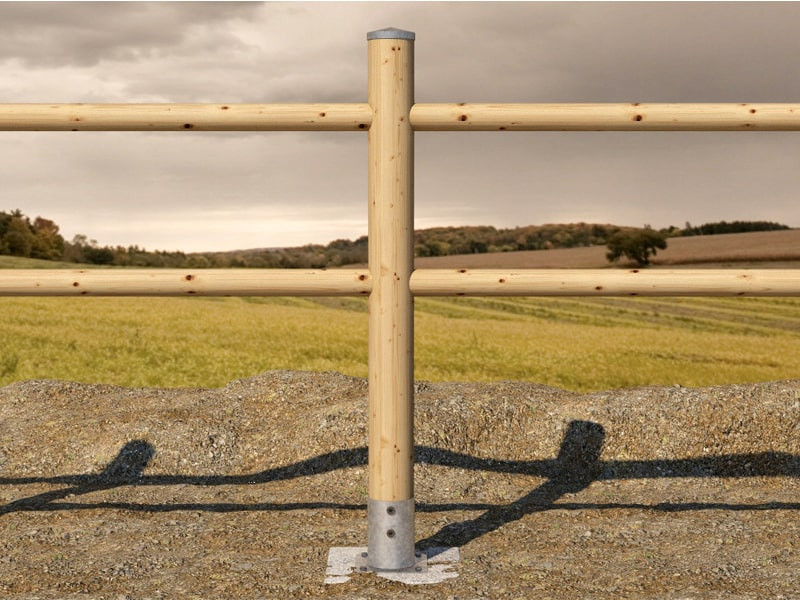

F20
| CODE | Ø
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| F2080 | Ø81 | 150 | 2 | 1 |
| F20100 | Ø101 | 150 | 2 | 1 |
| F20120 | Ø121 | 150 | 2 | 1 |
| F20140 | Ø141 | 150 | 2 | 1 |
LIFT
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LIFT20 | 60 | 60 | 20 | 3 | 1 |
Specifications
Supply and installation of “T” shaped post base with internal knife plate for timber structures, Type TYP F70.
Field of use:
- Concealed joints for columns
Material:
- Hot dip bright zinc plated carbon steel
Geometry:
- H (mm) = :
- Bottom plate (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
