CONCEALED HOOK TIMBER-TO-CONCRETE CONNECTOR
UV-C

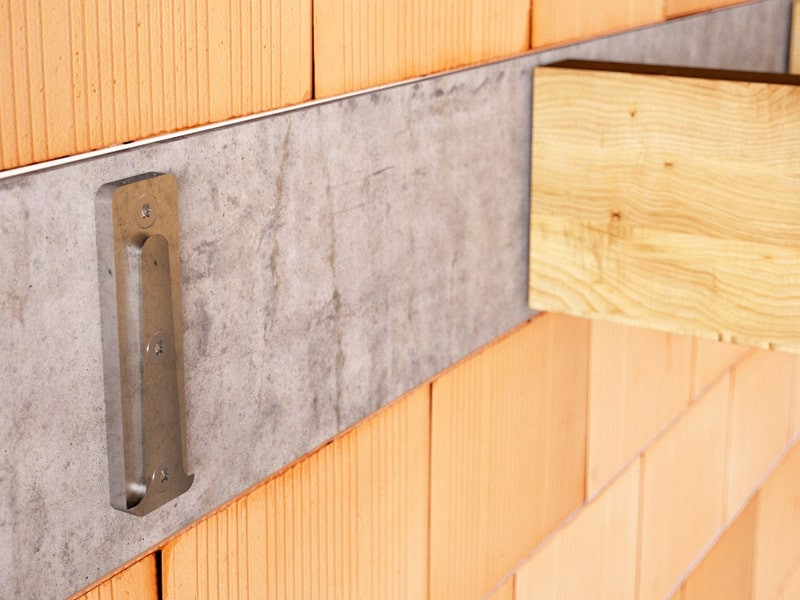

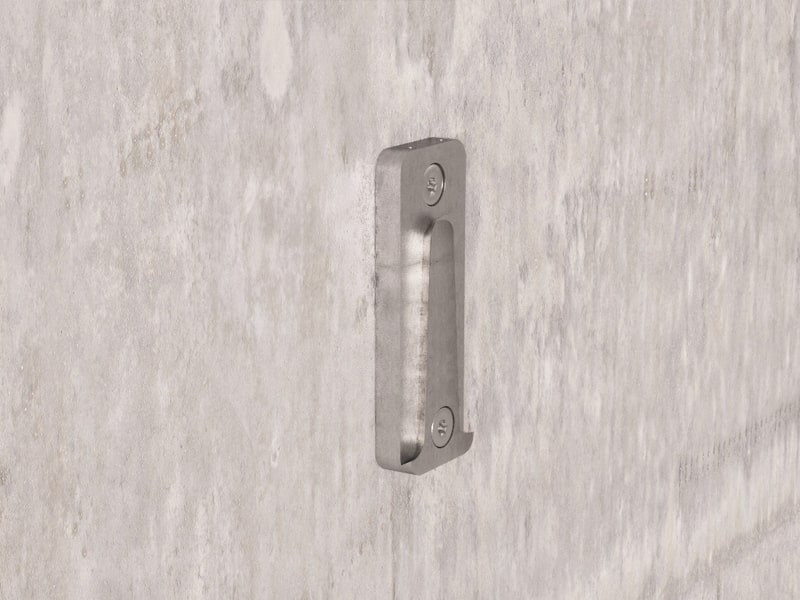

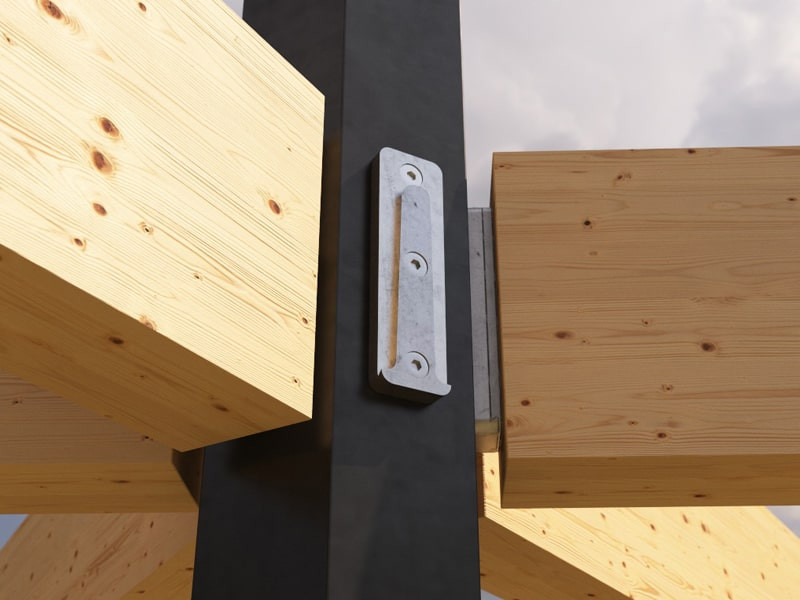

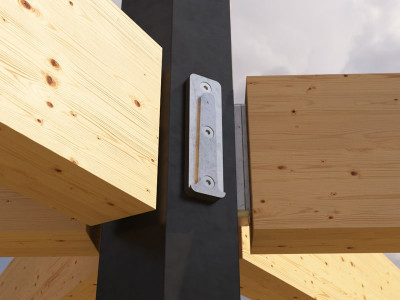

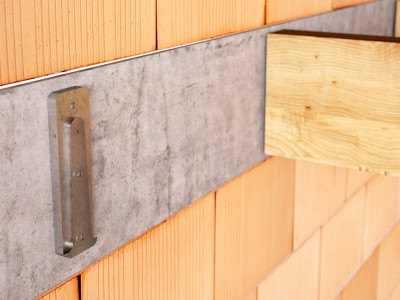

Calculated and certified joint for fastening secondary beams to concrete supports (beams or columns) and steel supports. The hanging system is quick to install and can be easily removed ; ideal for the construction of temporary structures.
The UV-C concealed connector makes it really easy to build composite structures that are easy to disassemble
Videos
The additional locking screws included in the package guarantee strength for bottom-to-up forces.

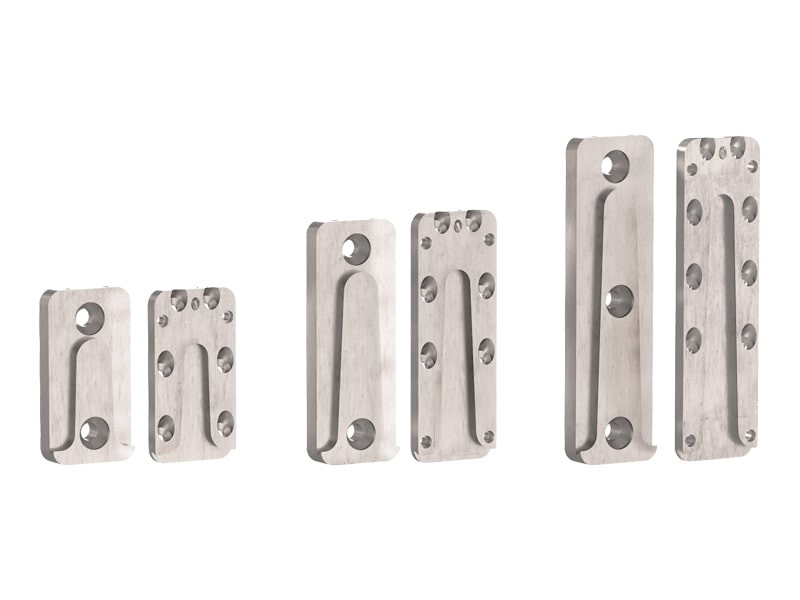

The aluminium alloy three dimensional perforated plate is ideal for making timber-to-concrete shear joints and applications requiring strength in all directions; it is also suitable for use with solid timber and glulam, CLT and LVL.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
File CAD
|
Specifications
Supply and installation of concealed hook timber-to-concrete connector, Type UV-C.
CE marking in accordance with ETA
Field of use:
- Timber to concrete joints
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
Angle bracket: :
-
H (mm) = :
-Bottom plate (mm) = : -
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
