PINNED CONNECTION FOR POST AND BEAM
ALUMEGA
ALUMEGA is the connector that standardizes beam-to-beam and beam-to-post joints for post-and-beam systems, even with large spans.
With ALUMEGA post and beam connector, the theoretical behaviour assumed in the design of timber-to-timber connections is enabled:
- It acts as post and beam connectors that allows free rotation of the beam at the ends
- In case of earthquake or wind, the connection follows the column rotation preserving shear resistance for gravitational loads from the floor and reducing structural damage
- The possibility of placing several modules side by side makes it possible to solve all connections on timber, concrete and steel
Videos
ALUMEGA: installation tolerance and rotational capacity.
It is the post and beam connector with the widest installation tolerance of any high-capacity connector on the market:
• due to the horizontally slotted holes, ALUMEGA can slide 8mm (+-4mm) in the axial direction
• its special geometry allows a lateral tolerance perpendicular to the secondary beam
• after a stringent regulatory process, it has been tested and certified according to ETA-23/0824
Thanks to the slotted holes, the connection is ideal for preventing seismic damage. The static pinned behaviour avoids bending moments at the supports due to beam deflection.
ALUMEGA: pre-installable and easy to assemble.

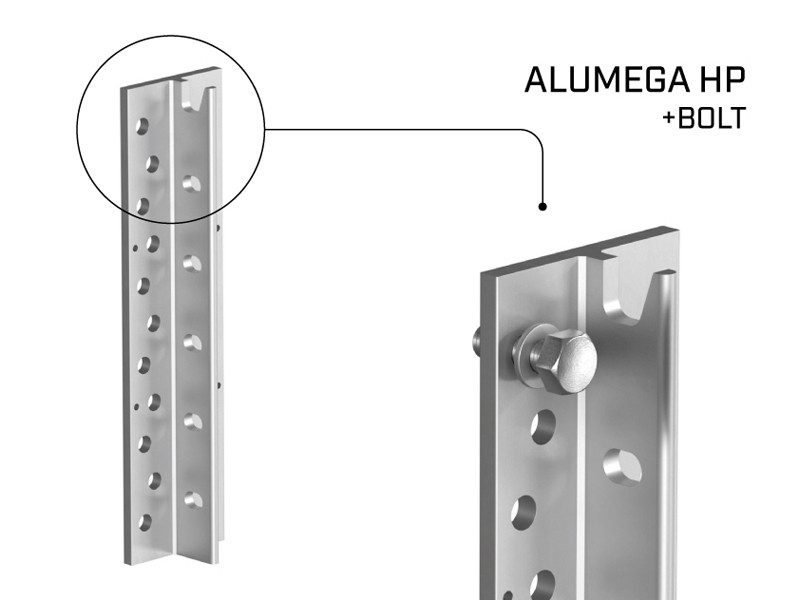

The upper countersink allows using a bolt as a positioning aid. The connection can be pre-assembled in the factory and completed on site with simple steel bolts.
Documents
Technical data sheets
|
|
|---|---|
ETA Certificate
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|

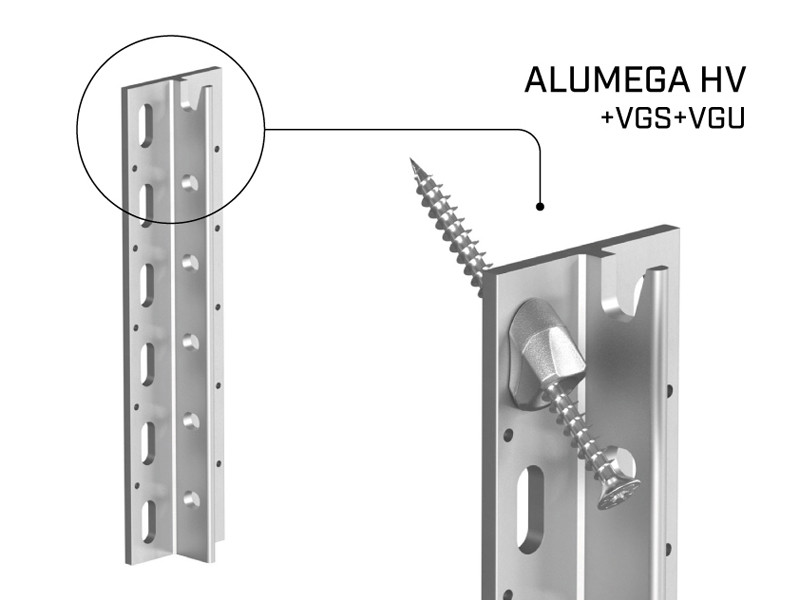

HV - HEADER CONNECTOR FOR TIMBER WITH INCLINED SCREWS
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| ALUMEGA240HV | 95 | 50 | 240 | 1 |
| ALUMEGA360HV | 95 | 50 | 360 | 1 |
| ALUMEGA480HV | 95 | 50 | 480 | 1 |
| ALUMEGA600HV | 95 | 50 | 600 | 1 |
| ALUMEGA720HV | 95 | 50 | 720 | 1 |
| ALUMEGA840HV | 95 | 50 | 840 | 1 |

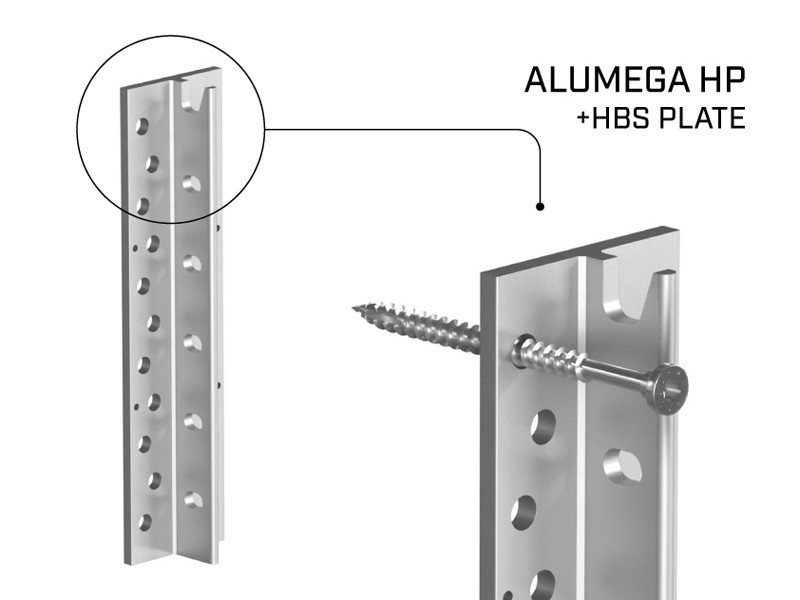

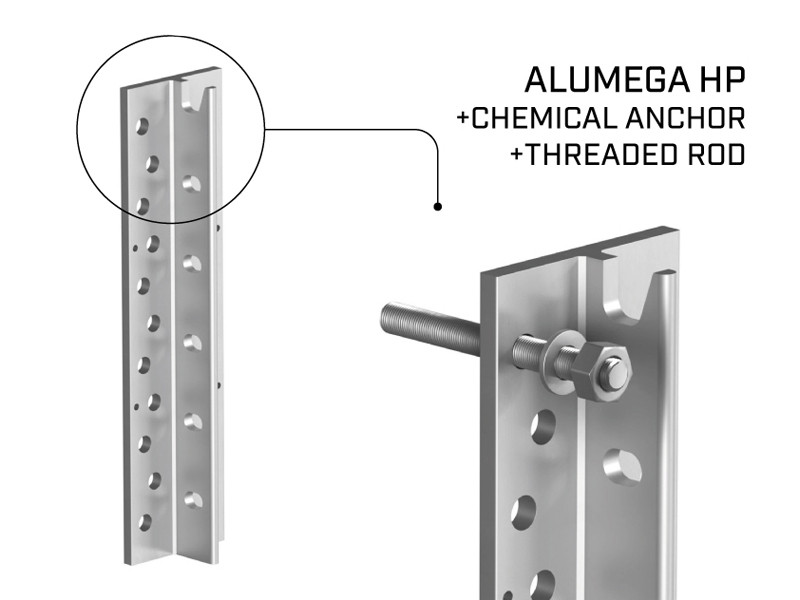

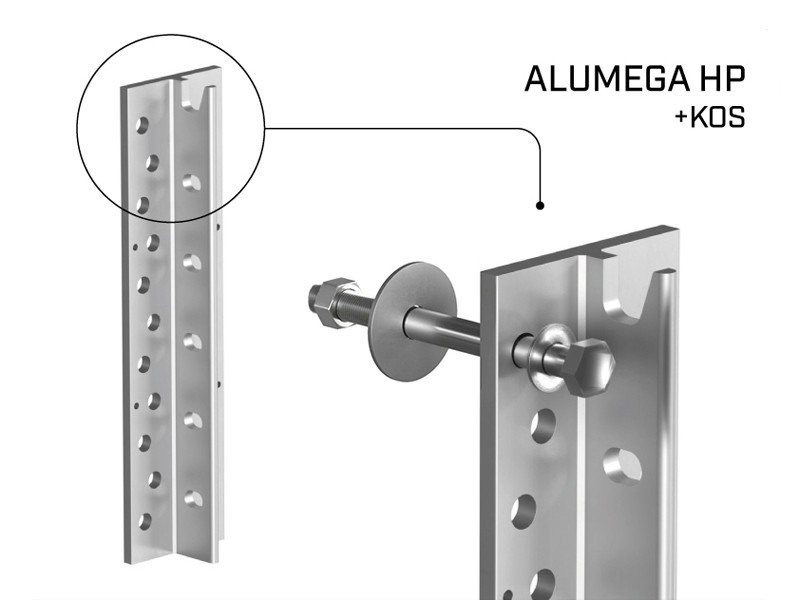

HP - HEADER CONNECTOR FOR TIMBER, CONCRETE AND STEEL
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| ALUMEGA240HP | 95 | 50 | 240 | 1 |
| ALUMEGA360HP | 95 | 50 | 360 | 1 |
| ALUMEGA480HP | 95 | 50 | 480 | 1 |
| ALUMEGA600HP | 95 | 50 | 600 | 1 |
| ALUMEGA720HP | 95 | 50 | 720 | 1 |
| ALUMEGA840HP | 95 | 50 | 840 | 1 |

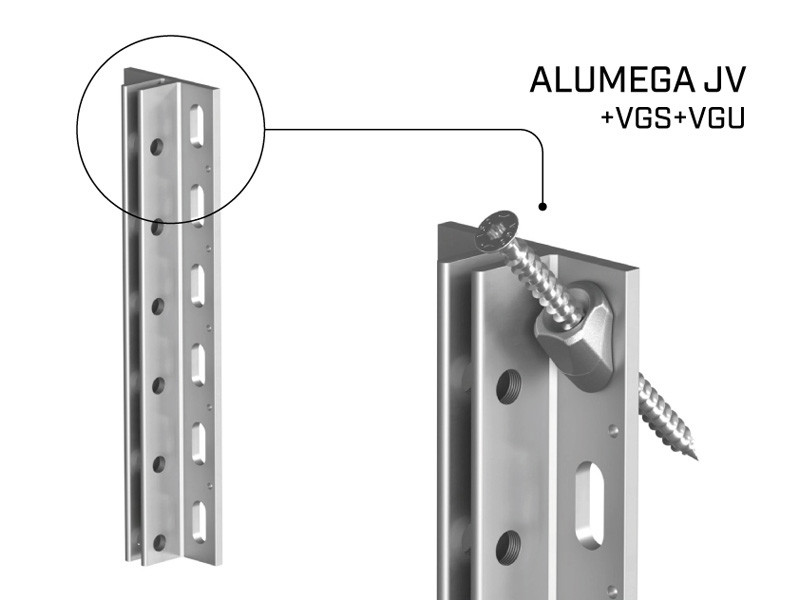

JV - JOIST CONNECTOR WITH INCLINED SCREWS
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| ALUMEGA240JV | 95 | 49 | 240 | 1 |
| ALUMEGA360JV | 95 | 49 | 360 | 1 |
| ALUMEGA480JV | 95 | 49 | 480 | 1 |
| ALUMEGA600JV | 95 | 49 | 600 | 1 |
| ALUMEGA720JV | 95 | 49 | 720 | 1 |
| ALUMEGA840JV | 95 | 49 | 840 | 1 |

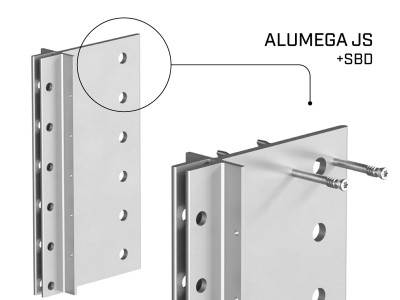

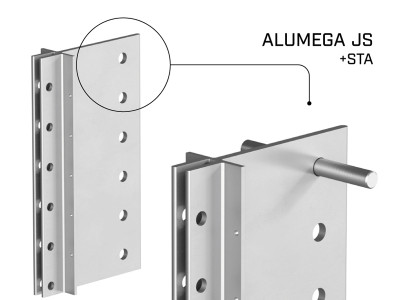

JS - JOIST CONNECTOR WITH STA/SBD DOWELS
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| ALUMEGA240JS | 68 | 49 | 240 | 1 |
| ALUMEGA360JS | 68 | 49 | 360 | 1 |
| ALUMEGA480JS | 68 | 49 | 480 | 1 |
| ALUMEGA600JS | 68 | 49 | 600 | 1 |
| ALUMEGA720JS | 68 | 49 | 720 | 1 |
| ALUMEGA840JS | 68 | 49 | 840 | 1 |
MEGABOLT - CYLINDRICAL HEAD BOLT WITH HEXAGON SOCKET
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| MEGABOLT12030 | 12 | 30 | 100 |
| MEGABOLT12150 | 12 | 150 | 50 |
| MEGABOLT12270 | 12 | 270 | 25 |
