ZVB
ZVB - HOOKS FOR BRACINGS

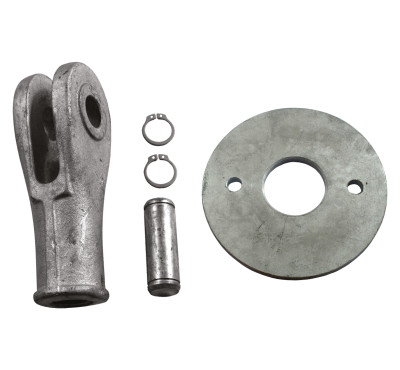

Hooks, disks and tensioners for the construction of bracing systems. Bracing rods are not supplied.
Documents
-
Technical data sheets
-
ETA Certificate
-
Item specification
-
File CAD

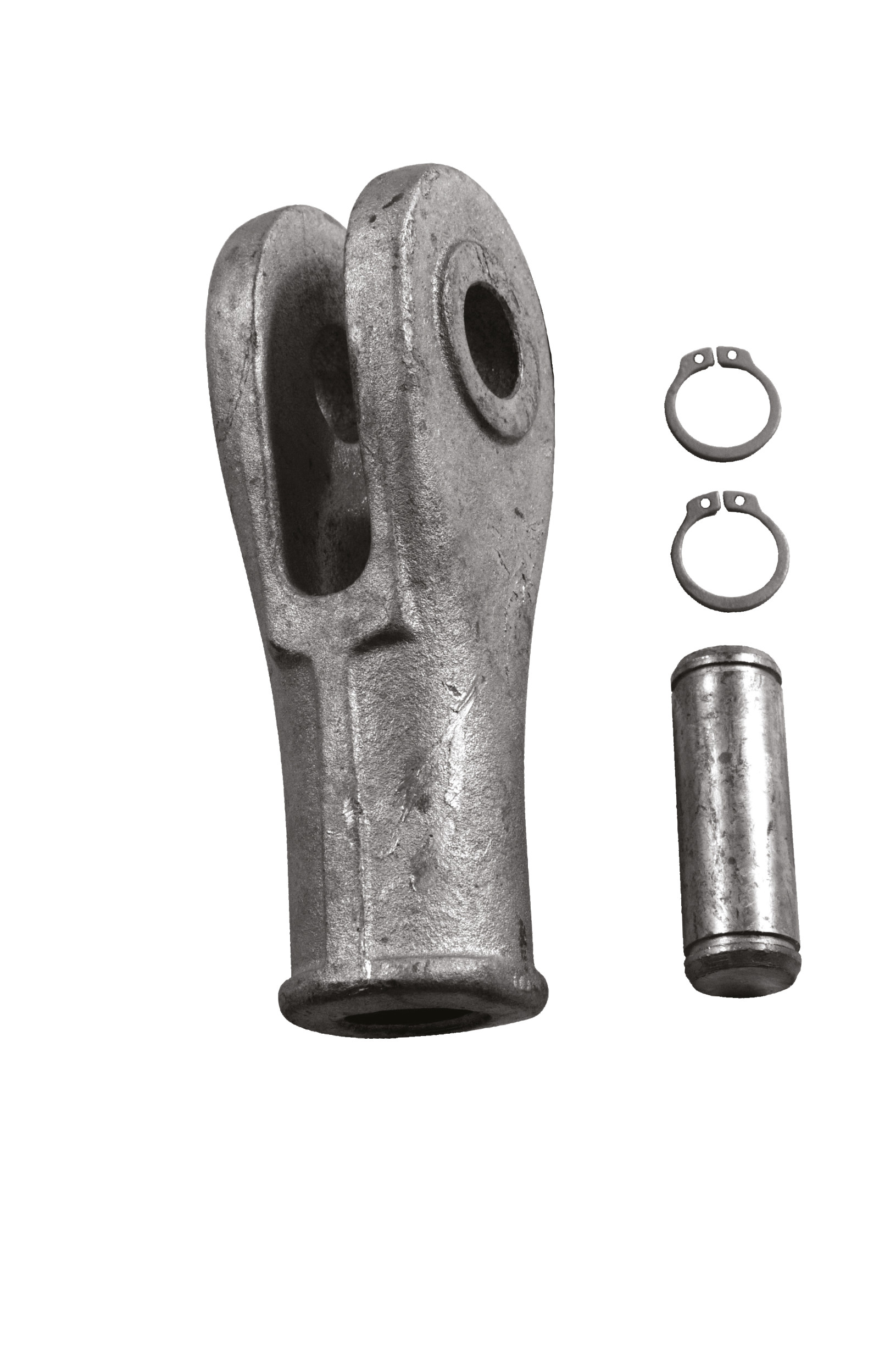

HOOK FOR BRACINGS
| CODE | Ø
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ZVBDX10 | M10 | 8 | 1 |
| ZVBSX10 | M10 | 8 | 1 |
| ZVBDX12 | M12 | 10 | 1 |
| ZVBSX12 | M12 | 10 | 1 |
| ZVBDX16 | M16 | 15 | 1 |
| ZVBSX16 | M16 | 15 | 1 |
| ZVBDX20 | M20 | 18 | 1 |
| ZVBSX20 | M20 | 18 | 1 |
| ZVBDX24 | M24 | 20 | 1 |
| ZVBSX24 | M24 | 20 | 1 |
| ZVBDX30 | M30 | 25 | 1 |
| ZVBSX30 | M30 | 25 | 1 |

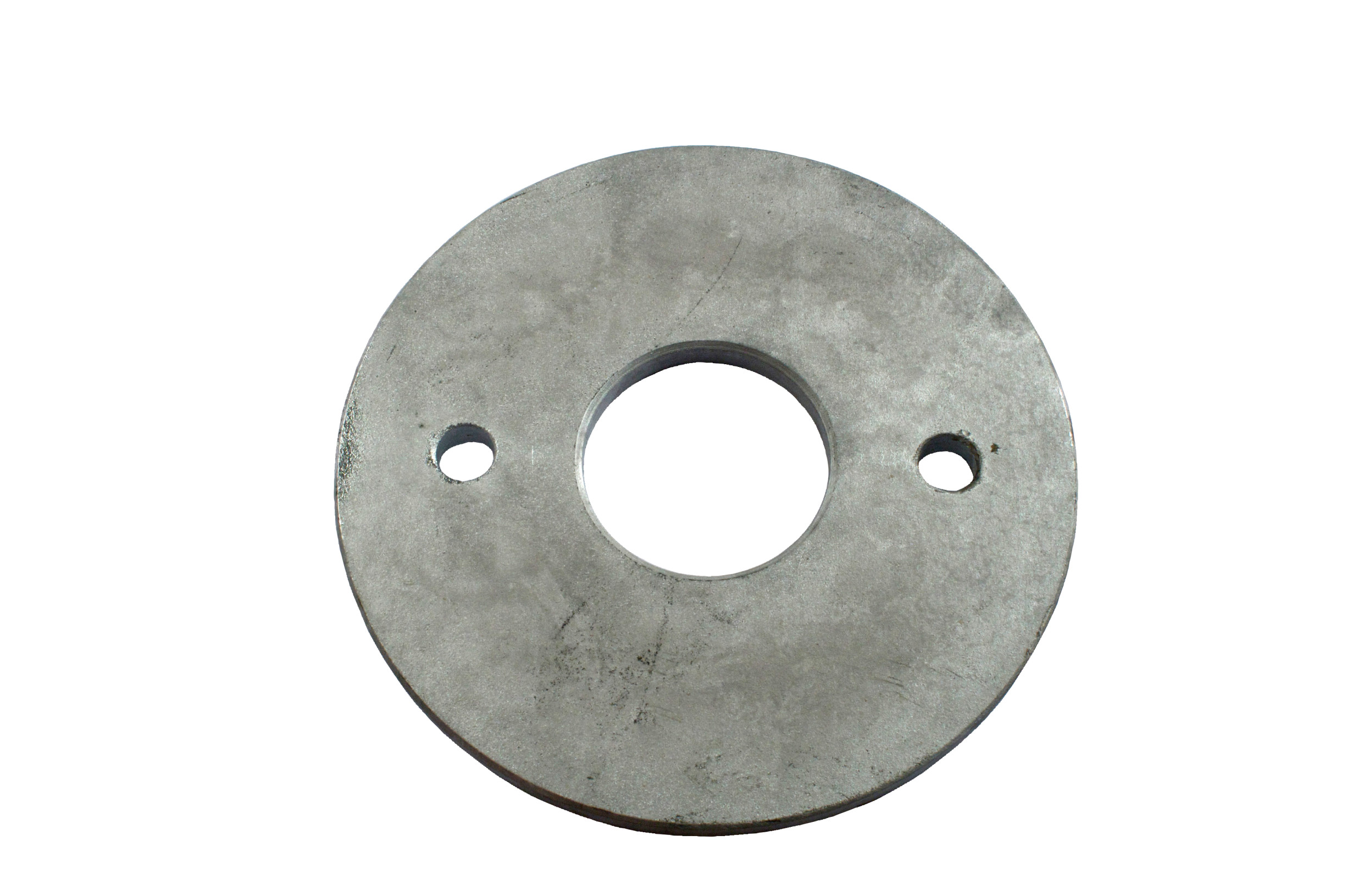

DISK FOR BRACINGS
| CODE | Ø
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ZVBDISC10 | M10 | 8 | 1 |
| ZVBDISC12 | M12 | 10 | 1 |
| ZVBDISC16 | M16 | 15 | 1 |
| ZVBDISC20 | M20 | 18 | 1 |
| ZVBDISC24 | M24 | 20 | 1 |
| ZVBDISC30 | M30 | 25 | 1 |
