ANGLE BRACKET FOR TENSILE LOADS

WHT

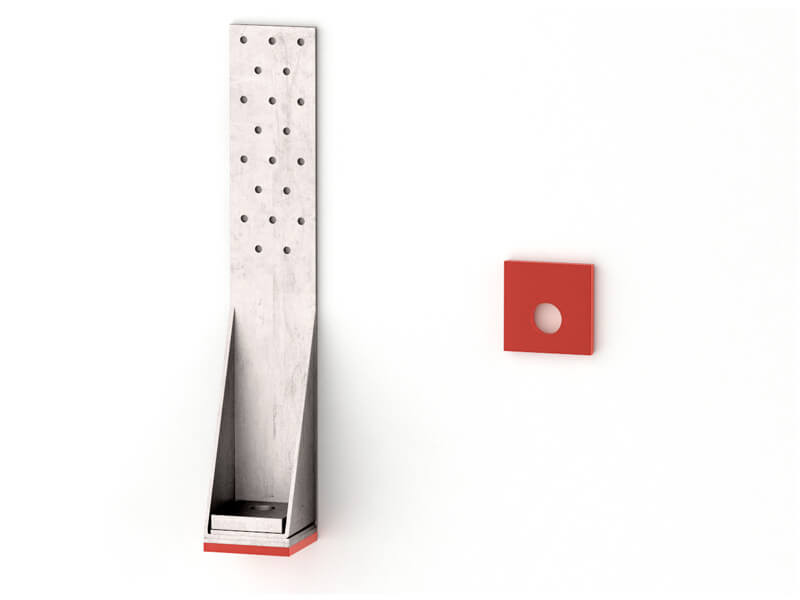

WHT is the angle bracket for timber made in 5 sizes which, in combination with the 5 washers available, determines 10 possible configurations to meet any static performance requirement.

WHT
Description
Documents
Codes and dimensions
Technical Data
Composition
Specifications
Related products

WHT ANGLE PLATES FOR TIMBER, A HOLD DOWN FOR EVERY STATIC PERFORMANCE REQUIREMENT

The 5 angle plate versions can be combined with one or more washers to allow designers and carpenters to find the suitable application, on both solid timber (CLT - Cross Laminated Timber) and framed (Platform frame) panels.

S355 steel, lateral reinforcing flanges and the larger diameter hole ensure high strength values also in case of partial nailing. The quality of the WHT plates is proven by multiple testing on the product and the related fasteners (nails, screws, threaded rods and chemical anchor).

Within the Seismic-rev research project framework, the joint and the related fastening elements were tested under static and cyclic loading, providing stiffness parameters (Kser) and ductility classes.

The WHT angle bracket is ideal for the construction of timber-to-concrete and timber-to-timber tensile joints for CLT panels and beams, framed structure, timber-based panels, LVL, solid timber and glulam.

Find the nearest agent Download the catalogue

Documents

Technical data sheets	Choose a Language
Technical data sheets USA	Choose a Language
ETA Certificate	Choose a Language
Declaration of performance (DOP)	Download
Item specification	Choose a Language
File CAD	Choose a Language
File BIM.ifc	Choose a Language
File BIM.rfa	Choose a Language

Find the nearest agent Download the catalogue

WHT ANGLE BRACKET

CODE	B [mm]	P [mm]	H [mm]	pcs.
WHT340	60	63	340	10
WHT440	60	63	440	10
WHT540	60	63	540	10
WHT620	80	83	620	10
WHT740	140	83	740	1

WHTW WASHER

CODE	d₁ [mm]	B [mm]	P [mm]	s [mm]	pcs.
WHTW50	18	50	56	10	80
WHTW50L	22	50	56	10	80
WHTW70	22	70	77	20	20
WHTW70L	26	70	77	20	20
WHTW130	29	130	77	40	1

Specifications

WHT

Supply and installation of angle bracket for tensile forces for timber structures, Type WHT.
CE marking in accordance with ETA 11/0086

Field of use:

Joints for timber-to-concrete, OSB-to-concrete, timber-to-timber, timber-to-OSB and timber-to-steel

Material:

Bright zinc plated carbon steel, three dimensional perforated plate

Geometry:

H (mm) = :
Hole at the base (mm) = : Ø
Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.

WHT + WASHER

Supply and installation of angle bracket for tensile forces for timber structures, Type WHT + washer.
CE marking in accordance with ETA 11/0086

Field of use:

Joints for timber-to-concrete, OSB-to-concrete, timber-to-timber, timber-to-OSB and timber-to-steel

Material:

Bright zinc plated carbon steel, three dimensional perforated plate

Geometry:

Angle bracket: :
H (mm) = :
Hole at the base (mm) = : Ø

Washer:

Thickness s (mm) = :
Hole (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.

WHT XXL + WASHER

Supply and installation of angle bracket for high tensile forces for timber structures, Type WHT XXL + washer.
CE marking in accordance with ETA 11/0086

Field of use:
