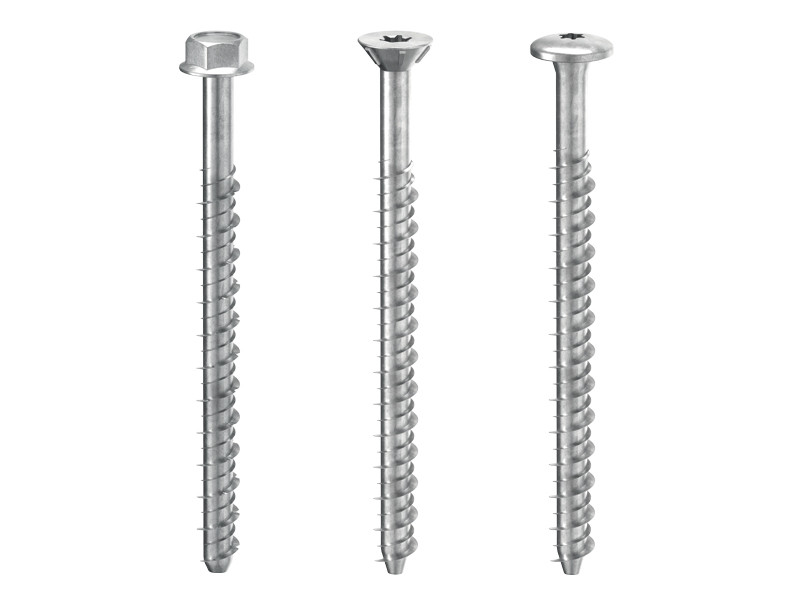

SKR | SKS | SKP
SCREW ANCHOR FOR CONCRETE
The SKR and SKS concrete anchors are quick and easy to use.
The special threading requires a small pre-drill and guarantees fastening on concrete without creating expansion stresses within it. Reduced minimum distances.

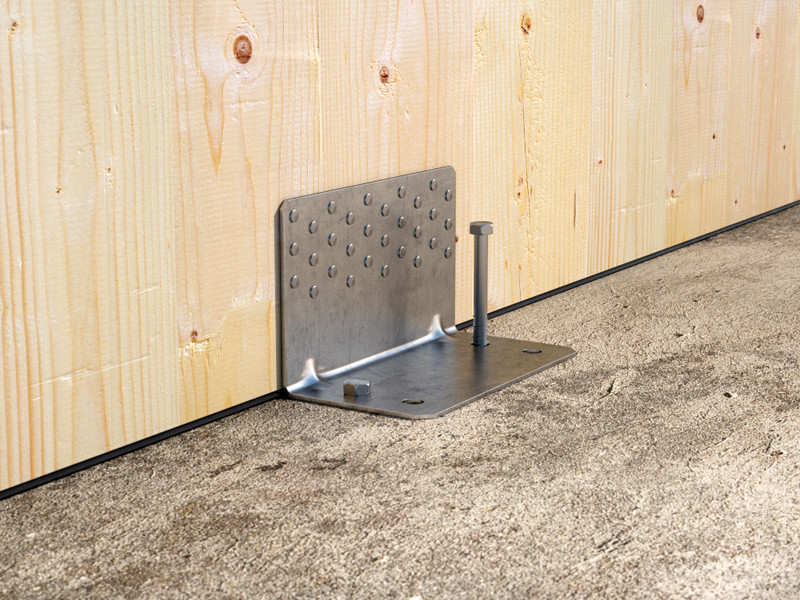

SKR and SKS concrete anchors, the ideal combination of concrete and timber or steel.
SKR
| CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| SKR8100 | 8 | 100 | 50 |
| SKR1080 | 10 | 80 | 50 |
| SKR10100 | 10 | 100 | 25 |
| SKR10120 | 10 | 120 | 25 |
| SKR1290 | 12 | 90 | 25 |
| SKR12110 | 12 | 110 | 25 |
| SKR12150 | 12 | 150 | 25 |
| SKR12210 | 12 | 210 | 20 |
| SKR12250 | 12 | 250 | 15 |
| SKR12290 | 12 | 290 | 15 |
| SKR16130 | 16 | 130 | 10 |
SKS
| CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| SKS8100 | 8 | 100 | 50 |
| SKS10100 | 10 | 100 | 50 |
