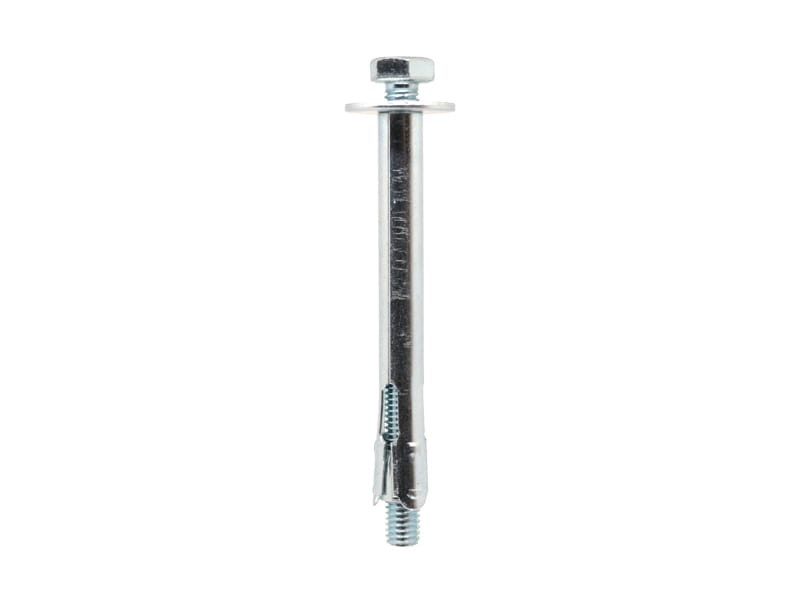

MEDIUM HEAVY ANCHOR
AHZ
8.8 grade screw with hexagonal head.
DIN 9021 large size washer.
Made of electrogalvanized carbon steel.
Through fastening.
Torque-controlled expansion.
Suitable for dense materials.
Documents
Technical data sheets
|
|---|
AHZ
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| AHZ870 | M6/Ø8 | 70 | SW10 | 100 |
| AHZ1080 | M8/Ø10 | 80 | SW13 | 50 |
| AHZ10100 | M8/Ø10 | 100 | SW13 | 50 |
| AHZ10120 | M8/Ø10 | 120 | SW13 | 30 |
| AHZ12100 | M10/Ø12 | 100 | SW17 | 25 |
