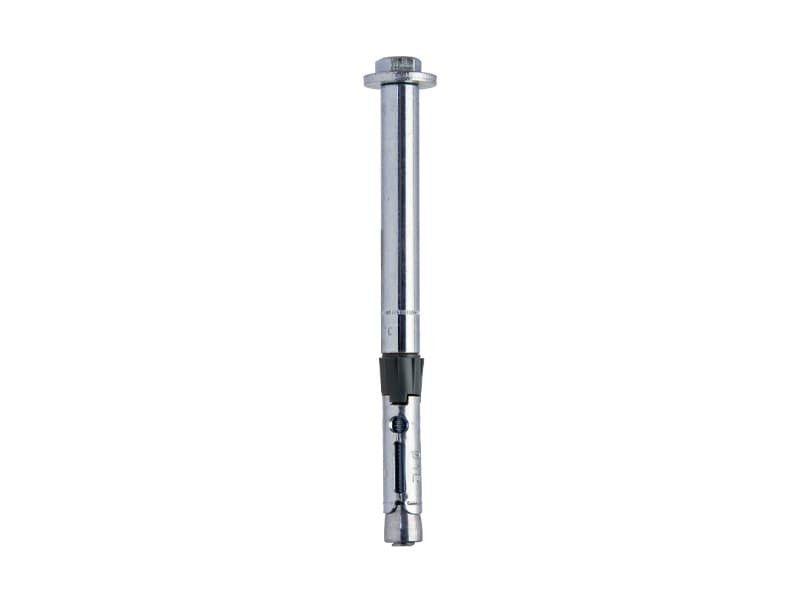

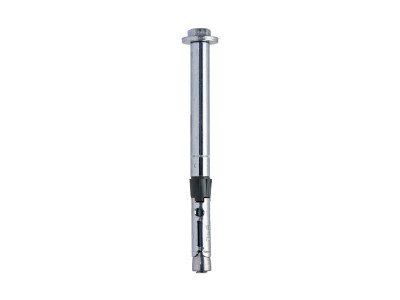

HEAVY-DUTY EXPANSION ANCHOR WITH CLAMP CE1
ABS
CE option 1 for cracked and uncracked concrete. Seismic performance category C1 and C2.
Made of electrogalvanized carbon steel.
Fire resistance R120.
8.8 grade screw with hexagonal head and washer.
Suitable for dense materials. Through fastening.
Torque-controlled expansion.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
ABS
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| ABS1070 | M6/Ø10 | 70 | SW10 | 50 |
| ABS10100 | M6/Ø10 | 100 | SW10 | 50 |
| ABS12100 | M8/Ø12 | 100 | SW13 | 25 |
| ABS12120 | M8/Ø12 | 120 | SW13 | 25 |
| ABS16120 | M10/Ø16 | 120 | SW17 | 20 |
| ABS16140 | M10/Ø16 | 140 | SW17 | 20 |
