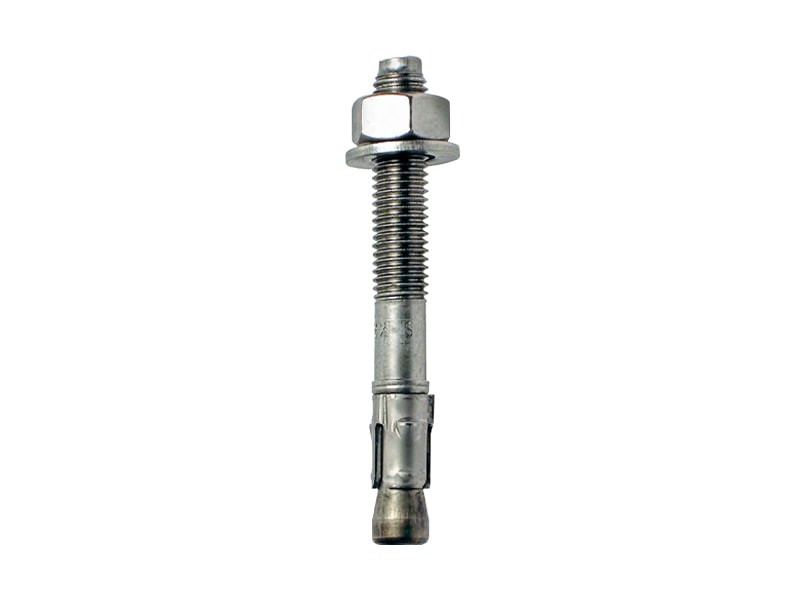

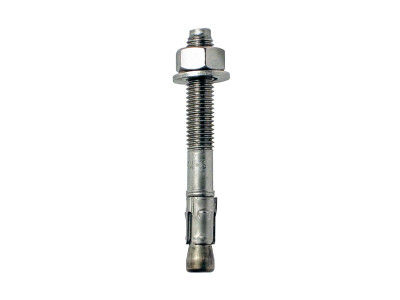

CE1 STAINLESS STEEL HEAVY-DUTY EXPANSION ANCHOR
AB1 A4
CE option 1 for cracked and uncracked concrete. Seismic performance category C1. Made of A4 stainless steel. Fire resistance R120. Complete with nut and washer, suitable for dense materials. Through fastening. Torque-controlled expansion.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
AB1 A4
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| AB1892A4 | M8 | 92 | SW13 | 50 |
| AB18112A4 | M8 | 112 | SW13 | 50 |
| AB11092A4 | M10 | 92 | SW17 | 50 |
| AB110132A4 | M10 | 132 | SW17 | 25 |
| AB112118A4 | M12 | 118 | SW19 | 20 |
| AB116138A4 | M16 | 138 | SW24 | 10 |
