SINGLE - DOUBLE

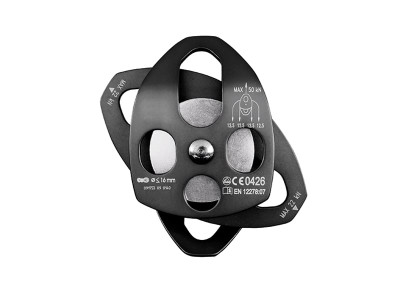

ALUMINIUM PULLEY WITH SINGLE - DOUBLE SHEAVE
SINGLE and DOUBLE aluminium pulleys are elements equipped with single or double sheave with movable flanges and high-efficiency (96%) ball bearings.
Description
They can be used with ropes up to a maximum diameter of 13 mm.
The DOUBLE version has two attachment points for use in complex lifting systems. Since the pulley is coloured black, it is hardly visible, making it ideal for even the most discreet applications.
Documents
-
Technical data sheets
SINGLE - DOUBLE
| CODE | material | measures
[mm]
|
peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| SINGLE | ALUMINIUM ALLOY | max. Ø13 | 0.245 | 1 |
| DOUBLE | ALUMINIUM ALLOY | max. Ø13 | 0.49 | 1 |
