WALKSAFE
WALKWAYS

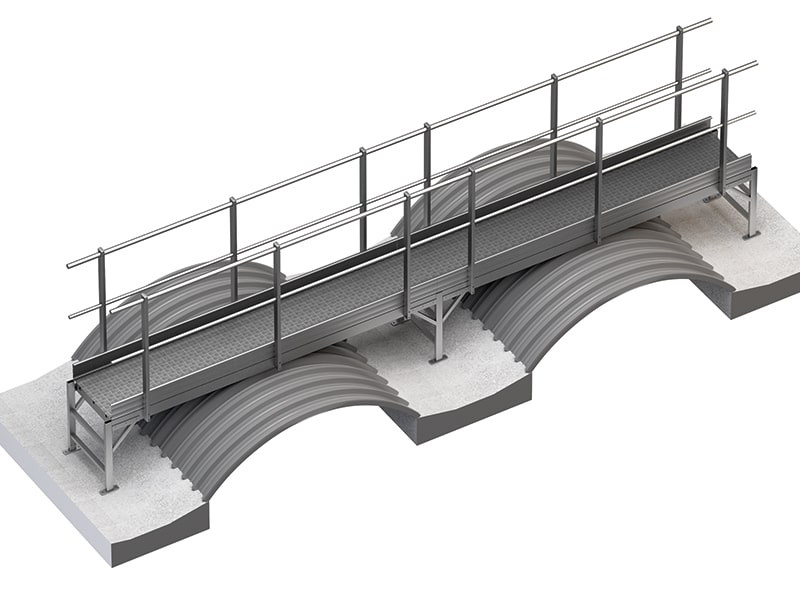

The non-slip, anti-oil, anti-heel and ice resistant coating of WALKSAFE walkways ensures safe footing at all times. They are available in standard 1,50 and 3,0 m long modules, from 60 to 80 cm wide. Additional sizes available upon request.
Description
WALKSAFE walkways: the guarantee of safe walking in all situations.

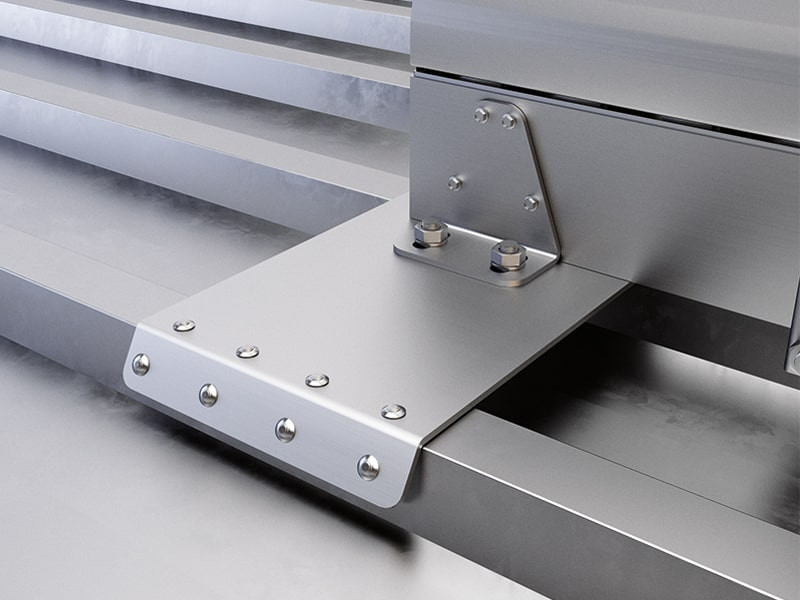

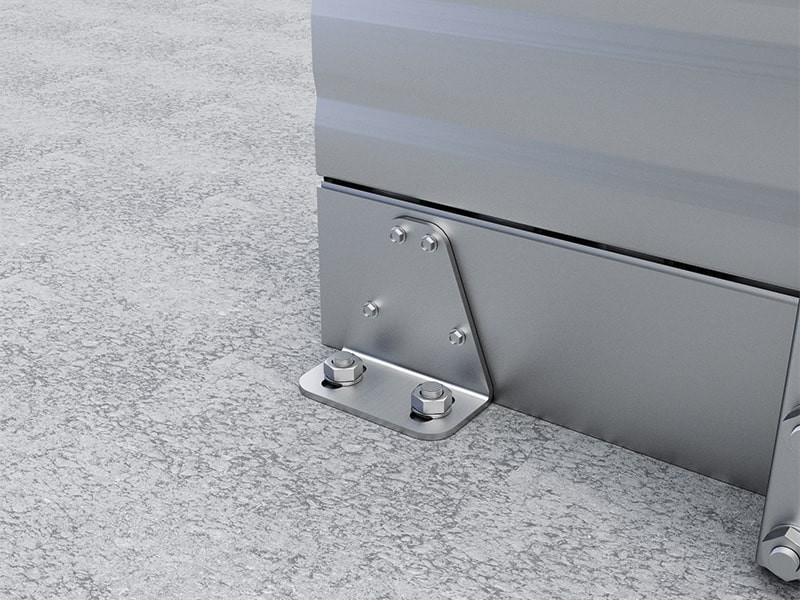

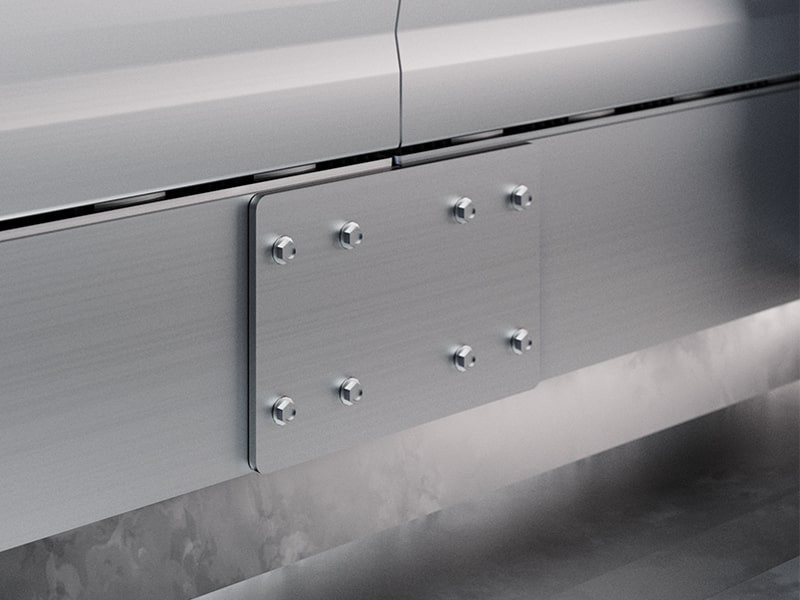

WALKSAFE walkways are modular: they can be supplied with or without railings and toe boards, or single-sided, and offer the possibility of direct fastening or with supports of various heights.
Documents
-
Technical data sheets
MODULO PASSARELLA
| CODE | description | B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|
| WALK615 | - | 600 | 1500 | 1 |
| WALK620 | - | 600 | 2000 | 1 |
| WALK625 | - | 600 | 2500 | 1 |
| WALK630 | - | 600 | 3000 | 1 |
| WALK815 | - | 800 | 1500 | 1 |
| WALK820 | - | 800 | 2000 | 1 |
| WALK825 | - | 800 | 2500 | 1 |
| WALK830 | - | 800 | 3000 | 1 |
MODULO PARAPETTO CON TAVOLA FERMAPIEDE OPZIONALE
| CODE | description | version | L
[mm]
|
pcs. |
|---|---|---|---|---|
| WALKG15 | - | railing module with toe board | 1500 | 1 |
| WALKG20 | - | railing module with toe board | 2000 | 1 |
| WALKG25 | - | railing module with toe board | 2500 | 1 |
| WALKG30 | - | railing module with toe board | 3000 | 1 |
SUPPORTI RIALZATI TERMINALI
| CODE | description | B
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WALKEND6200 | - | 600 | 200 | 1 |
| WALKEND6300 | - | 600 | 300 | 1 |
| WALKEND6400 | - | 600 | 400 | 1 |
| WALKEND6500 | - | 600 | 500 | 1 |
| WALKEND6600 | - | 600 | 600 | 1 |
| WALKEND8200 | - | 800 | 200 | 1 |
| WALKEND8300 | - | 800 | 300 | 1 |
| WALKEND8400 | - | 800 | 400 | 1 |
| WALKEND8500 | - | 800 | 500 | 1 |
| WALKEND8600 | - | 800 | 600 | 1 |
SUPPORTI RIALZATI INTERMEDI
| CODE | description | B
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WALKINT6200 | - | 600 | 200 | 1 |
| WALKINT6300 | - | 600 | 300 | 1 |
| WALKINT6400 | - | 600 | 400 | 1 |
| WALKINT6500 | - | 600 | 500 | 1 |
| WALKINT6600 | - | 600 | 600 | 1 |
| WALKINT8200 | - | 800 | 200 | 1 |
| WALKINT8400 | - | 800 | 400 | 1 |
| WALKINT8300 | - | 800 | 300 | 1 |
| WALKINT8500 | - | 800 | 500 | 1 |
| WALKINT8600 | - | 800 | 600 | 1 |
ALTRI SUPPORTI E GIUNZIONI
| CODE | description | H
[mm]
|
pcs. |
|---|---|---|---|
| WALKMET250 | - | 55 | 1 |
| WALKMET333 | - | 55 | 1 |
| WALKMET500 | - | 55 | 1 |
| WALKBASE | - | - | 1 |
| WALKJUN | - | - | 1 |
