HOOK SPIKE
ANCHOR POINT WITH LADDER HOOK

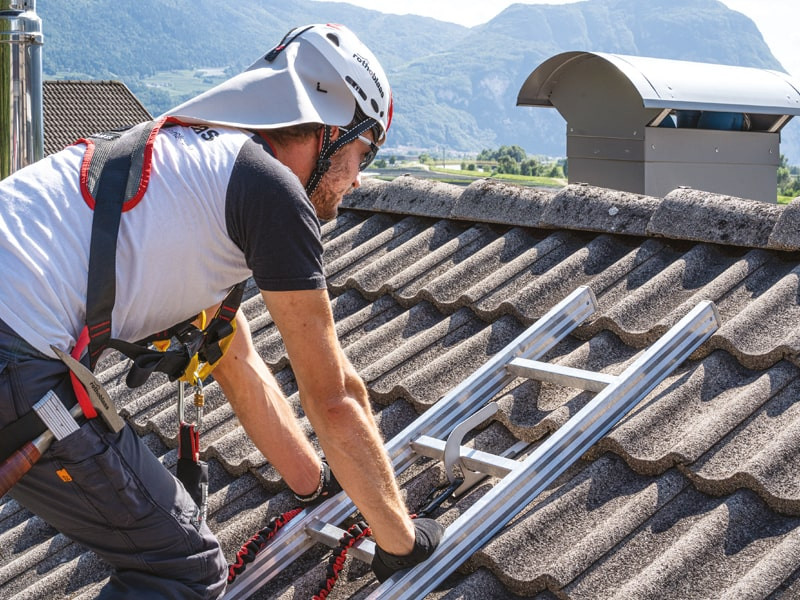

HOOK SPIKE is the anchor point with integrated ladder hook designed to be able to attach a portable ladder in order to facilitate the operator's ascent path on steep roofs. Tested according to the standard directly on the substructure, it guarantees safety and freedom of movement in all directions.
Description
HOOK SPIKE, the anchor point with integrated ladder hook.

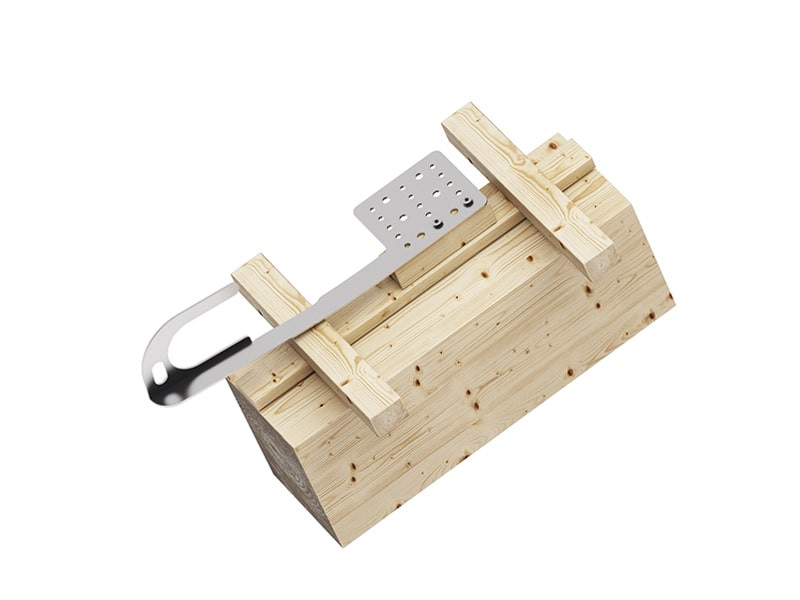

The HOOK SPIKE anchor point is versatile: thanks to the three different heights of the plate, it is possible to assemble the hook according to the type of tile installed on the roof. The system withstands plane stress (360°) and is designed for application on sloping timber roofs.
Documents
-
Technical data sheets
-
Declaration of performance (DOP)
-
Declaration of conformity
-
Safety regulations, instructions for installation and use
-
Declaration of Installation and inspection
-
Manual for installation and use
HOOK SPIKE
| CODE | description | material | B
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| HOOKS | - | AISI 304 stainless steel grade 1.4301 | 132 | - | 1 |
| HOOKS20 | - | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 1 |
| HOOKS50 | - | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 1 |
| HOOKSB | - | AISI 304 stainless steel grade 1.4301 | 132 | - | 1 |
| HOOKSB20 | - | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 1 |
| HOOKSB50 | - | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 1 |
| HOOKSA | - | AISI 304 stainless steel grade 1.4301 | 132 | - | 1 |
| HOOKSA20 | - | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 1 |
| HOOKSA50 | - | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 1 |
