H-RAIL OVERHEAD
HORIZONTAL OVERHEAD RAIL SYSTEM

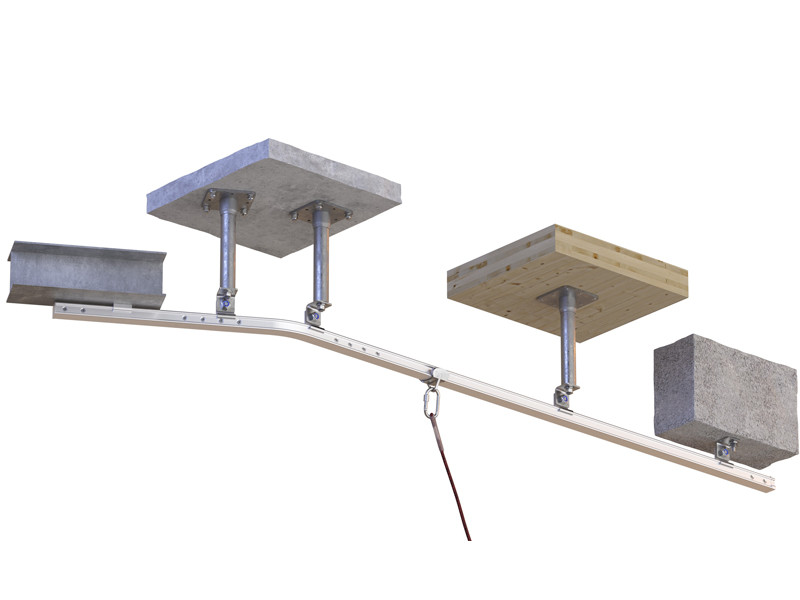

The rail can be assembled on various substructures with the appropriate mounting plates.
Overhead application of the rail allows operators to work with their hands free and safely by using sliding and retractable devices.
This system is also suitable and tested for suspended work for up to four simultaneous users.
Documents
-
Technical data sheets
-
Declaration of conformity
-
Safety regulations, instructions for installation and use
-
Declaration of Installation and inspection
-
Manual for installation and use
RAIL
| CODE | description | pcs. |
|---|---|---|
| RAIL3000 | 3m aluminium rail | 1 |
| RAILC90 | 90° aluminium bend for rail | 1 |
| RAILC120 | 120° aluminium bend for rail | 1 |
| RAILC135 | 135° aluminium bend for rail | 1 |
| RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
| CODE | description | pcs. |
|---|---|---|
| RAILBRAT | support element for rail | 1 |
| RAILBRAT12 | M12 plate for RAILBRAT | 1 |
| RAILBRAT16 | M16 plate for RAILBRAT | 1 |
| RAILBRATW | for fixing on wood | 1 |
| RAILBRAS | for direct fixing on steel | 1 |
TERMINAL ELEMENT
| CODE | description | pcs. |
|---|---|---|
| RAILEND | rail end-stop without exit | 1 |
| RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
| CODE | description | pcs. |
|---|---|---|
| RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
| CODE | description | pcs. |
|---|---|---|
| RAILSLIDE | sliding device | 1 |
| RAILSLIDEOH | slide for overhead application | 1 |
TOOL
| CODE | description | pcs. |
|---|---|---|
| RAILJUNTOOL | template for rail junction holes | 1 |
| RAILPLATE | Rail system ID plate | 1 |
FASTENING
| CODE | description | pcs. |
|---|---|---|
| RAILOCKSCREW | Lock screw | 50 |
| RAILSCREW | DIN 7991 A2-70 | 50 |
