TOWER

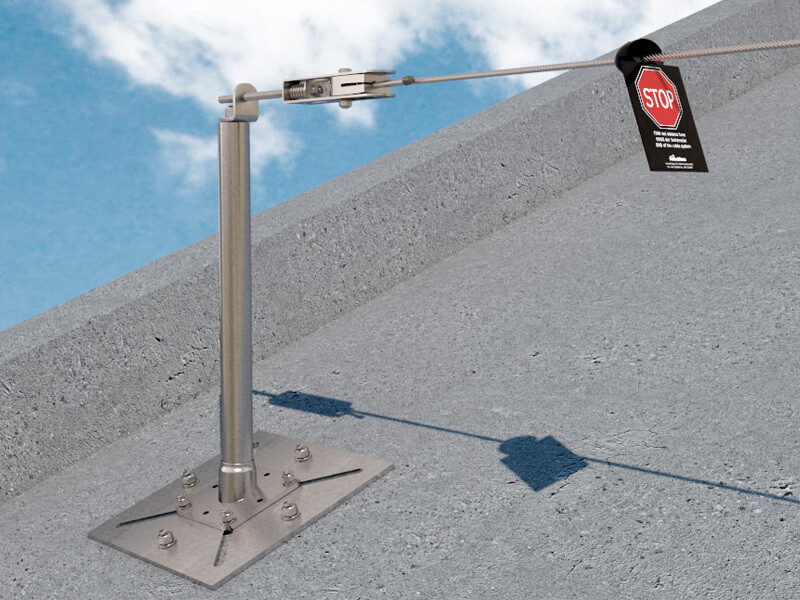

The TOWER support can be installed directly on timber, concrete or steel.
It is a device with controlled deformation which limits the transfer of load to the structure if the operator falls from a height.
Description
Discover TOWER, the support for timber, concrete and steel that guarantees your safety at work.
The TOWER support has a markedly elastic-plastic behaviour that makes it possible to reduce the load on the fastenings and structure in the event that an operator falls.

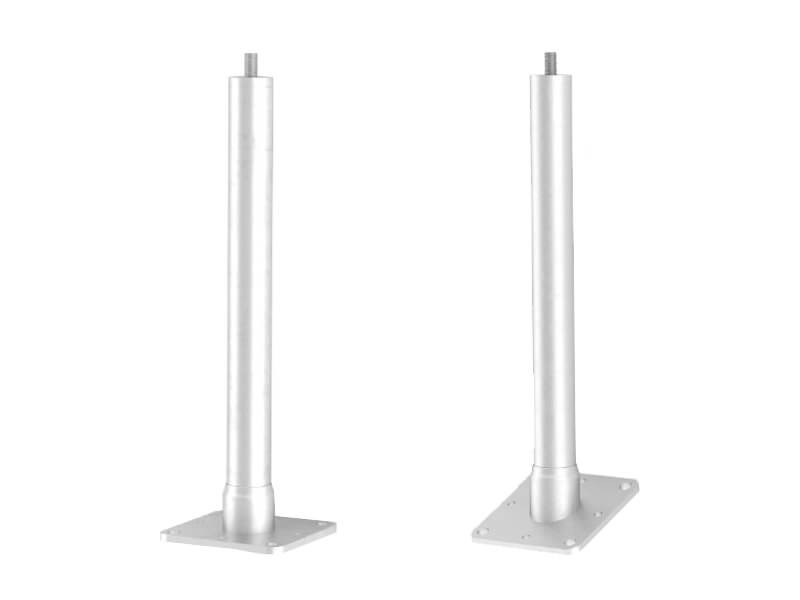

The height of the support in between 300 and 600 mm, to adapt to different roofing thicknesses.

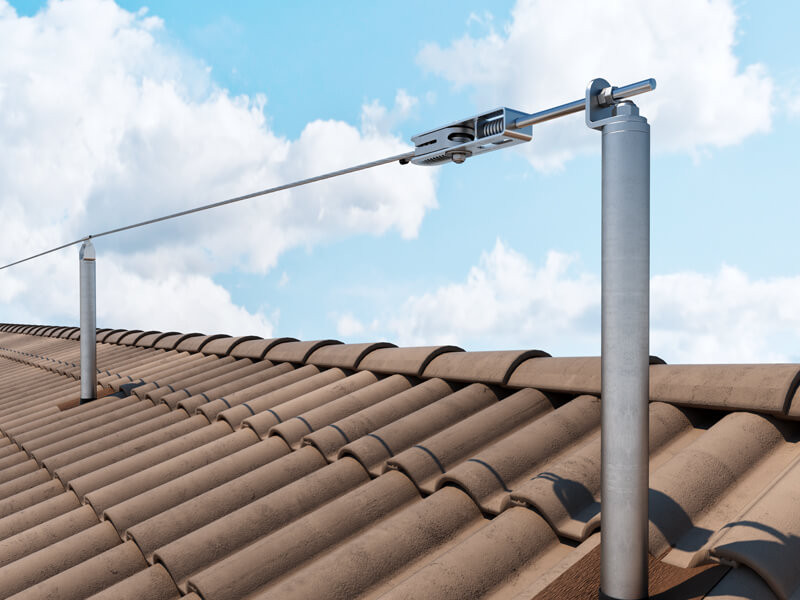

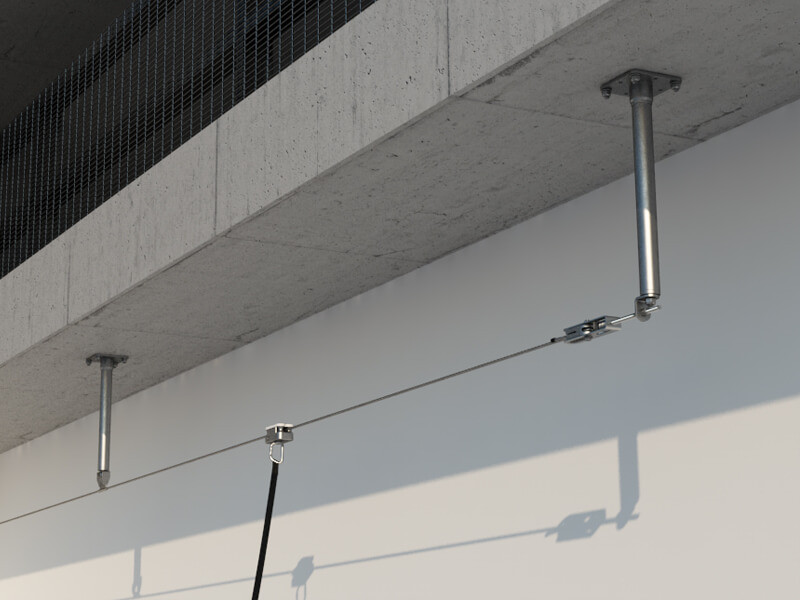

It is suitable for installation on flat and sloping surfaces, and for the creation of an overhead anchor line.
Once installed it ensures a low visual impact, for an aesthetically satisfactory result.
Maximum load: up to 4 operators
Documents
-
Australia Certificate
-
Declaration of conformity
-
Safety regulations, instructions for installation and use
-
File BIM.ifc
-
File BIM.rfa
-
Declaration of Installation and inspection
-
EAC certificate (anchor points)
-
EAC certificate (anchor lines)
-
Manual for installation and use
-
Installation manual
TOWER
| CODE | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TOWER300 | S235JR zinc-plated steel | 48 | 150 | 300 | 150 | 1 |
| TOWER400 | S235JR zinc-plated steel | 48 | 150 | 400 | 150 | 1 |
| TOWER500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
| TOWER600 | S235JR zinc-plated steel | 48 | 150 | 600 | 150 | 1 |
| TOWER22500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
