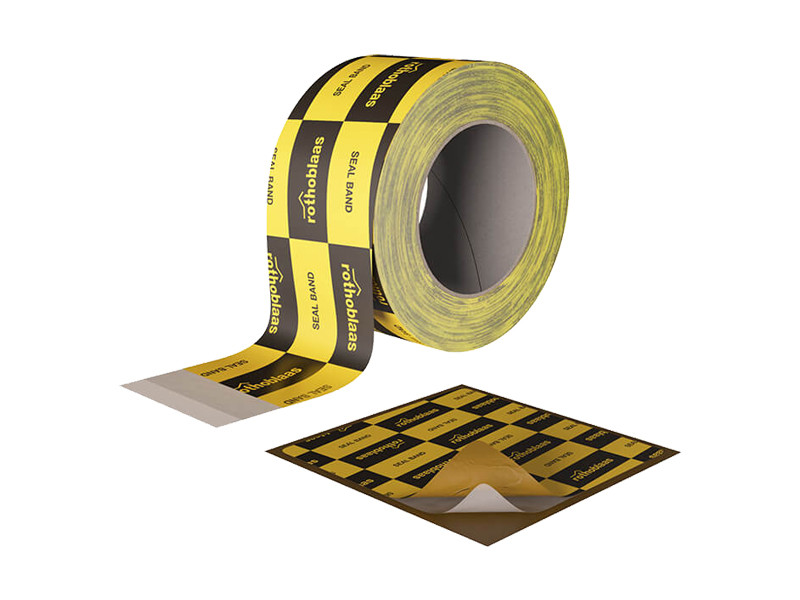

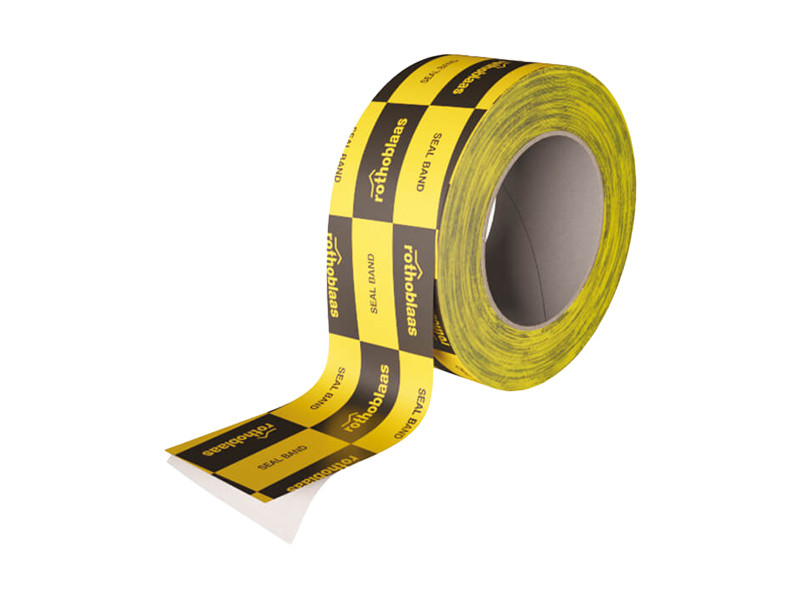

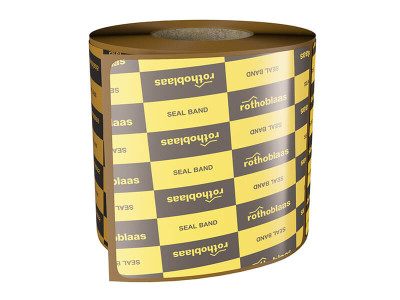

SEAL BAND | SEAL SQUARE

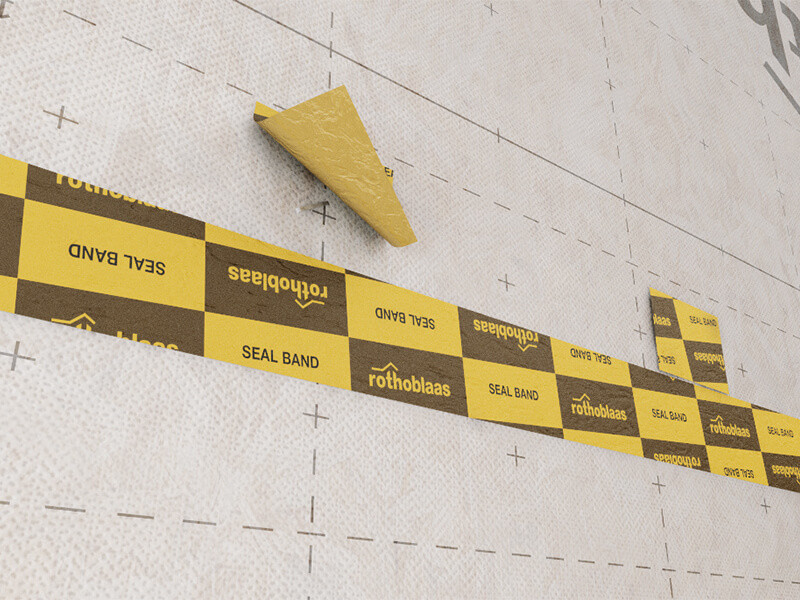

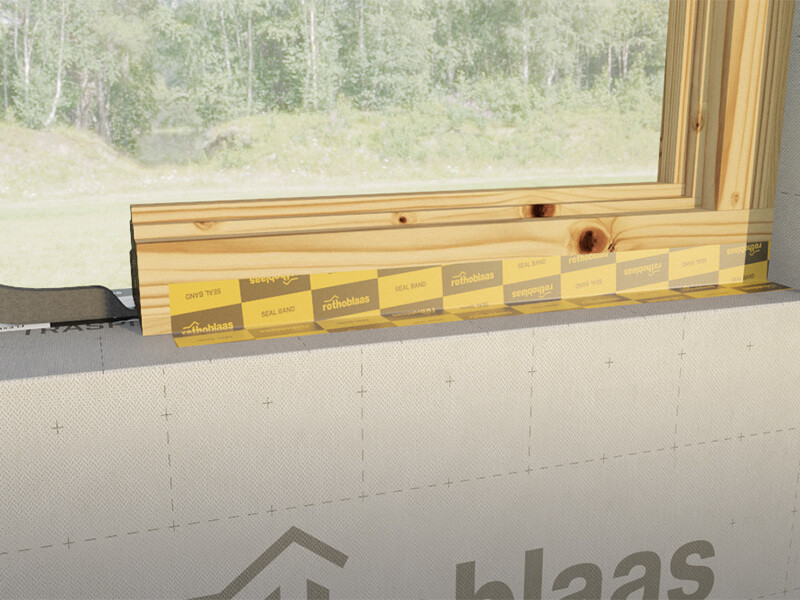

SEAL BAND is the acrylic tape that adheres effectively to all types of timber, for all types of sealing within the building envelope.

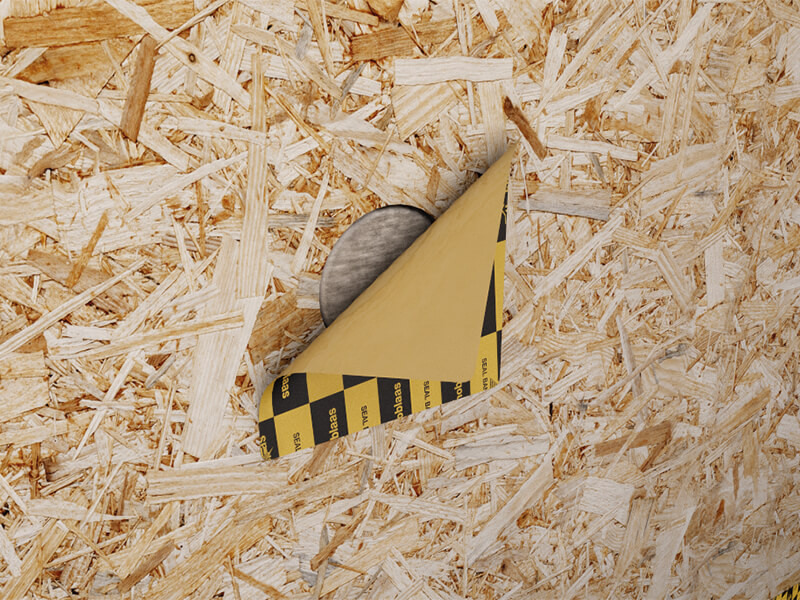

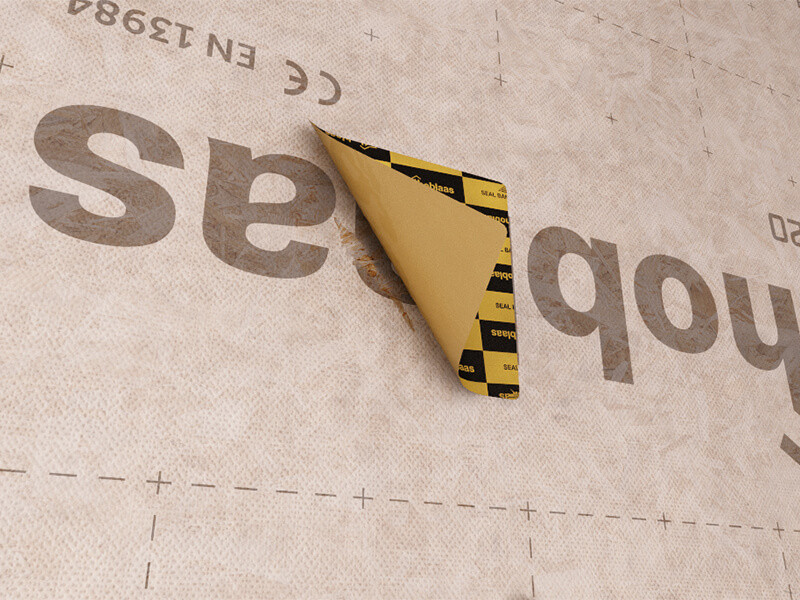

It is also available in the pre-cut SEAL SQUARE version with square shape, ideal for small spot seals or for the blowing technique, where precision is required.
Description
SEAL BAND, THE TAPE FOR INDOOR USE THAT SIMPLIFIES COMPLEX SEALING TASKS

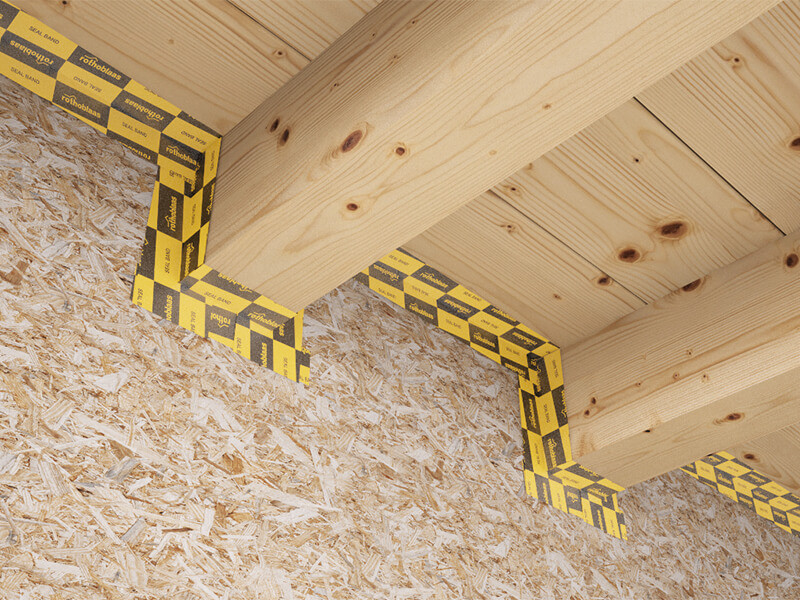

The pre-shapeable carrier allows efficient and agile sealing of concave or convex corners and edges. The SEAL BAND and SEAL SQUARE tapes for indoor use are available with pre-cut liner for quick and easy installation.
Reinforced paper support, ideal for indoor use; airtightness guaranteed over time. The SEAL BAND tape is part of Rothoblaas products tested by the PassiveHouse Institute as airtight certified components.
Documents
-
Technical data sheets
-
Passive House Certificate
-
Item specification
SEAL BAND
| CODE | liner | B
[mm]
|
L
[m]
|
liner
[in]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| SEAL60 | 60 | 60 | 25 | 2.4 | 2.4 | 82 | 10 |
| SEAL3030 | 30 / 30 | 60 | 25 | 1.2 / 1.2 | 2.4 | 82 | 10 |
| SEAL1248 | 12 / 48 | 60 | 25 | 0.5 / 1.9 | 2.4 | 82 | 10 |
SEAL SQUARE
| CODE | B
[mm]
|
H
[mm]
|
L
[m]
|
B
[in]
|
H
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| SEAL180 | 180 | 180 | 36 | 7.1 | 7.1 | 118 | 1 |
Technical Data SEAL BAND
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,33 mm | 13 mil |
| Adhesion | EN 1939 | ≥ 35 N/25mm | ≥ 7.99 lbf/in |
| Water vapour transmission (Sd) | EN ISO 12572 | 6 m | 0.583 US perm |
| VOC emissions | EN 16516 | < 5 μg/m³ | - |
| French VOC classification | ISO 16000 | A+ | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
| Thermal resistance | - | -40 / 100 °C | -40 / 212 °F |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Storage temperature (1 ) | - | 15 / 25 °C | 59 / 77 °F |
Technical Data SEAL SQUARE
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,33 mm | 13 mil |
| Adhesion | EN 1939 | ≥ 35 N/25mm | ≥ 7.99 lbf/in |
| Water vapour transmission (Sd) | EN ISO 12572 | 6 m | 0.583 US perm |
| VOC emissions | EN 16516 | < 5 μg/m³ | - |
| French VOC classification | ISO 16000 | A+ | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
| Thermal resistance | - | -40 / 100 °C | -40 / 212 °F |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Storage temperature (1 ) | - | 15 / 25 °C | 59 / 77 °F |
Composition SEAL BAND
| SUPPORT | paper reinforced with protective film |
|---|---|
| release liner | silicone coated paper |
| GLUE | acrylic dispersion without solvents |
Composition SEAL SQUARE
| SUPPORT | paper reinforced with protective film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| release liner | silicone coated paper |
