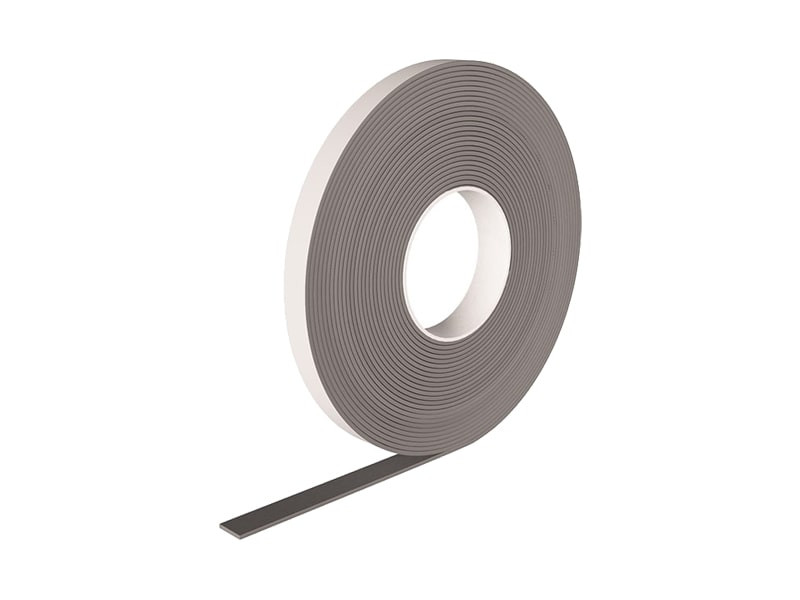

FIRE STRIPE
INTUMESCENT THERMO-INFLATABLE FLEXIBLE GASKET
FIRE STRIPE is the flexible gasket that swells under the effect of strong heat: as it expands, it seals the cavity in which it is positioned, blocking the passage of flames. Installable in tight spaces, it is perfect for the fire protection of our concealed fastening systems.
FIRE STRIPE, the flexible intumescent gasket that provides fire protection for your joints
Description
FIRE STRIPE intumescent profile has good resistance to UV and thermal stress, and is not subject to rotting: durability is guaranteed. It is an adhesive tape, which can be applied quickly and without any support tools.
Documents
-
Technical data sheets
FIRE STRIPE
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| FIRESTRIPE10 | 10 | 2 | 6 | 0.4 | 79 | 20 | 1 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Colour | - | grey | - |
| Reaction to fire | NF P92-501 | m1 | - |
| Reaction to fire | EN 13501-1 | classe B-s3,d0 | - |
| French VOC classification | ISO 16000 | A+ | - |
| Application temperature | - | 5 / 35 °C | 41 / 95 °F |
| Storage temperature (1 ) | - | 1 / 25 °C | 34 / 77 °F |
1. Store the product in a cool, dry place for no more than 12 months.
Composition
| SUPPORT | - |
|---|---|
| GLUE | acrylic dispersion without solvents |
| release liner | silicone coated paper |
