ALU BAND
REFLECTIVE SINGLE-SIDED ADHESIVE TAPE FOR INDOOR USE
ALU BAND is a single-sided reflective tape for indoor use that provides thermal resistance up to 130°C.
It is a versatile tape applicable on thermo-hydraulic structures thanks to its high thermal reflectance and the glue that guarantees excellent adhesion.
Description
ALU BAND REFLECTIVE TAPE: OPTIMAL SEALING OF THERMO-HYDRAULIC STRUCTURES IN COMBINATION WITH BARRIER ALU PRODUCTS

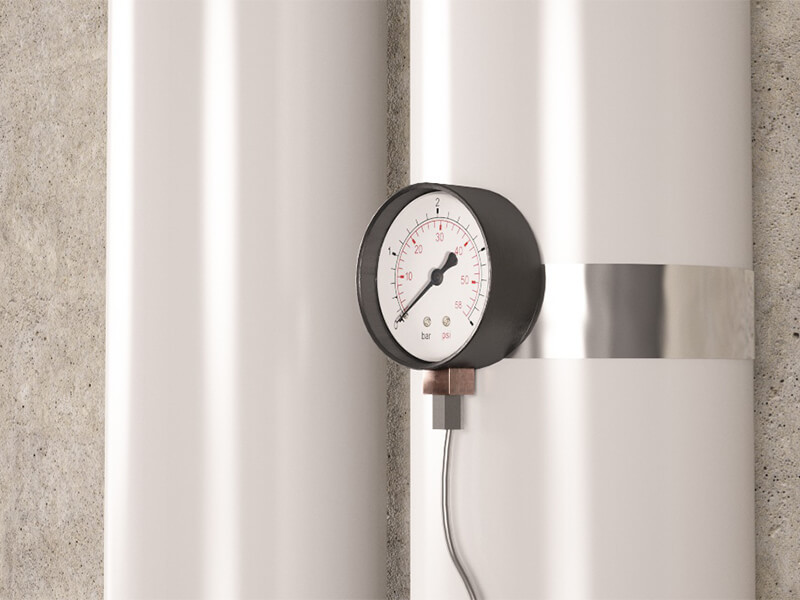

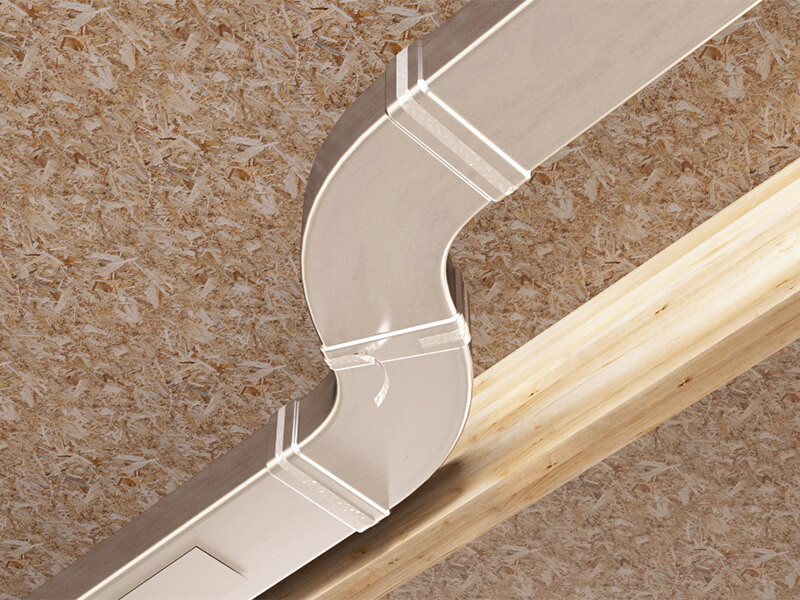

The ALU BAND aluminised tape is provided with aluminium carrier that offers very high vapour protection and watertightness; it is ideal in combination with the BARRIER ALU line and in plant engineering applications.
Documents
-
Technical data sheets
ALU BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| ALUBAND50 | 50 | 50 | 2 | 164 | 24 |
| ALUBAND75 | 75 | 50 | 3 | 164 | 18 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | EN 1942 | 0,06 mm | 2.4 mil |
| Tear strength | EN 14410 | > 25 N/cm | > 14.28 lbf/in |
| Expansion capacity at | EN 14410 | > 5 % | - |
| Adhesion | DIN EN 1939 | > 8 N/cm | > 4.57 lbf/in |
| Water vapour transmission (Sd) | EN 1931 | ca. 100 m | ca. 0.035 US perm |
| Watertightness | - | conforming | - |
| Reaction to fire | DIN 4102-1 | class B1 | - |
| Solvents | - | no | - |
| Thermal resistance | - | -40 / 130 °C | -40 / 266 °F |
| Application temperature | - | ≥ -10 °C | ≥ 14 °F |
| Storage temperature (1 ) | - | 15 / 30 °C | 59 / 86 °F |
1. Store the product in a cool, dry place for no more than 12 months.
Composition
| SUPPORT | aluminium film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| release liner | silicone coated paper |
