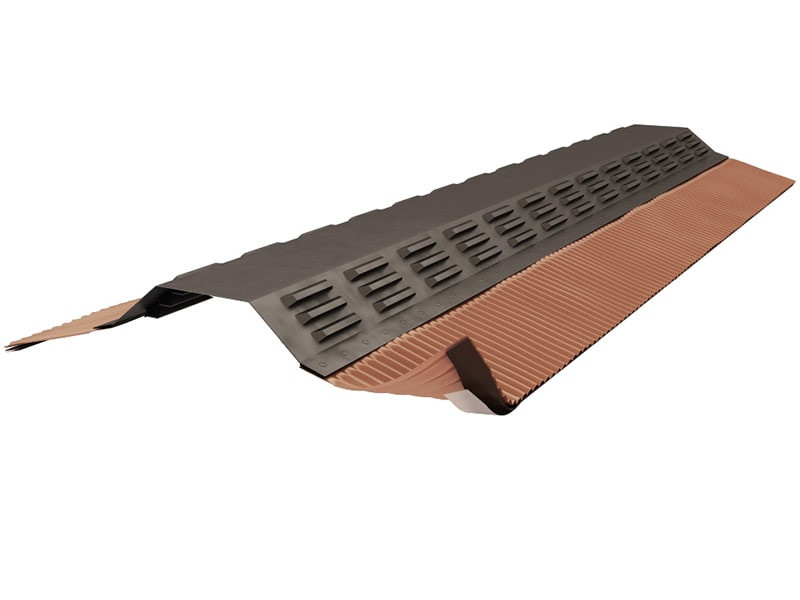

PEAK EASY
VENTILATED RIGID RIDGE ROLL
PEAK EASY, the rigid ventilated under-ridge, acts as a connection between the tiles and the ridge, ensuring the outflow of air while preventing water infiltration.
Description
PEAK EASY, the ventilated under-ridge which is quick to install and provides excellent UV stability.
The choice of metal material ensures excellent UV stability of the rigid under-ridge, even in harsh climate zones. Installation is quick and easy: PEAK EASY adapts to any ridge line. Each element is one metre long and 40 cm wide.
Documents
-
Technical data sheets
PEAK EASY
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|
| PEAKEASY400 | 400 | 1 | 15.7 | 3 | ALUMINIUM | 8004 | 8004 | 20 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Canopy width | - | 160 mm | 6.3 in |
| Butyl tape width | - | 15 mm | 0.6 in |
| Air passage | - | > 230 cm²/m | - |
| Strap elongation | - | 40 % | - |
| Butyl tape thermal resistance | - | -30 / 80 °C | -22 / 176 °F |
| Application temperature | - | 5 / 30 °C | 41 / 86 °F |
| UV resistance (aluminium straps) | - | permanent | - |
| Water tightness (when installed under tiles) | - | conforming | - |
| Storage temperature | - | 0 / 25 °C | 32 / 77 °F |
