SELF-ADHESIVE VAPOUR BARRIER WITH REINFORCEMENT GRID
BARRIER NET ADHESIVE 200

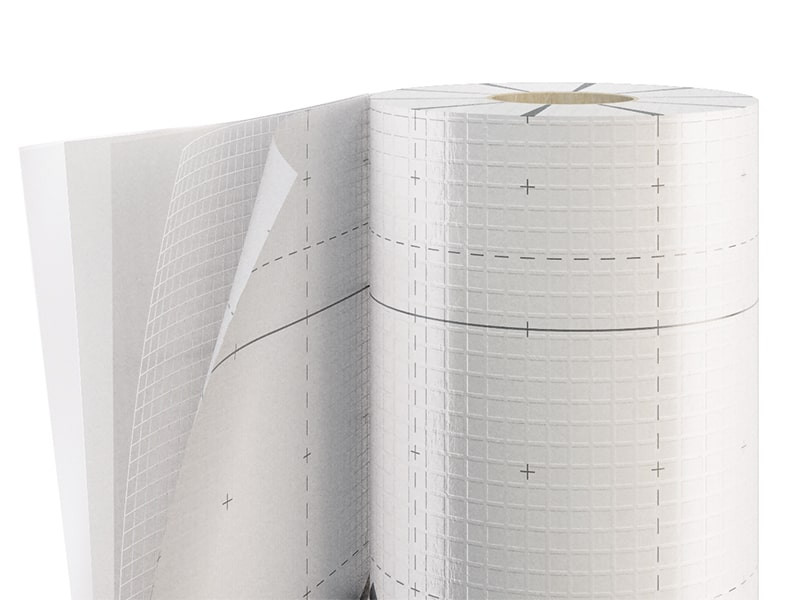

BARRIER NET ADHESIVE 200 is a self-adhesive vapour barrier with reinforcement mesh that provides high mechanical strength and reduces the risk of slipping.
Videos
The fully self-adhesive surface allows fast and safe installation without compromising performance.

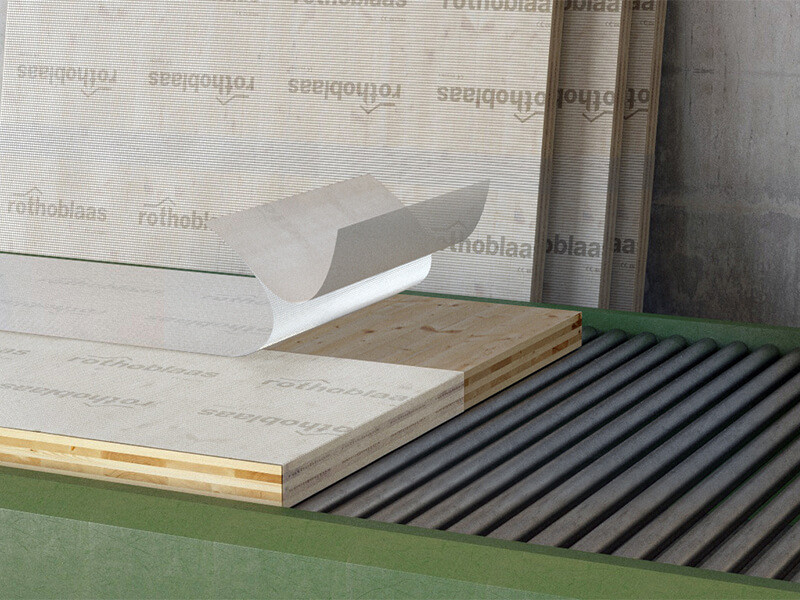

BARRIER NET ADHESIVE 200, THE SELF-ADHESIVE VAPOUR BARRIER THAT PROVIDES PROTECTION DURING CONSTRUCTION WORK During construction, it is essential to protect the structure, especially if the architectural design foresees that the wood remains visible in the finished building; BARRIER NET ADHESIVE 200 offers excellent protection.
Documents
Technical data sheets
|
|---|
BARRIER NET ADHESIVE 200
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| BARA200 | - | - | - | - | - | - | - | - | 30 |
| BARAS200 | - | - | 0.36 | 50 | 18 | 1' 2 1/8'' | 164 | 194 | 48 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 200 g/m² | 0.66 oz/ft² |
| Thickness | EN 1849-2 | 0,3 mm | 12 mil |
| Water vapour transmission (Sd) | EN 1931 | 47 m | 0.074 PERM |
| Water vapour transmission (wet cup) | ASTM E96/ E96M | 0.1 PERM | - |
| Tensile strength MD/CD | EN 12311-2 | > 220 / 190 N/50mm | > 25 / 22 lb/in |
| Elongation MD/CD | EN 12311-2 | > 15 / 15 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | > 155 / 145 N | > 35 / 33 lbf |
| Watertightness | EN 1928 | conforming | - |
| Thermal resistance | - | -20 / 80 °C | -4 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | > 0,02 m³/(m²·h·50Pa) | > 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,4 W/(m·K) | 2.77 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | 667 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 157000 | - |
| Exposure to weather | - | 2 weeks | - |
| Adhesion strength on proper support at 180° | EN 12316-2 | 34 N/cm | 0.001941 lb/in |
| Storage temperature | - | 5 / 25 °C | - |
| Application temperature | - | -5 / 35 °C | 23 / 95 °F |
| Solvents | - | no | - |
Specifications
Supply and installation of self-adhesive vapour barrier screen with reinforcing mesh, type BARRIER NET ADHESIVE 200
CE marking according to :
Property:
–Water vapour trasmission (Sd) (m) :
–Maximum tensile force MD/CD (N/50mm) :
–Elongation MD/CD (%) :
–Resistance to tearing MD/CD (N) :
–Watertightness (class) :
–VOC emission (COV) (%(class A+)) :
–Temperature resistance (°C) :
–Reaction to fire (class) :
Indicazioni di posa per: TETTO
BARRIER NET ADHESIVE 200 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 215.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Indicazioni di posa per: PARETE
BARRIER NET ADHESIVE 200 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 215 or in the case of rough surfaces (such as rough OSB) Insert TRADUCTION from IT FLEXI BAND, PRIMER SPAY, PRIMER .
Composition
| top layer | PE functional film |
|---|---|
| middle layer | PE reinforcing grid |
| bottom layer | PE functional film |
| Adhesive layer | acrylate dispersion without solvents |
| release liner | removable plastic film |
